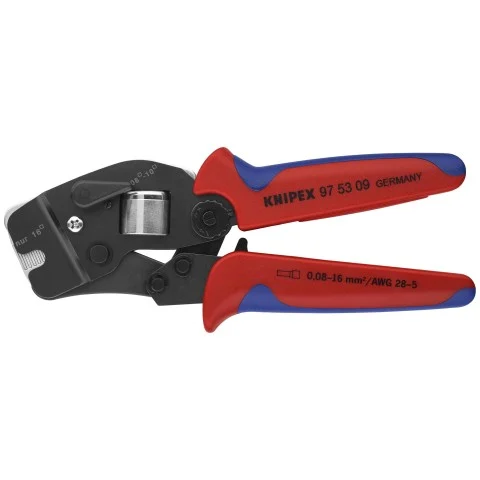

7 1/2" Self-Adjusting Crimping Pliers For Wire Ferrules

97 53 09

•  Self-adjusting crimping pliers for end sleeves (ferrules) with front loading
•  For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
•  Crimping from 28 to 8 and 6 AWG (0.08 - 10.0 and 16.0 mm²) in one profile; with selector lever for setting the crimping area either to 28 - 8 and 6 AWG (0.08 - 10 mm² or 16 mm²); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm² or 2 x AWG 8
•  Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die
•  Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
•  Crimping pressure has been set precisely (calibrated) in the factory
•  Optimum transmission of force due to toggle lever for fatigue-reduced operation
•  High operation comfort thanks to handy shape and low weight
•  Chrome vanadium electric steel in special quality, oil-hardened
•  Pliers burnished
•  Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8

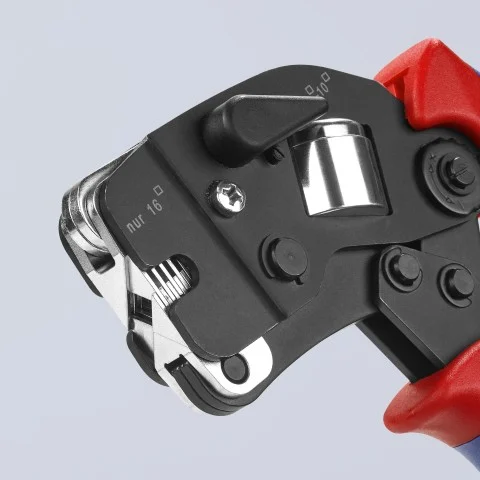

•  With selector lever for setting the crimping area either to 7 to 28 or 5 AWG (0.08 - 10 mm² or 16 mm²)
•  Handles with multi-component covers

Technical details

• Part Number: 97 53 09
• UPC: 843221006204
• Country of Origin: Germany
• Length: 7 1/2"
• Width: 2 7/8"
• Height: 1"
• Weight: 1.075 lbs.
• 1000 Volt Insulated: No
• Spring Loaded: Yes
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Black-oxide
• Other Surface Finish: Burnished
• Crimping Profile: Automatic square crimp
• Crimping Positions: 1
• Reach: contains SVHC
• RoHS: not applicable
