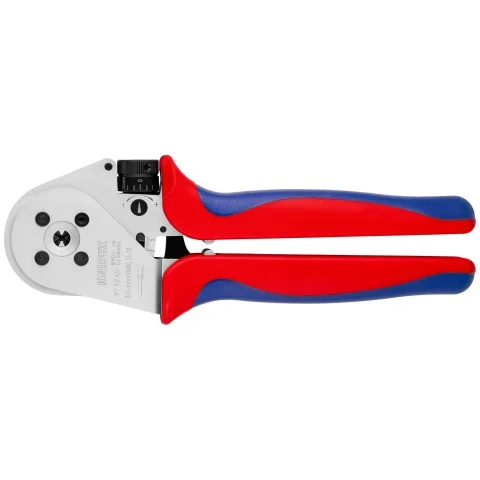

9" Crimping Pliers - Four-Mandrel For Turned Contacts

97 52 65

•  Four mandrel crimping pliers for turned contacts
•  For crimping turned contacts
•  Capacity - 0.14 to 6 mm² (26 to 10 AWG)
•  Four-mandrel crimping for top-quality crimping connections
•  Mandrel gauge to check the basic setting
•  Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
•  Optimum transmission of force due to highly effective lever action for fatigue-reduced operation
•  Comfortable multi-component grips
•  Fine adjustment of pressure depending on the conductors diameter by means of adjusting wheel; locator for positioning the contacts; with table for calculating the settings; pliers in a plastic case with foam insert
•  Chrome vanadium electric steel in special quality; oil-hardened

Technical details

• Part Number: 97 52 65
• UPC: 843221015923
• Country of Origin: Germany
• Length: 9"
• Width: 3"
• Height: 1 3/4"
• Weight: 1.5 lbs.
• 1000 Volt Insulated: No
• Spring Loaded: Yes
• Material Type: Chrome vanadium electric steel, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Chrome Plated
• Crimping Profile: Four-Mandrel crimp
• Crimping Positions: 1
• Color: Red/Blue
• Reach: contains SVHC
• RoHS: not applicable

Warnings:

• Do not use on live circuits. Always switch off power.
• Always wear approved eye protection.

Note: Technical changes and errors reserved.
