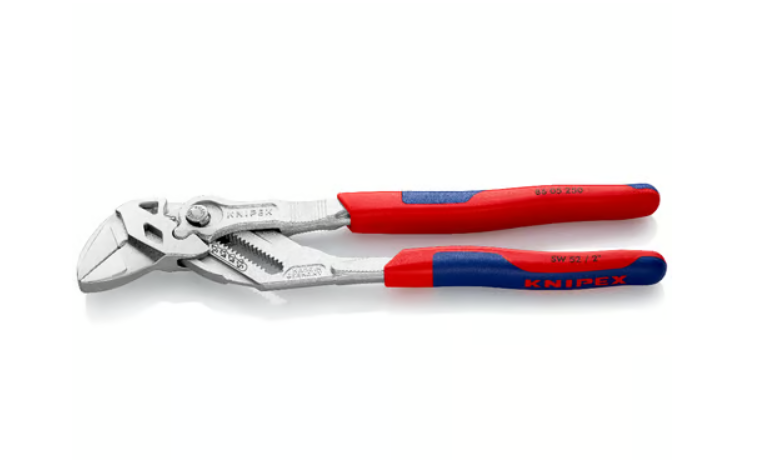

10" Pliers Wrench

86 05 250

•  Replaces the need for sets of metric and imperial spanners
•  Smooth jaws for damage free installation of plated fittings - working directly on chrome!
•  Great for gripping, holding, pressing and bending workpieces
•  Zero backlash jaw pressure prevents damage to edges of sensitive components
•  Fast adjustment by pushing a button directly on the workpiece
•  No unintentional shift of the gripping jaws and no slipping of the joint
•  Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
•  The ratchet type principle allows quick and easy tightening and release of all bolted connections
•  High lever transmission for strong gripping power

Technical attributes

• Part Number: 86 05 250
• UPC: 843221003098
• Country of Origin: Germany
• Length: 10"
• Width: 2 3/8"
• Height: 1"
• Weight: 1.259 lbs.
• 1000 Volt Insulated: No
• Material Type: Chrome vanadium electric steel, forged, oil-hardened
• Handle Type: Slim multi-component
• Gripping Surface: Smooth
• Surface Finish: Chrome Plated
• Joint Type: Box-joint
• Number of Adjustment Positions: 19
• Jaw Thickness: 5/16"
• Tip Thickness: 5/16"
• Max Jaw Opening - Hex: 2"
• Max Jaw Opening - Working Capacity: 2"
• Color: Red/Blue
• Reach: does not contain SVHC
• RoHS: not applicable

Pliers and wrench in a single tool

The Knipex pliers wrench 86 05 250 – for classic applications such as plumbing

The pliers wrench combines many functions: It replaces an entire set of wrenches in metric and imperial sizes, can be adjusted very quickly and directly on the workpiece at the touch of a button, as well as handling all gripping widths up to 52 mm or 2 inches thanks to infinite adjustment. The joint pin engages securely, preventing unintentional shifting. The smooth gripping jaws are parallel to each other and grip the workpiece without damaging edges or sensitive surfaces – work directly on chrome!

Brief overview

• Screws, grips, holds, bends and presses
• Replaces a full set of wrenches
• Grips continuously up to 52 mm or 2 inches
• Protects sensitive surfaces
• 10-fold manual force amplification
• Direct working on chrome, brass, etc.
• Fast adjustment on the workpiece at the touch of a button
• Chrome vanadium heavy-duty steel, oil hardened

The KNIPEX pliers wrench

10-fold amplification of manual force: The excellent mechanics of the pliers wrench increases the applied manual force 10 times. It holds workpieces securely like a vice. Even flat objects can be gripped and processed easily thanks to the high pressing force and the parallel jaws.

Documents

• Download product data sheet

Warnings:

• Do not use on live circuits. Always switch off power.
• Always wear approved eye protection.

Note: Technical changes and errors reserved.
