74 01 250

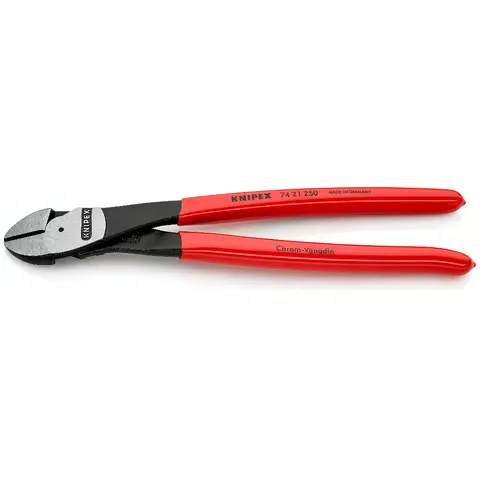

10" High Leverage Diagonal Cutters

•  20% less effort required compared to conventional diagonal cutters of the same length
•  Forged-on axle for heavy-duty work
•  For very tough, continuous use
•  High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
•  Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
•  10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
•  Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened

Technical details

• Part Number: 74 01 250
• UPC: 843221005023
• Country of Origin: Germany
• Length: 10"
• Width: 2"
• Height: 3/4"
• Weight: 0.9 lbs.
• 1000 Volt Insulated: No
• ESD Indicator: No
• Spring Loaded: No
• Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
• Handle Type: Plastic coating
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• Joint Type: Forged-in axle
• Cutting Capacity - Piano Wire: 1/8"
• Cutting Capacity - Hard Wire (Steel Wire): 9/64"
• Cutting Capacity - Medium Hard Wire (Nail): 3/16"
• Cutting Edge Shape: Bevel
• Color: Red
• DIN: DIN ISO 5749
• Reach: does not contain SVHC
• RoHS: not applicable
