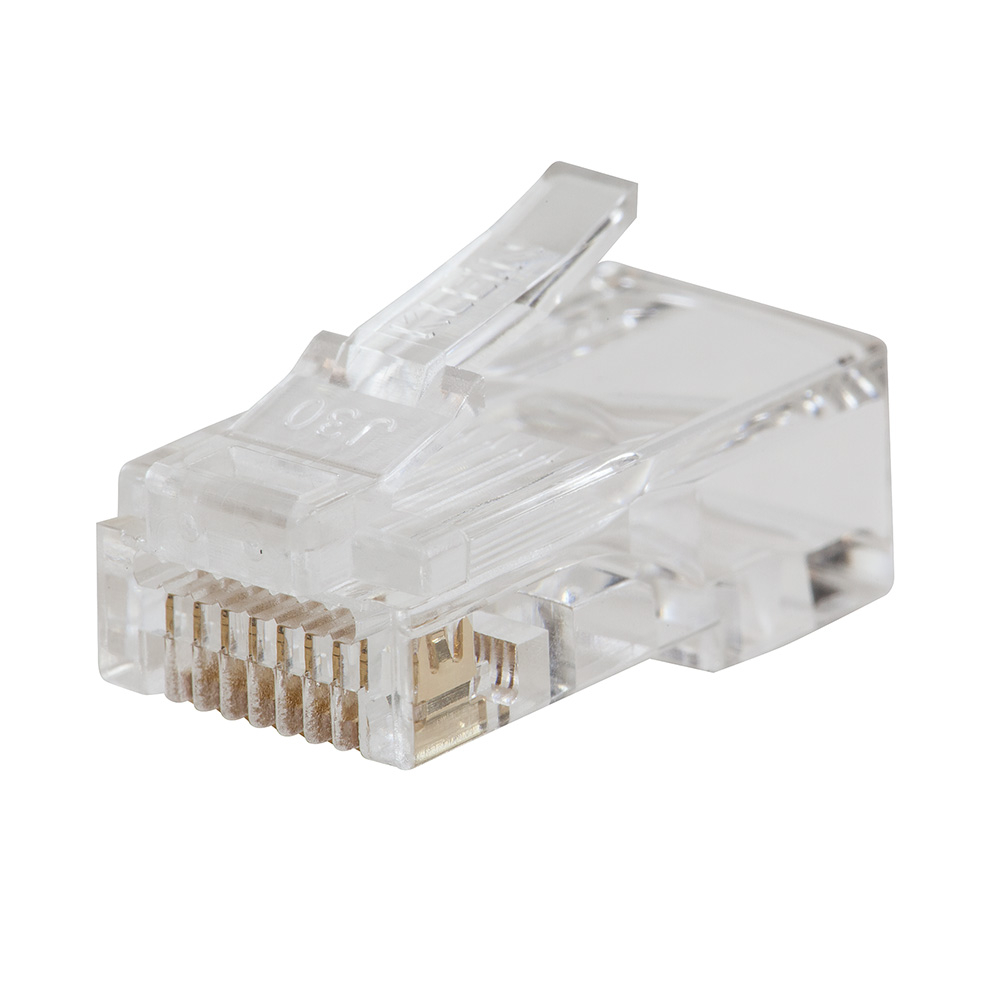

Klein Pass-Thru™ Modular Data Plugs RJ45-CAT6, 10-Pack (VDV826-729)
SKU: VDV826-729
- Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
- CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
- 50 µ-inch minimum gold plating on all contact surfaces
- Fully compliant with Power Over Ethernet (PoE and PoE+) standards
- Category 6 performance per EIA/TIA B.2.and RoHS compliant
- For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
- 10-Pack
- 8 position, 8 contact Pass Through style data plug for solid or stranded cable
VDV826-729
Pass-Thru™ Modular Data Plugs RJ45-CAT6, 10-Pack
Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.
Specifications
- Package Quantity: 10
- Application: Voice and Data
- Stranded Conductor Wire: Yes
- Material: PVC Plastic; Gold Plated Contacts
- Connector Type: RJ45
- Solid Conductor Wire: Yes
- Position & Contacts: 8P 8C
- Cable Type: CAT6
- Connector Color: Clear
- Type: Modular
- Special Features: Pass-Thru Technology; Meets All PoE Standards
- Size_Name: Quantity - 10 Connectors
- Overall Width: 0.094 in (0.2 cm)
- Overall Height: 0.453 in (1.2 cm)
- Overall Length: 0.875 in (2.2 cm)
- Weight: 0.0617 lb
- UPC: 092644690921
Additional Information
Warnings
- Do NOT use on energized circuits or cabling systems
| Brand | Klein Tools |
