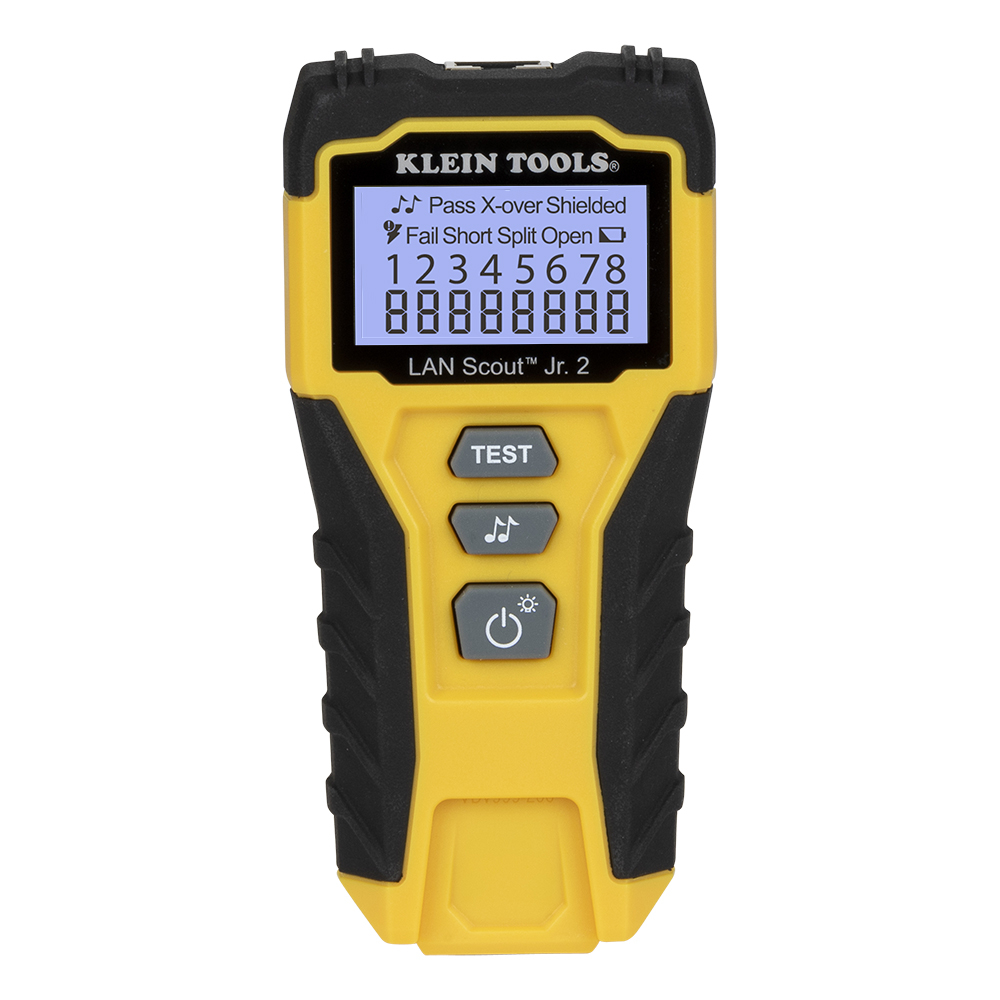

Klein Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote (VDV526-200)

Price:

$ 59.97

Klein Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote (VDV526-200)
  2. Shop
  3. Klein Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote (VDV526-200)
Klein Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC (NCVT-3P)
Klein Dual Range Non-Contact Voltage Tester with Flashlight, 12 to 1000V AC (NCVT-3P)
$ 29.97
$ 29.97
Klein Flame-Resistant Electrode Bag (5471FR)
Klein Flame-Resistant Electrode Bag (5471FR)
$ 33.92
$ 33.92

Klein Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote (VDV526-200)

https://www.etisupply.com/web/image/product.template/1119485/image_1920?unique=7d2782a

SKU: VDV526-200

  • Cable tester for data (RJ45) terminated cables and patch cords
  • Large backlit LCD for low lit areas displays pin to pin wiremap results
  • Test for Open, Short, Miswire or Split-Pair faults, Cross-over and Shield
  • Intuitive user interface features three buttons with simple, easy-to-identify test responses
  • Tone on single wire, wire pair or all 8 conductor wires
  • Multiple style tone generator (solid / warble); requires probe Cat. No. VDV500-123 (sold separately)
  • Auto Power-Off feature; 10-minutes in test mode, 60-minutes in tone mode
  • Soft, slip-resistant, rugged overmold for easy gripping and durability
  • Replaceable 2 x AAA batteries (included)
  • Replaceable self-storing remote (included)

$ 59.97 59.97 USD $ 59.97 $ 90.00

Not Available For Sale

($ 59.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

VDV526-200

Ethernet Cable Tester Kit, LAN Scout® Jr. Cable Tester, RJ45 Remote

The LAN Scout® Jr. 2 Cable Tester tests installed or loose data (CAT 5e, CAT 6/6A) cables terminated with RJ45 connectors. It also, tones cables with multiple tone frequencies. The larger display is backlit for easier reading in low lit areas. This model uses 2 x AAA batteries (included). Three buttons provide an intuitive user interface.

Specifications

  • Multiple Style Tone Generator: Yes
  • Test & Measure Types: Data, RJ45
  • Standard: —
  • Special Features: Backlit LCD
  • Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, Split Pair and Shield
  • Drop Protection: 2' (0.6 m)
  • Supported Remotes: (1) Self-Storing
  • Included: Tester, Remote, 2 × AAA Alkaline Batteries
  • Location ID: No
  • Application: Cable Testing
  • Connection & Adapter Types: RJ45
  • Battery Life: Active: 80 hr; Standby: 3 yr.
  • Type: DATA, Voice, LAN
  • Display: LCD
  • Batteries: 2 × AAA Alkaline
  • Test-n-Map ID Remotes: 1
  • Material: Plastic and Stamped Metal
  • Cable Type: Shielded or Unshielded; Cat7, Cat6/6A, Cat5E, Cat3
  • Style: Tester
  • Battery Type: Alkaline
  • Accuracy: —
  • Weight: 0.27 lb
  • Overall Width: 6.4 cm
  • Overall Height: 2.5 cm
  • UPC: 092644583544

Additional Information

Warranty
Compliance

Warnings

  • Always wear approved eye protection.
  • Read all safety Information before using the product.
  • Carefully read all instructions.
  • Do NOT connect to live AC power.
  • For indoor use only.

Brand Klein Tools
