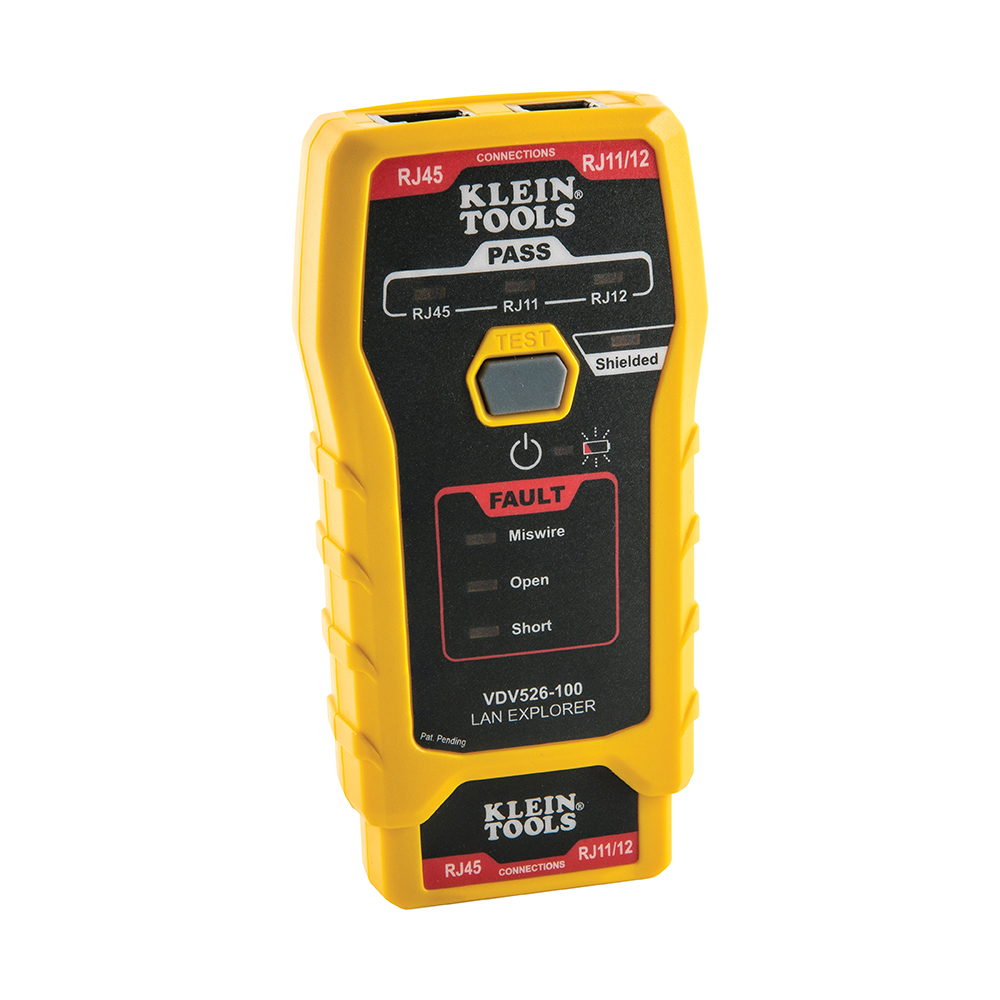

Network Cable Tester, LAN Explorer® Data Cable Tester with Remote

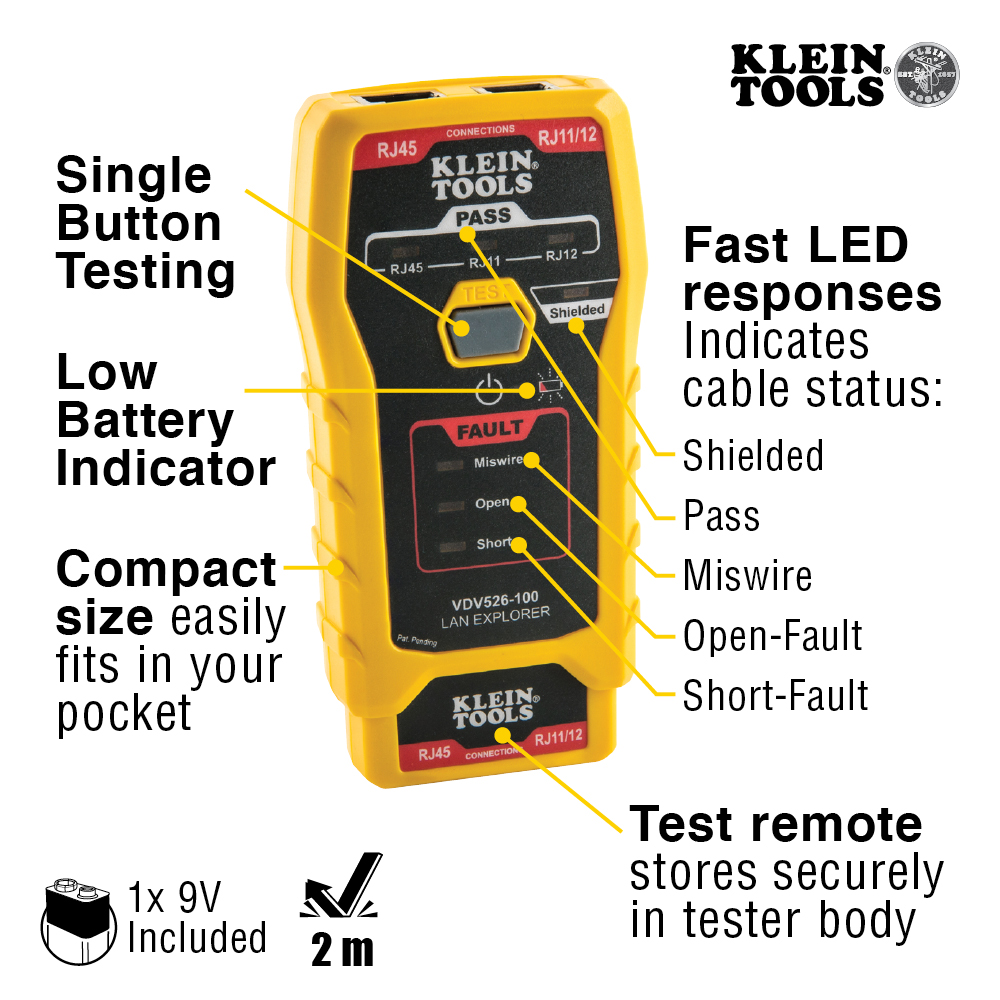

• Cable tester with single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
• Tests CAT3, CAT5e and CAT6/6A cables
• Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

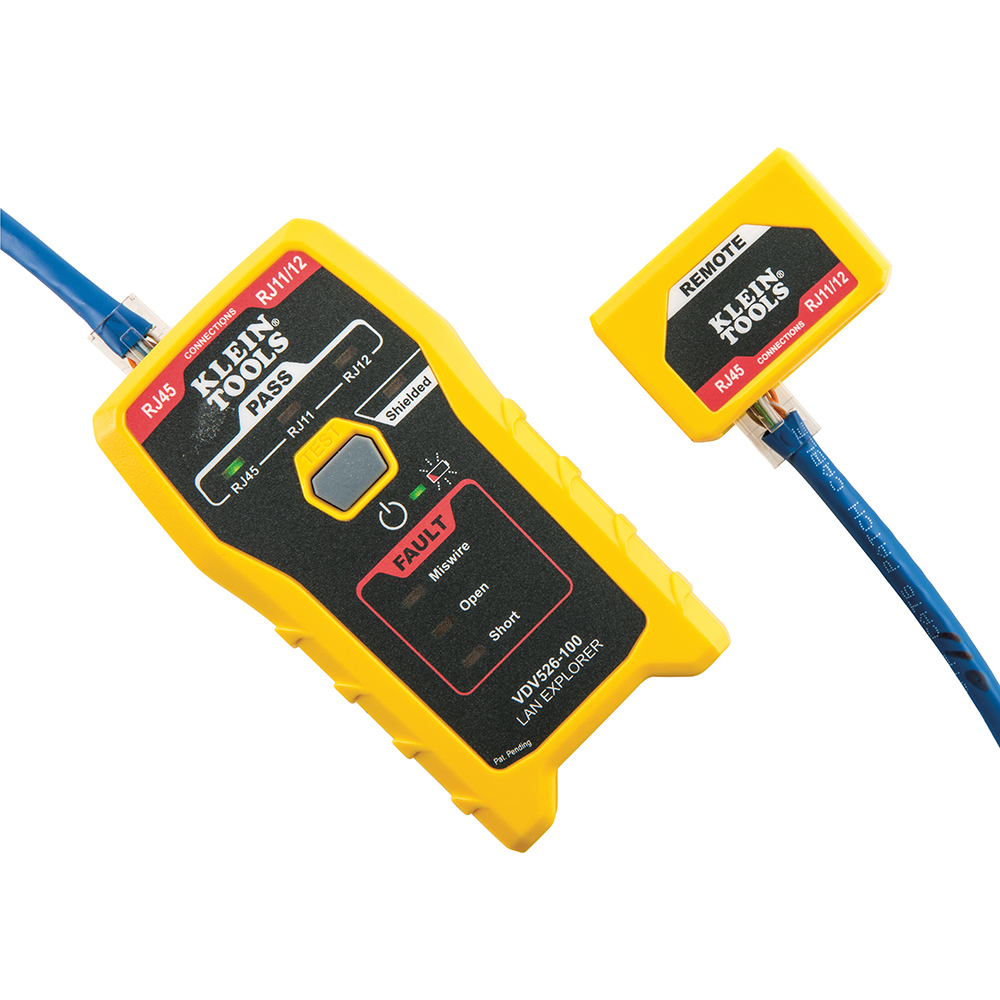

• Test remote stores securely in tester body
• Compact tester easily fits in your pocket
• Auto Power-off feature to conserve battery life (9V included)
• Low battery indicator
• Replacement remote (VDV999-150) available (sold separately)

This simple, compact data cable tester for RJ11, RJ12 and RJ45 terminated voice and data cables for Miswires, Open-Faults, Short-Faults and Shield. Instant LED responses indicate cable status. The test remote stores securely in the tester body. The Auto Power-Off feature shuts the tester down automatically to save the 9V battery (included).

Specifications

• Type: Twisted Pair, DATA, Voice, LAN
• Application: Cable Testing to 1000' (305 m)
• Special Features: LED response
• Cable Type: CAT3, CAT5e, CAT6/6A
• Overall Length (Inch): 5
• Overall Length (cm): 12.7
• Overall Height (Inch): 1.25
• Overall Height (cm): 3.2
• Overall Width (Inch): 2.5
• Overall Width (cm): 6.4
• Material: Plastic and Stamped Metal
• Test-n-Map ID Remotes: 1
• Batteries: 1 x 9V
• Battery Life: Active: 80 hr; Standby: 3.5 yr.
• Drop Protection: 2' (0.6 m)
• Supported Remotes: VDV999150
• Connection & Adapter Types: RJ11, RJ12, RJ45
• Display: LED
• Multiple Style Tone Generator: No
• Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
• Test & Measure Types: Voice, Data, RJ45, RJ11
• Included: Tester, Remote, 9V Battery
• Weight (oz): 4
• Weight (g): 113
• UPC: 092644692246

Additional Information

Warnings

• Always wear approved eye protection.
• Read all safety Information before using the product.
• Carefully read all instructions.
• Designed for use on unpowered/dark cable systems.
• Do NOT connect to live AC power.
