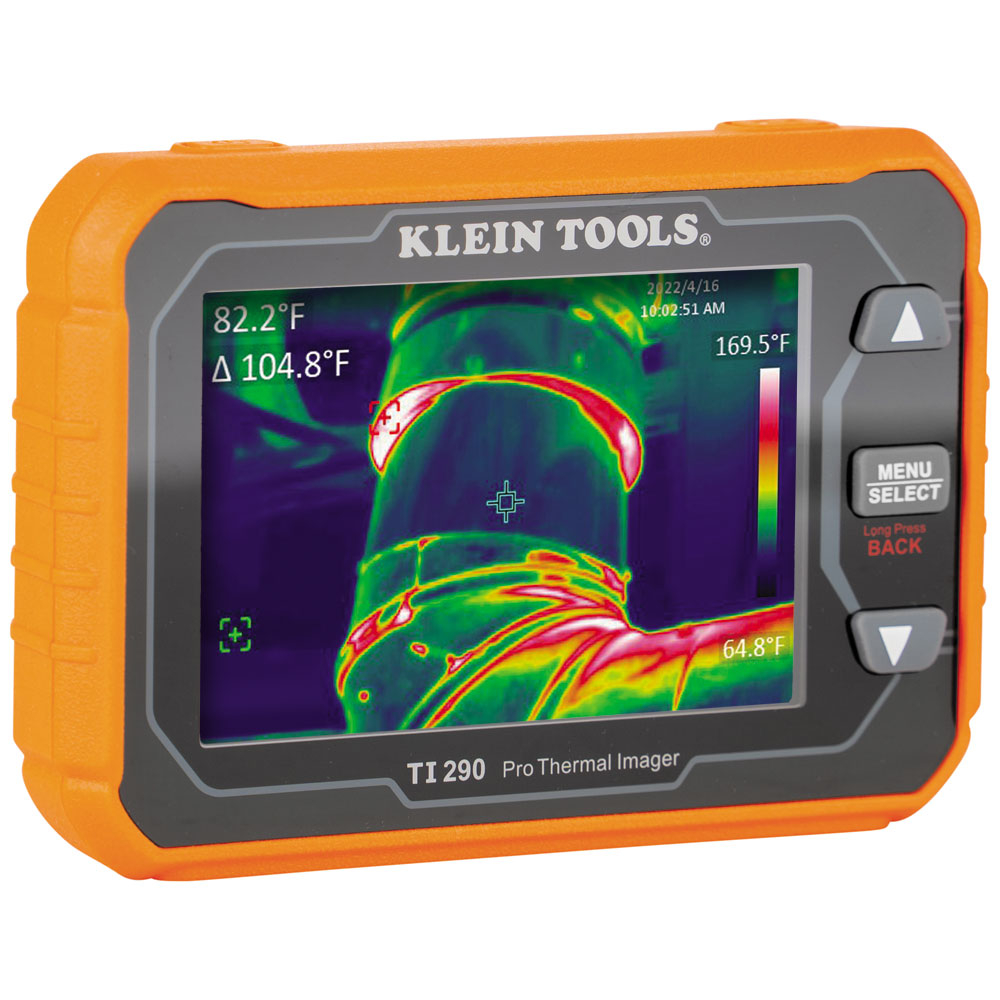

Klein Rechargeable Pro Thermal Imaging Camera, 76,800 Pixels, Wi-Fi Data Transfer (TI290)

https://www.etisupply.com/web/image/product.template/1119406/image_1920?unique=44c55c5

SKU: TI290

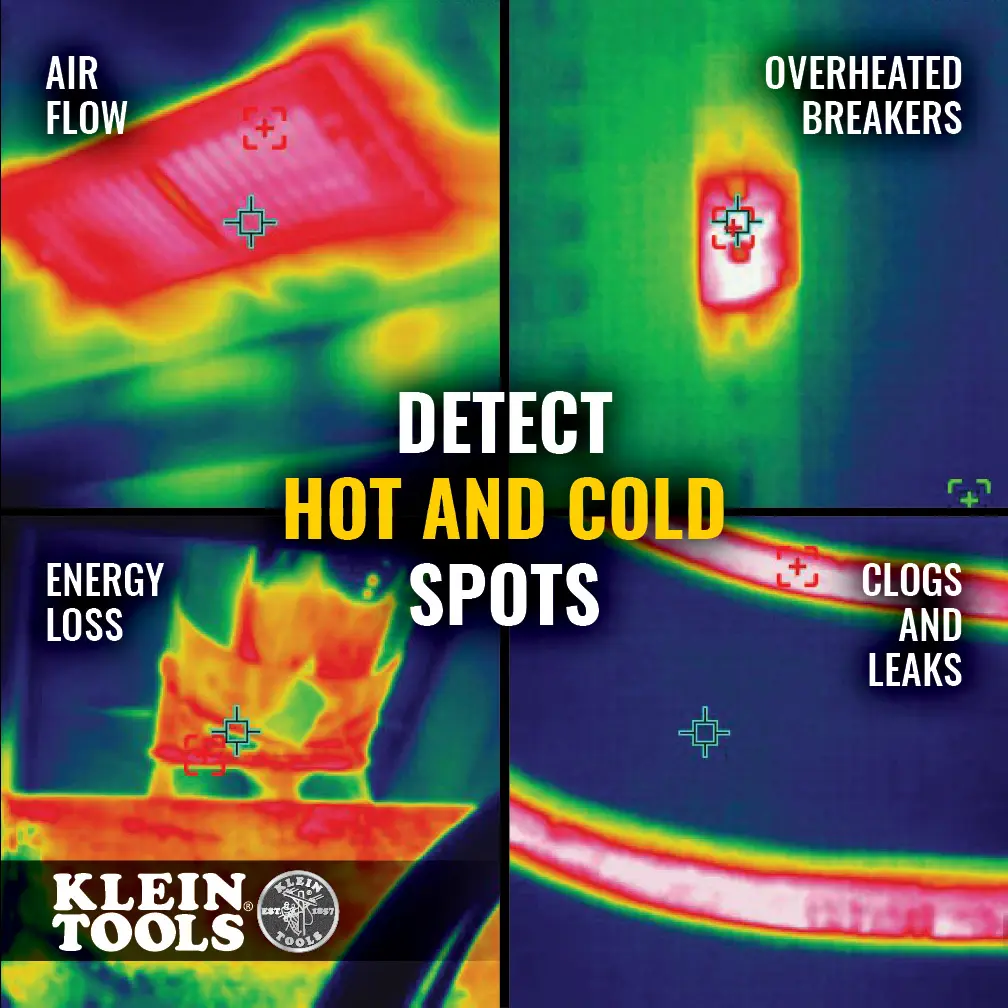

  • Thermal Imager has over 76,800 pixels to troubleshoot hot and cold spots
  • Easily capture, store and share thermal images with Wi-Fi capabilities
  • User selectable high and low temperature alarms from -40 to 752-Degree Fahrenheit (-40 to 400-Degree Celsius)
  • Adjustable emissivity from 0.01 to 0.99
  • Select color palettes to best capture the event; ironbow, rainbow, or grayscale

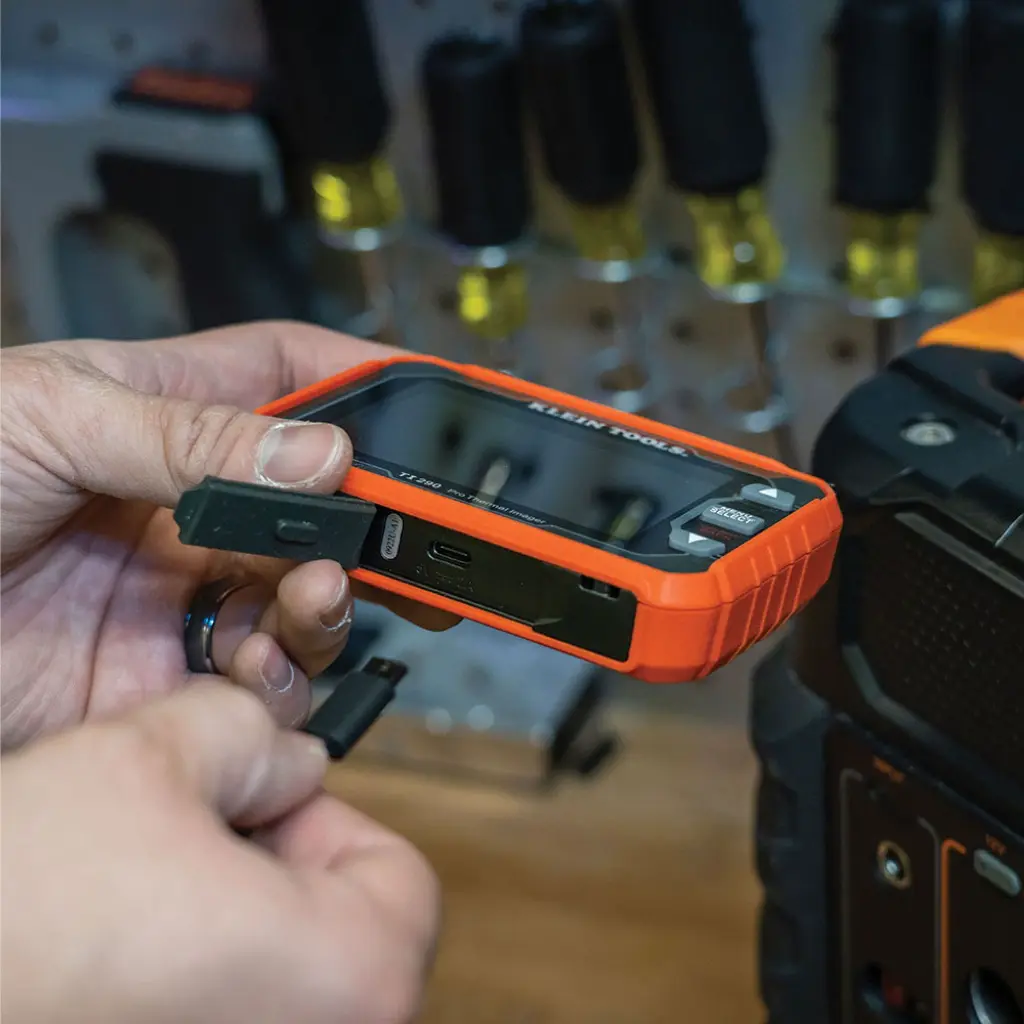

  • Rechargeable lithium-ion battery
  • App is available for free in Google Play™ store and in the App Store

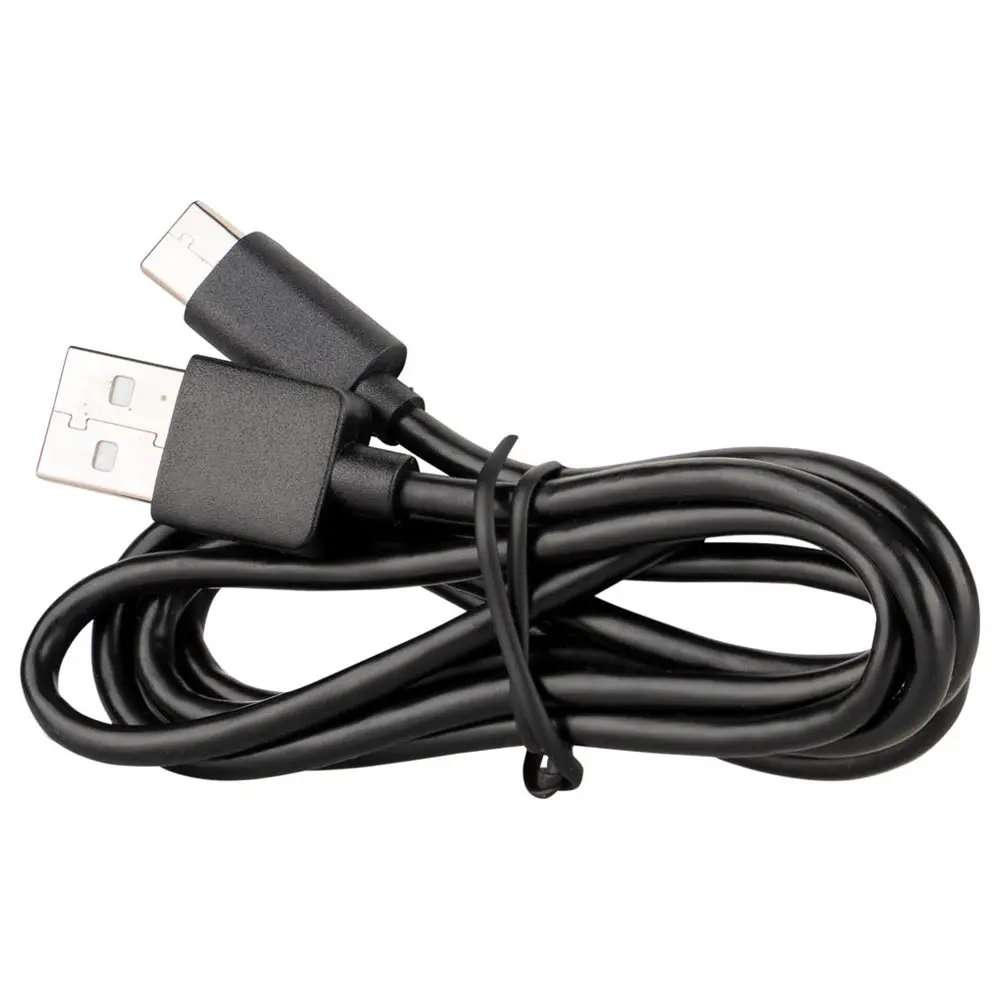

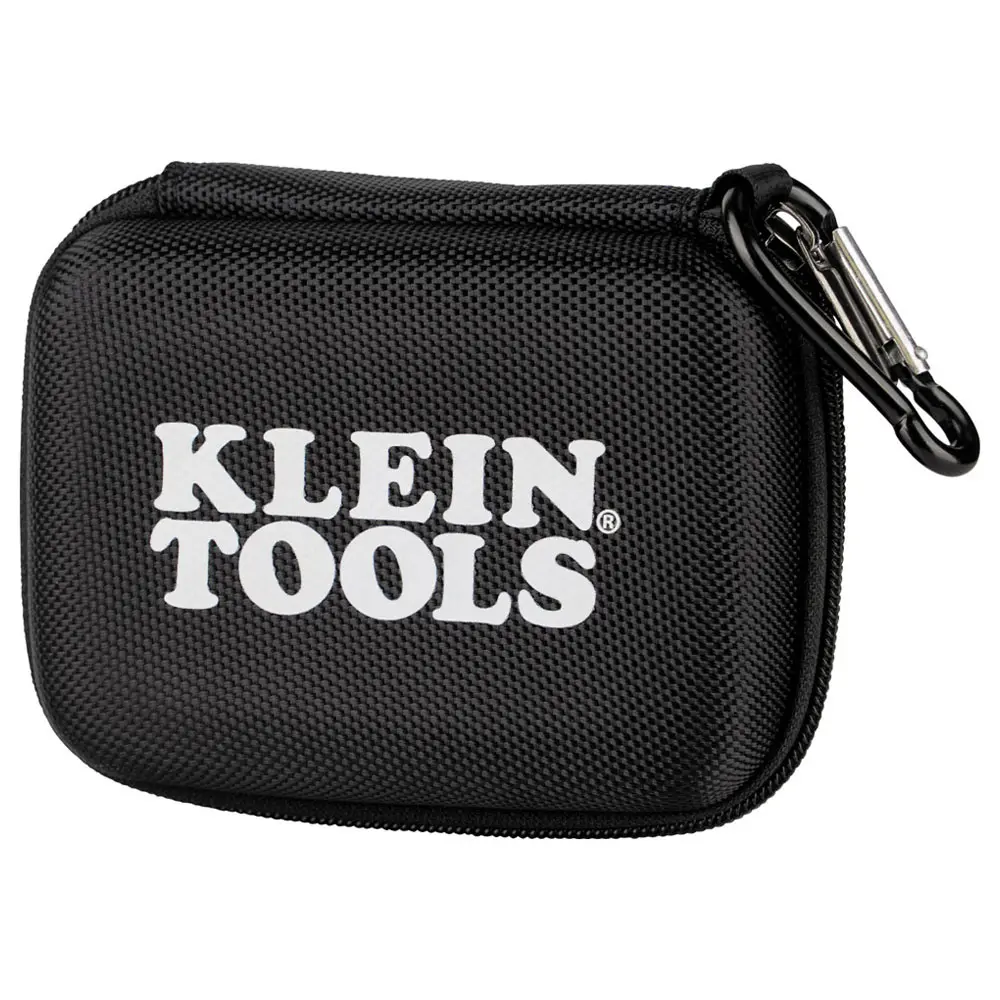

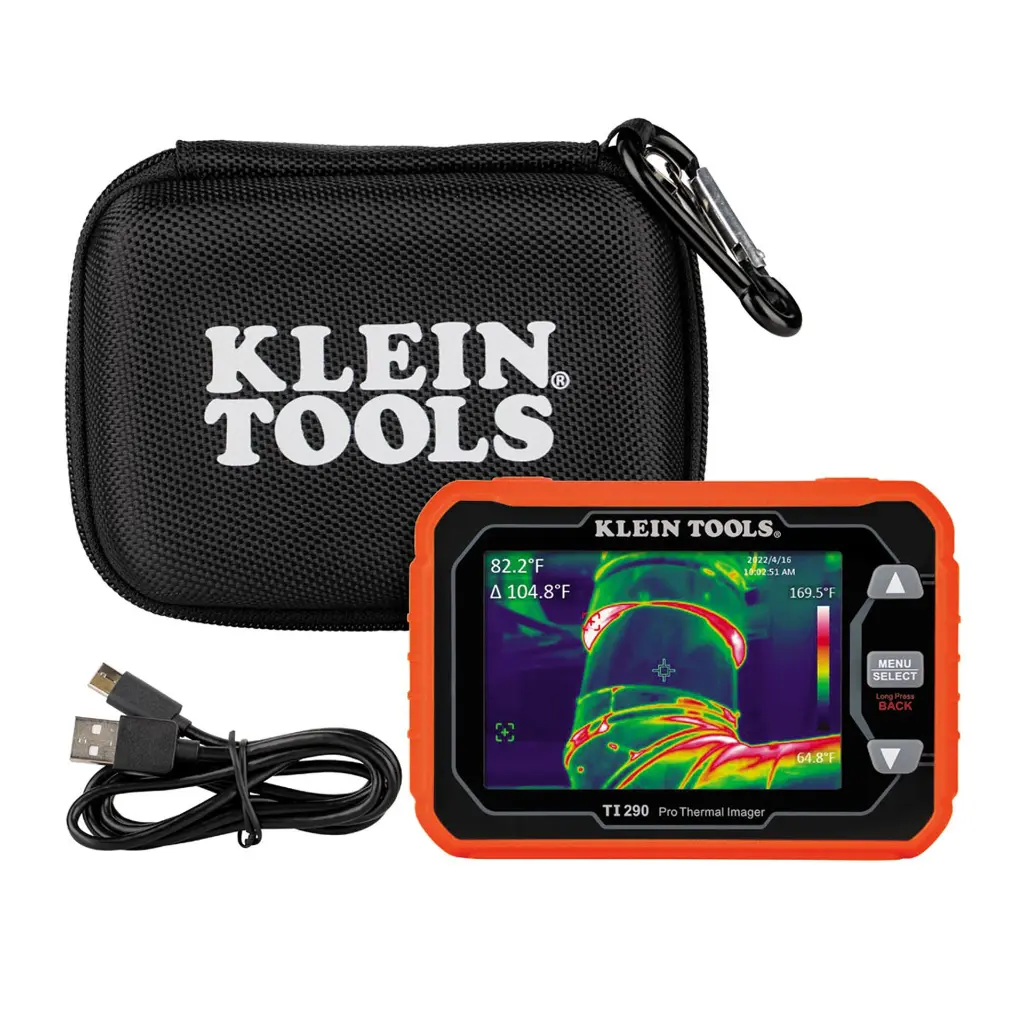

  • Includes thermal imager, USB-C charging cable, molded soft-storage case with carabiner, and instructions
  • Durable 6.6-Foot (2 m) drop test protection

$ 649.99 649.99 USD $ 649.99 $ 776.91

Not Available For Sale

($ 649.99 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

TI290

Rechargeable Pro Thermal Imaging Camera, 76,800 Pixels, Wi-Fi Data Transfer

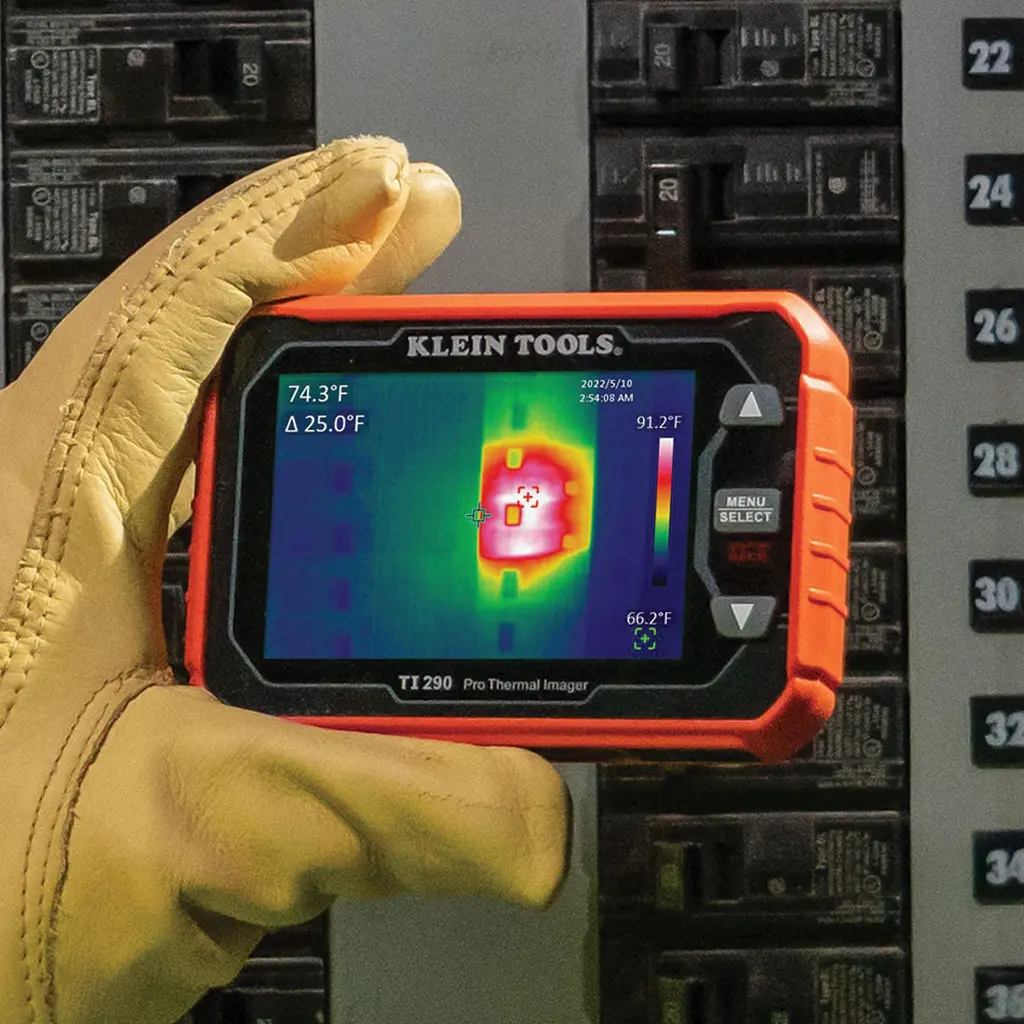

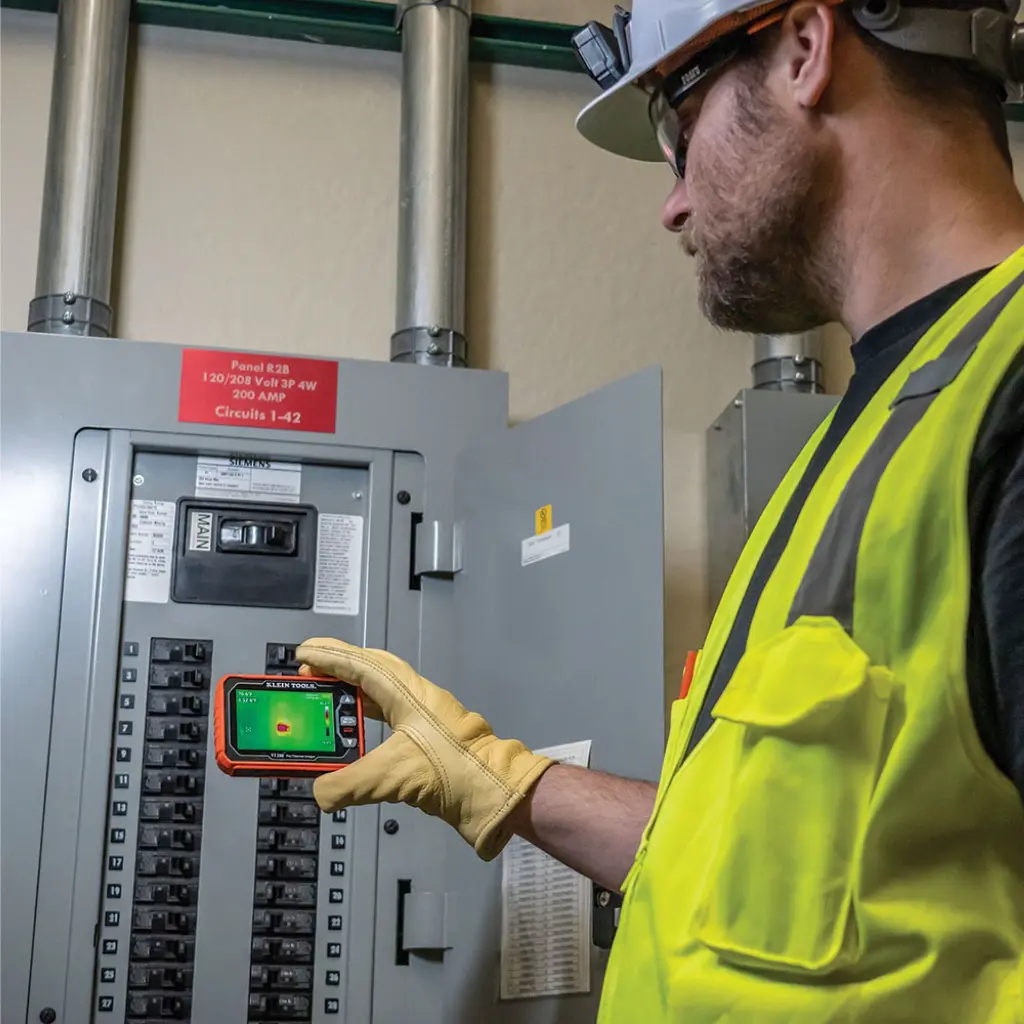

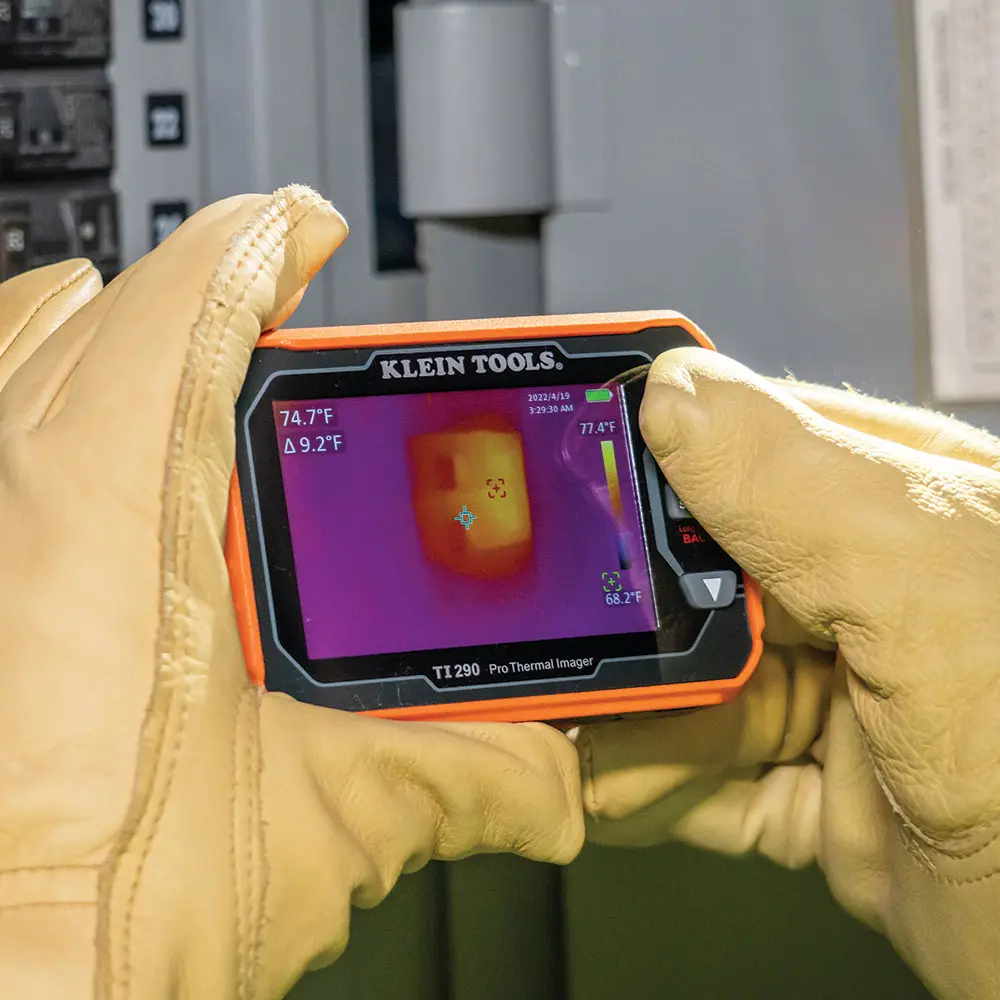

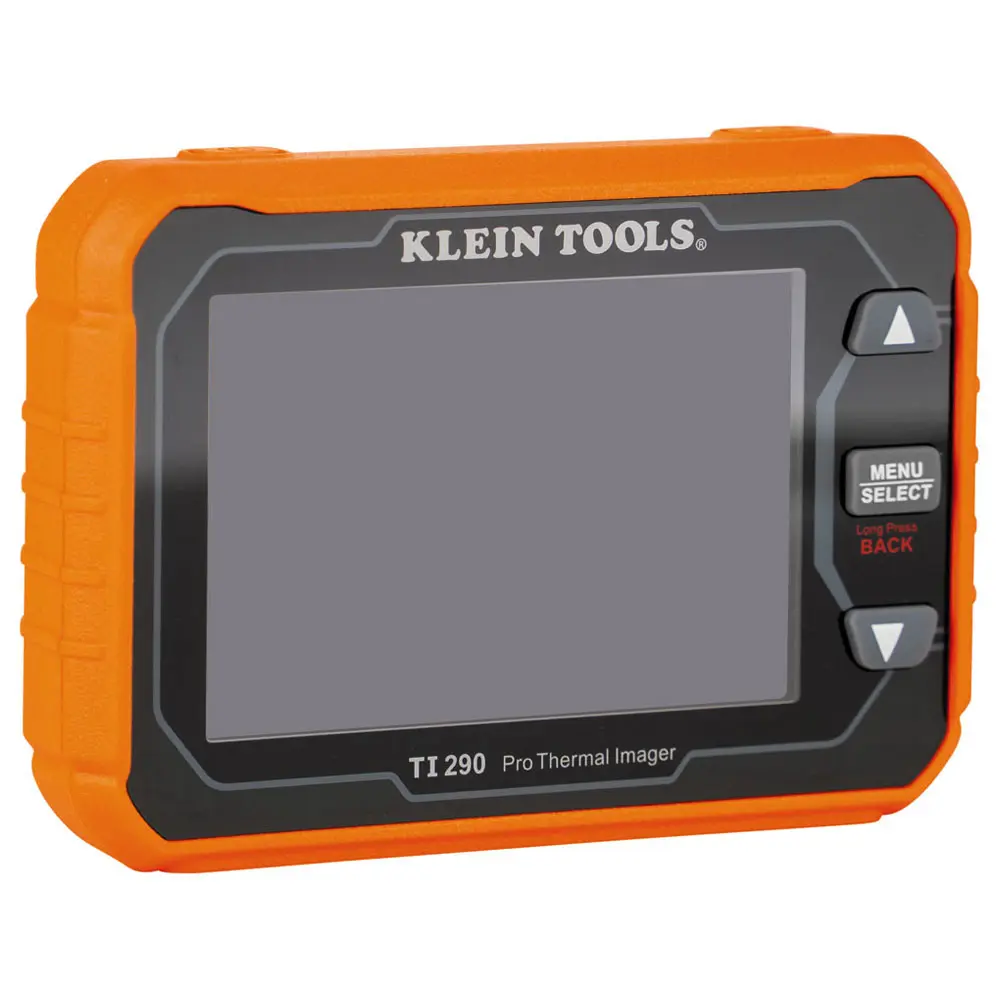

The Klein Tools TI290 is a high resolution, Wi-Fi enabled, professional model USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 76,800 pixels and your choice of three color palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. App is available for free in Google Play™ store and in the App Store.

Specifications

  • Maximum Frames per Second: <9 Hz
  • Number of Lithium-Ion Cells: 1
  • Temperature Range: -40° to 752°F (-40° to 400°C)
  • Type: Thermal Imager
  • Emissivity: 0.01 to 0.99, Adjustable
  • Sensor Type: VOx Microbolometer
  • Thermal Sensitivity: <50 mK
  • Display: 3.5'' (8.9 cm) TFT LCD
  • Material: ABS and Electronic Components
  • Lithium Battery Package: Contained in Product
  • Accuracy: ±2°C (±3.6°F) or 2%, Whichever is Greater
  • Standards: CE and UKCA
  • Color Palettes: Ironbow, Rainbow, Grayscale
  • Battery Weight: 34 g
  • Display Resolution: 480 x 320 Pixels
  • Field of View: 56° +/- 2.8°
  • Application: View Hot and Cold Spots for Instant Troubleshooting
  • Sensor Resolution: 76,800 Pixels
  • Spectral Range: 8 to 14μm
  • Photo Capture: Yes
  • Memory: 10,000 Images
  • Included: Rechargeable Thermal Imager, USB Charging Cable,Molded Soft-Storage Case with Carabiner, and Instructions
  • Batteries: Lithium-Ion
  • Special Features: Wi-Fi Transfer, High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Color Palettes
  • Laser Sighting: No
  • UPC: 092644693625

Additional Information

Warranty
Compliance

Warnings

  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with device before each use.
  • Never use on or near live electrical circuits. NOT insulated. Will NOT protect against electrical shock.
