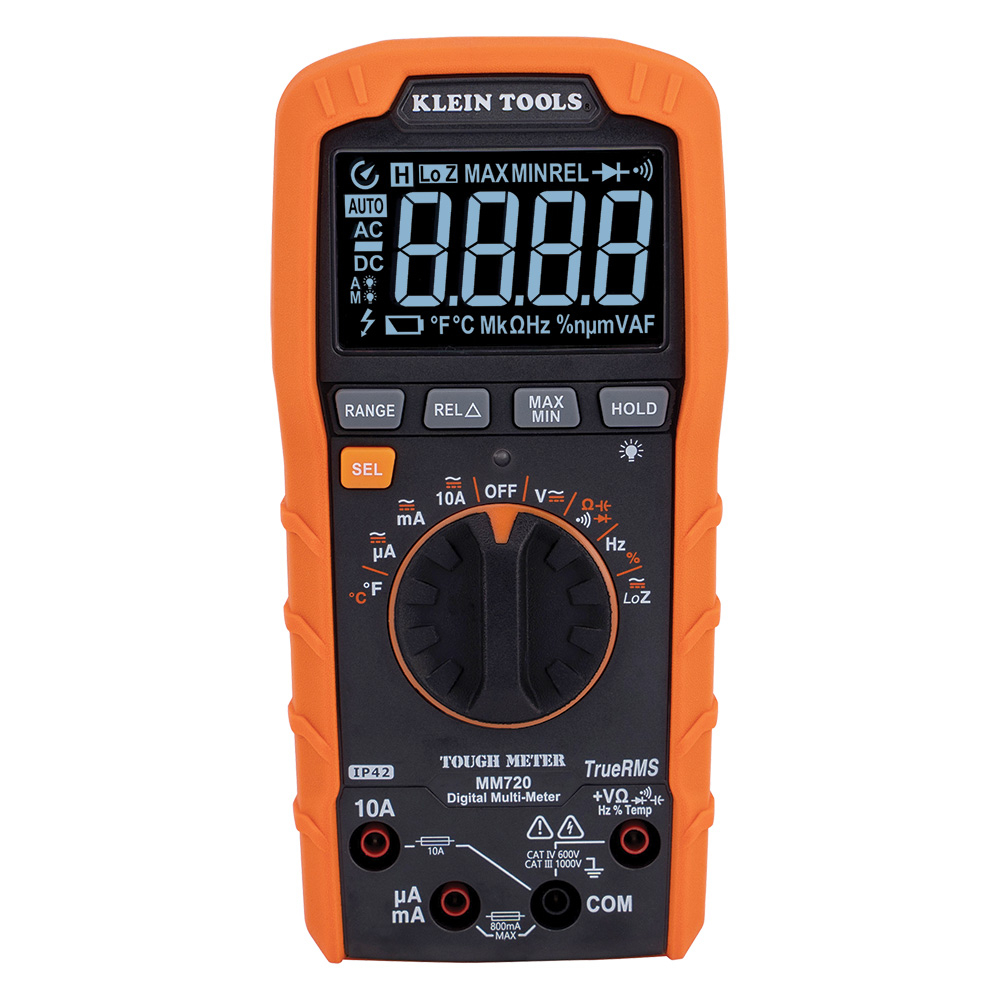

Klein Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance (MM720)
SKU: MM720
- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity
- High visibility, reverse contrast display automatically optimizes readability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600V Safety Rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
MM720
Digital Multimeter, TRMS Auto-Ranging, 1000V, Temp, Low Impedance
Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display to automatically optimize readability in dark or bright ambient lighting.
Specifications
- Type: Digital Multimeter
- Included: Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
- Current: 10A AC/DC
- Functions: Measures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
- Drop Protection: 6.6' (2 m)
- Special Features: High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
- Material: ABS, Electrical Components
- Batteries: 2 x AAA
- Color: Orange/Black
- Frequency: 1 Hz - 500 KHz
- Application: Testing and Measuring Voltage
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Voltage: 1000V AC/DC
- Display: 6000 Count LCD
- Ohms (Resistance): 60MΩ
- Ingress Protection: IP42
- Capacitance: 6000 µF
- Standard: CAT IV 600V; CAT III 1000V
- Battery Type: Alkaline
- Style: Digital Multimeter
- Overall Width: 3.37 in
- Weight: 0.76 lb
- Overall Length: 6.94 in
- Overall Height: 4.8 cm
- UPC: 092644693762
Additional Information
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
| Brand | Klein Tools |
