Klein Parallel Jaw Grip 4602 Series with Hot Latch (KT4602)

Price:

$ 307.74

Klein Parallel Jaw Grip 4602 Series with Hot Latch (KT4602)
  2. Shop
  3. Klein Parallel Jaw Grip 4602 Series with Hot Latch (KT4602)
Klein Parallel Jaw Grip 4601 Series with Hot Latch/Spring (KT4601)
Klein Parallel Jaw Grip 4601 Series with Hot Latch/Spring (KT4601)
$ 307.74
$ 307.74
Klein Parallel Jaw Grip 4800 Series (KT4800)
Klein Parallel Jaw Grip 4800 Series (KT4800)
$ 496.16
$ 496.16

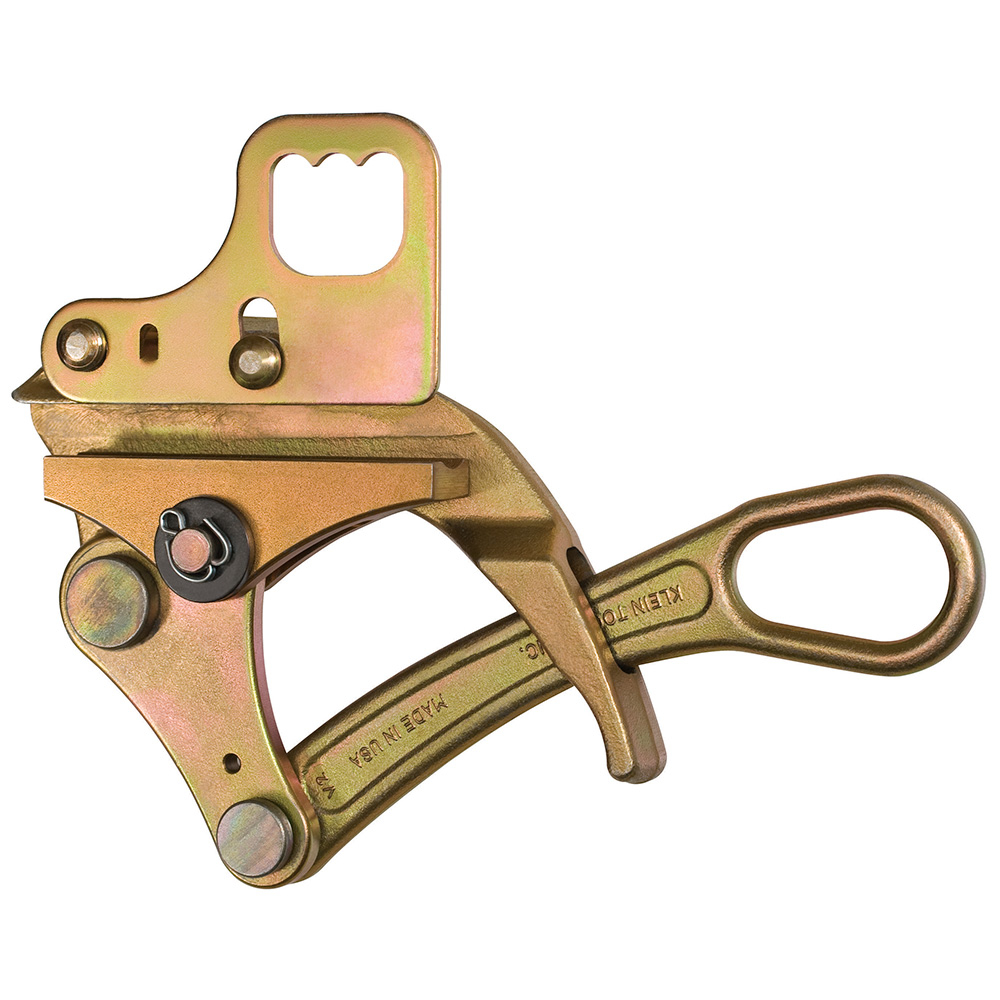

Klein Parallel Jaw Grip 4602 Series with Hot Latch (KT4602)

https://www.etisupply.com/web/image/product.template/1119276/image_1920?unique=f78ba00

SKU: KT4602

  • Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
  • Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Hot latch closes automatically to guard wire
  • Made in USA
  • Max Safe Load of 10,000-Pound (4536 kg)
  • Weight: 7.2 pounds
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product

$ 307.74 307.74 USD $ 307.74 $ 410.32

Not Available For Sale

($ 307.74 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

KT4602

Parallel Jaw Grip 4602 Series with Hot Latch

The Klein KT4602 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4602 has a jaw length of 5-Inches.

Specifications

  • Cable Type: ACSR, AAC, Copper
  • Application: Wire Pulling
  • Material: Steel
  • Jaw Type: Round
  • Type: Parallel Jaw Grip
  • Special Features: Hot Latch
  • Cable Diameter: 0.3'' to 0.8'' (7.62 to 20.32 mm)
  • Hot Latch: Yes
  • Spring: Yes
  • Locking Handle: No
  • Style: Hot Latch
  • Swing Latch: No
  • Code Word: Ibis, Brant, Chickadee, Oriole, Linnet, Merlin, Ostrich, Partridge, Waxwing, Penguin, Cochin, Brahma, Dorking, Dotterel, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Cosmos, Syringa, Goldentuft, Canna, Daffodil, Tulip, Peony, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy
  • Teeth Type: Coarse
  • Overall Width: 6.5 in (16.5 cm)
  • Overall Height: 1.375 in (3.5 cm)
  • Overall Length: 13 in (33 cm)
  • Maximum Safe Load (lb): 10000
  • Jaw Length (Inch): 5
  • Maximum Safe Load (kg): 4535.9
  • Weight: 7 lb
  • Jaw Length (cm): 12.7
  • UPC: 092644477553

Additional Information

Warranty
Compliance

Warnings

  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Brand Klein Tools
