Klein USB Digital Meter, USB-A and USB-C (ET920)

Price:

$ 39.97

Klein USB Digital Meter, USB-A and USB-C (ET920)
  2. Shop
  3. Klein USB Digital Meter, USB-A and USB-C (ET920)
Klein USB Digital Meter and Tester, USB-A (Type A) (ET910)
Klein USB Digital Meter and Tester, USB-A (Type A) (ET910)
$ 43.99
$ 43.99
Klein Zipper Bags, Canvas Tool Pouches Brown/Black/Gray/Red, 4-Pack (5141)
Klein Zipper Bags, Canvas Tool Pouches Brown/Black/Gray/Red, 4-Pack (5141)
$ 45.42
$ 45.42

Klein USB Digital Meter, USB-A and USB-C (ET920)

https://www.etisupply.com/web/image/product.template/1119000/image_1920?unique=5b3772d

SKU: ET920

  • 3 to 20V DC; Current: 0.05 to 3A (USB-A); 3 to 20V DC; Current: 0.05 to 5A (USB-C)
  • Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
  • Tests most common standard USB-A or USB-C ports, including Qualcomm Quick Charge® ports
  • Store and recall up to 10 readings
  • Voltage and current overload detection
  • Hi-resolution LCD for clear visibility in environments with low ambient lighting
  • Device must be used in line between source being measured and power source
  • Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
  • Built to withstand a 6.6-Foot (2m) drop
  • No batteries needed; powered by the USB port being tested

$ 39.97 39.97 USD $ 39.97 $ 47.98

Not Available For Sale

($ 39.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

ET920

USB Digital Meter, USB-A and USB-C

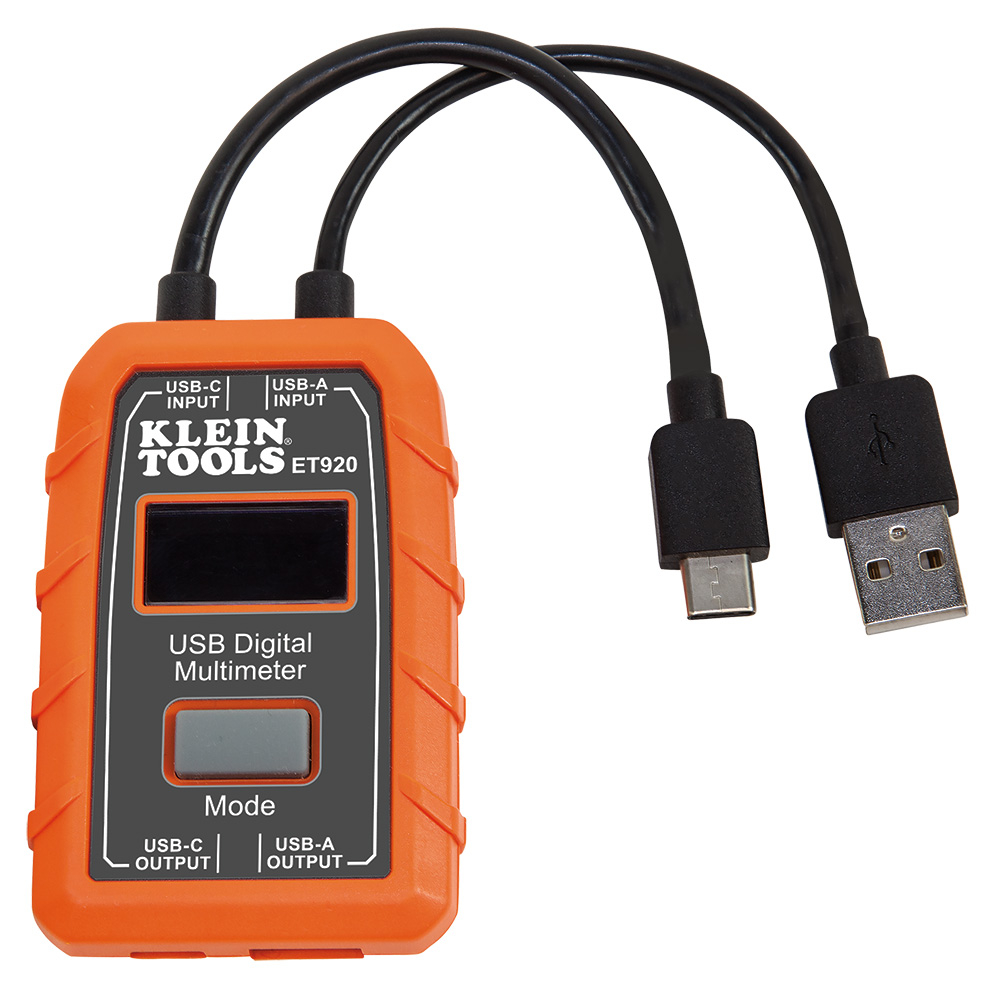

The Klein Tools ET920 is a USB digital meter for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge® ports that have the ability to deliver power. It requires NO batteries as it draws power from the power source to function.

Specifications

  • Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
  • Capacity Used: 99,999mAh Maximum
  • Current: USB-A: 0.05 to 3A; USB-C: 0.05-5A
  • USB Compatibility: USB-A, USB-C; Qualcomm Quick Charge® Compatible
  • Special Features: Fits Any USB-A and USB-C Ports
  • Drop Protection: 2 m (6.6')
  • Energy Delivered: 999Wh Maximum
  • Voltage: 3 to 20V DC
  • Ingress Protection: IP20
  • Display: LCD
  • Application: USB Port Voltage, Current, Capacity, Energy and Resistance (Calculated)
  • Type: USB-A (Type A) and USB-C (Type C)
  • Material: Polymer
  • Resistance: 400 ohms Maximum
  • Style: USB-A and USB-C Meter
  • Weight: 0.11 lb
  • Overall Width: 1.96 in (5 cm)
  • Overall Height: 0.6 in (1.5 cm)
  • Overall Length: 2.96 in (7.5 cm)
  • UPC: 092644691669

Additional Information

Warranty
Compliance

Warnings

  • To ensure safe operation and service of this meter, follow all instructions. Failure to observe warnings can result in severe injury or death.
  • This meter will NOT display current below 50 milliamperes, even if it is allowing this to pass through. NOTE: The display will show zero current.
  • Do NOT use with ports that operate outside of the rated voltage and current. NEVER use on a circuit with voltage or current that exceeds the maximums specified for this device.

Brand Klein Tools
