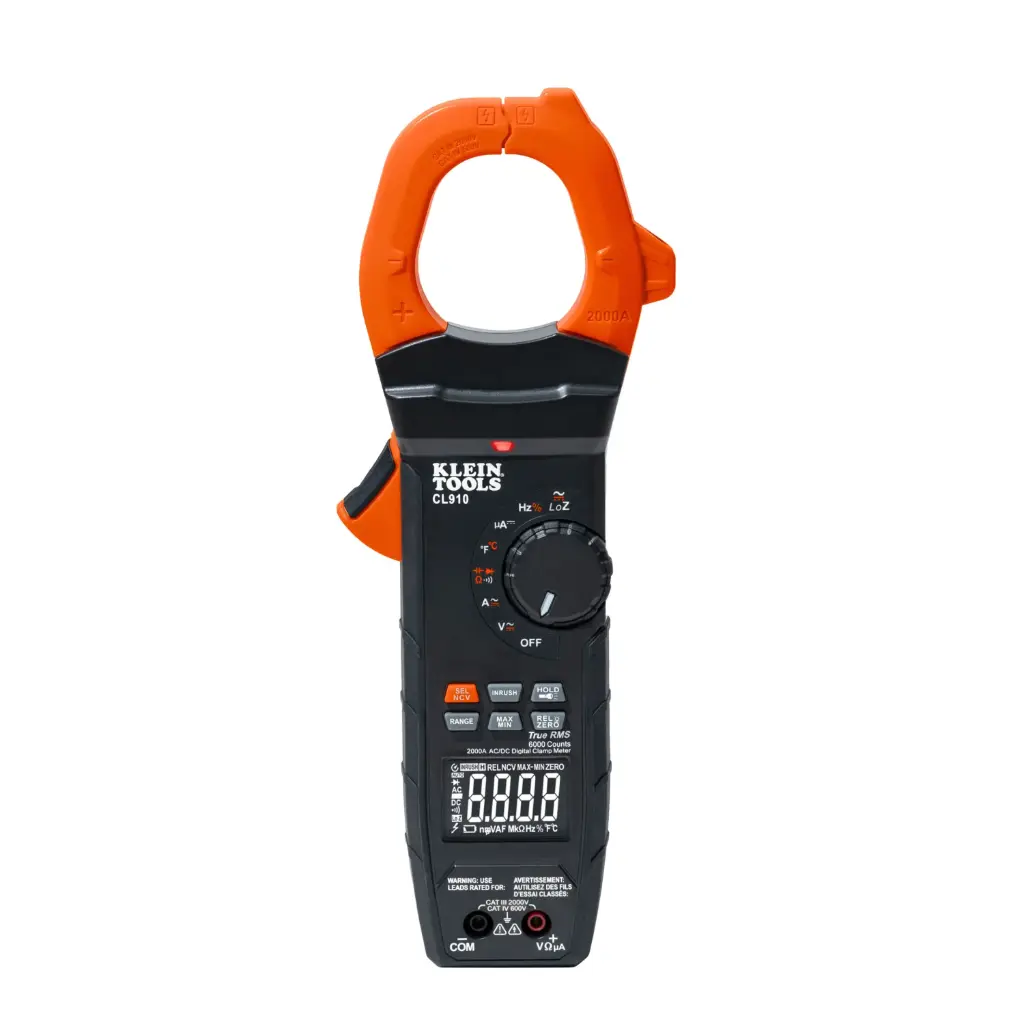

Klein High Voltage / Current Clamp Meter 1000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL910)
SKU: CL910
- 2000V AC/DC voltage measurement capability specifically designed for high-voltage applications including power distribution networks and renewable energy systems
- 2000A AC/DC current range with inrush current (AC only) measurement through connected clamp for comprehensive high-power electrical testing
- Advanced True Root Mean Squared (TRMS) auto-ranging technology provides professional-grade accuracy on complex waveforms and non-linear loads in demanding environments
- Backlit dial and reverse-contrast LCD with integrated work light provides superior visibility and illuminates work area in all conditions
- Designed to withstand tough jobsite conditions, this meter is rated IP40, CAT III 2000V, CAT IV 600V, and will withstand up to a 2-Meter drop
- Hands-free operation features include test lead holder mounted on clamp plus compatibility with optional magnetic hangers (Cat. No. 69445 or Cat. No. 69417) for safe high-voltage work
CL910
2000A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight
Klein Tools High Voltage Digital Clamp Meter is a professional-grade clamp meter engineered for extreme high-voltage applications up to 2000V and 2000A. It features TRMS auto-ranging accuracy, integrated worklight, and superior backlit display and is perfect for solar panel installations, wind turbines, and power distribution networks. Hands-free operation with test lead holder and magnetic hanger compatibility for safe, efficient renewable energy work.
Specifications
- Material: ABS
- Voltage: 2000V AC; 2000V DC
- DC Micro-Amp: 200µA
- Ohms (Resistance): 60MΩ
- Application: Variety of Electrical Diagnostic and Troubleshooting Applications
- Standard: CAT IV 600V, CAT III 2000V, Class 2, Double Insulation, CE, UKCA
- Batteries: 2 x AA
- Frequency: 10Hz-60kHz
- Accuracy: See Instructions
- Included: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Carrying Case; Instruction Manual; 2 x AA Batteries
- Ingress Protection: IP40
- Battery Type: Alkaline
- Auto-Power Off: Yes
- Functions: AC/DC Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
- AC Voltage: 2000V
- Temperature Range: -14° to 1000° F (-26° to 538° C)
- Display: Backlit Reverse-Contrast with 6000 Count LCD
- Current: 2000A, AC/DC
- Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder
- Capacitance: 6000µF
- DC Voltage: 2000V
- Drop Protection: 6.6' (2 m)
- DC Polarity Indicator: Yes
- Type: CAT IV Clamp Meter
- Auto Ranging: Yes
- UPC: 092644694677
Additional Information
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
| Brand | Klein Tools |
