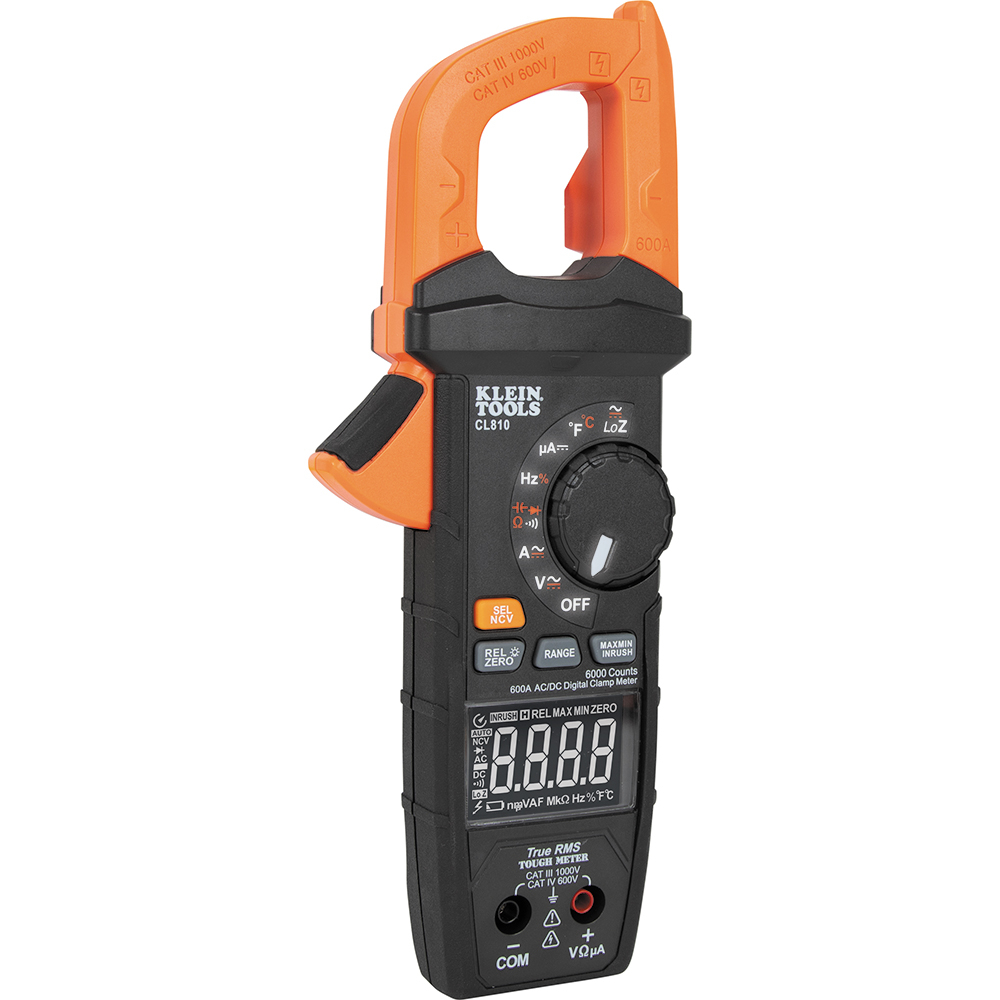

Klein 600A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight (CL810)
SKU: CL810
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current 10mA-600A, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
- Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
CL810
600A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight
Klein Tools CL810 Clamp Meter with Flashlight delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, inrush, and capacitance, all with True RMS precision. It features diode testing and LoZ mode to eliminate ghost voltages. Temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Specifications
- Ingress Protection: IP40
- AC Voltage: 1000V
- Auto-Power Off: Yes
- Special Features: Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder
- Temperature Range: 40° to 1832° F (-40° to 1000° C)
- DC Voltage: 1000V
- Battery Type: Alkaline
- DC Micro-Amp: Yes
- Included: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
- Application: Variety of Electrical Diagnostic and Troubleshooting Applications
- DC Polarity Indicator: Yes
- Material: ABS/Electronics
- Capacitance: 6000µF
- Drop Protection: 6.6' (2 m)
- Current: 600A
- Voltage: 1000V AC; 1000V DC
- Type: Pro Clamp Meter
- Functions: AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
- Ohms (Resistance): 60MΩ
- Accuracy: See Instructions
- Frequency: 10Hz - 60 kHz
- Standard: CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
- Batteries: 3 x AAA
- Display: Transflective Reverse-Contrast with 6000 Count LCD
- Auto Ranging: Yes
- UPC: 092644694486
Additional Information
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
| Brand | Klein Tools |
