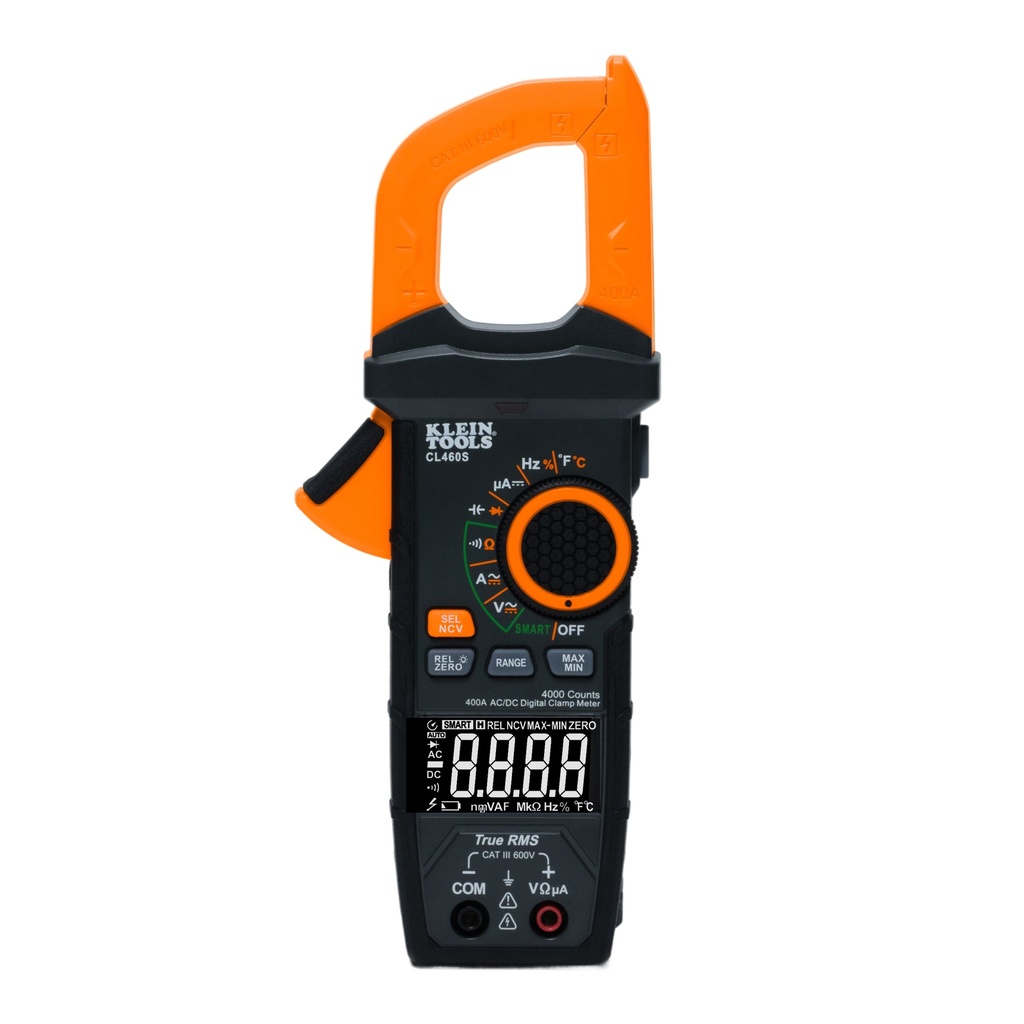

Klein 400A AC/DC Auto-Ranging Smart Digital Clamp Meter (CL460S)
SKU: CL460S
- Smart mode technology automatically detects measurement type and switches between continuity, voltage, resistance, and current without dial adjustment
- Measures AC/DC voltage up to 600V, 400A AC/DC current, 40MΩ resistance
- Reverse-contrast display with optimized backlighting ensures exceptional readability in any lighting condition
- Auto-ranging precision combined with TRMS technology ensures reliable measurements for all applications
- Hands-free operation with test lead holder on back and optional magnetic hangers (Cat. No. 69445 or 69417) for convenient positioning
- Slim and durable design with rugged construction built to withstand demanding jobsite conditions
- Advanced measurement capabilities deliver professional grade performance for electrical testing applications
CL460S
400A AC/DC Auto-Ranging Smart Digital Clamp Meter
Klein Tools CL460S Smart Digital Clamp Meter combines auto-detection technology with traditional dial control for ultimate versatility. Smart mode automatically switches between voltage, current, resistance, and continuity without manual selection. Features 400A AC/DC capacity, TRMS accuracy, and superior backlit reverse-contrast display for clear readings in any environment. Hands-free magnet mount and test lead holder maximize convenience.
Specifications
- Drop Protection: 6.5' (2 m)
- Voltage: 600V AC; 600V DC
- Accuracy: See Instructions
- Current: 400 AC/DC
- Included: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Carrying Case; Instruction Manual; 3 x AAA Batteries
- Frequency: 10Hz - 60kHz
- Functions: SMART Mode, AC/DC Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
- Batteries: 3 x AAA
- AC Voltage: 600V
- Type: Closed Clamp Meter
- Display: 4000 Count LCD
- DC Micro-Amp: 400µA
- Battery Type: Alkaline
- Standard: CAT III 600V; Class 2 Double Insulation; CE Certified
- Auto-Power Off: Yes
- DC Polarity Indicator: Yes
- DC Voltage: 600V
- Application: Variety of Electrical Diagnostic and Troubleshooting Applications
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Ingress Protection: —
- Special Features: SMART Mode, Backlit Reverse-Contract Display; Built-in Lead Holder
- Capacitance: 4000µF
- Material: ABS/Electronics
- Ohms (Resistance): 40MΩ
- Auto Ranging: Yes
- UPC: 092644694905
Additional Information
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
| Brand | Klein Tools |
