Klein AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp (CL390)

Price:

$ 99.97

Klein AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp (CL390)
  2. Shop
  3. Klein AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp (CL390)
Klein 9/64-Inch Hex Key, Journeyman™ T-Handle, 9-Inch (JTH9E09)
Klein 9/64-Inch Hex Key, Journeyman™ T-Handle, 9-Inch (JTH9E09)
$ 5.45
$ 5.45
Klein Aerial Apron (51829)
Klein Aerial Apron (51829)
$ 164.81
$ 164.81

Klein AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp (CL390)

https://www.etisupply.com/web/image/product.template/1118829/image_1920?unique=746fb6d

SKU: CL390

  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Non-contact voltage tester integrated into the clamp jaw
  • High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
  • Measures temperature with a K-Type thermocouple probe
  • Max/Min, Rel/Zero and Data Hold capability
  • Auto-power off after 10 minutes to conserve battery life

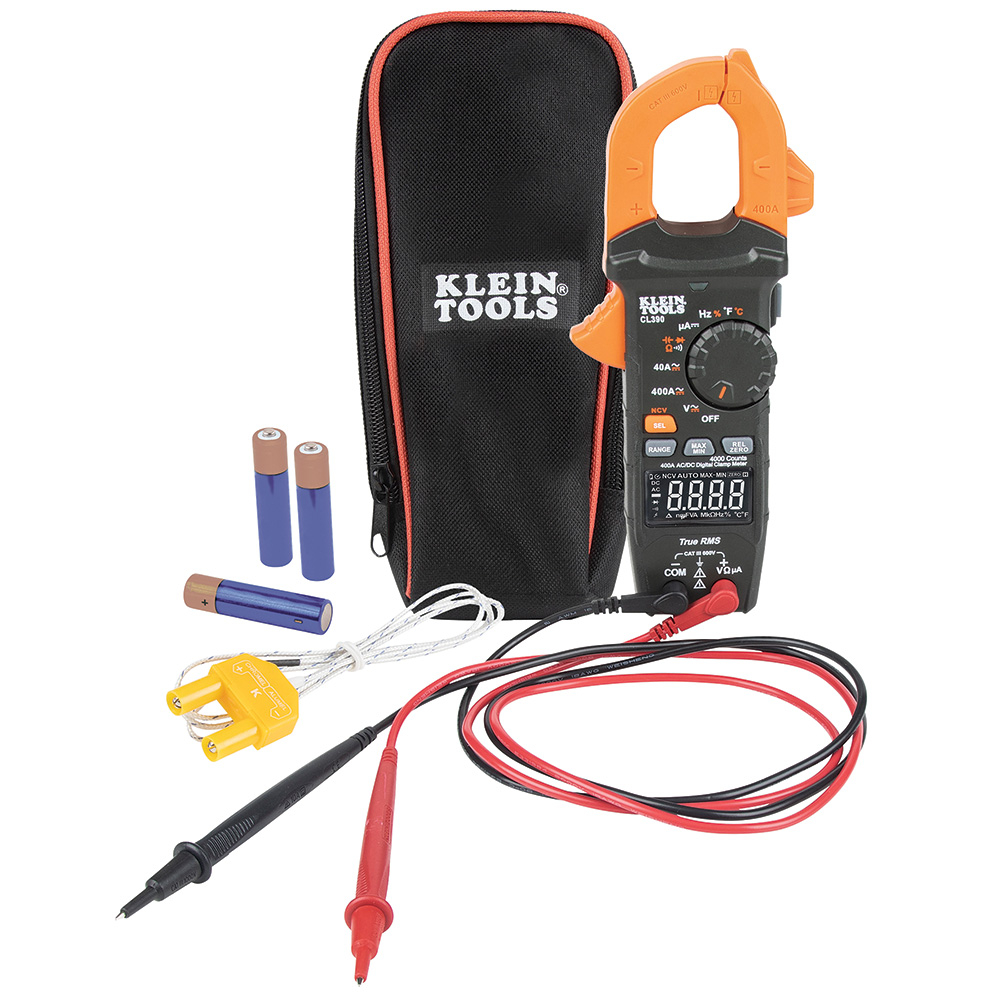

  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment

$ 99.97 99.97 USD $ 99.97 $ 133.30

Not Available For Sale

($ 99.97 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

CL390

AC/DC Digital Clamp Meter, TRMS Auto-Ranging 400 Amp

Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

Specifications

  • DC Polarity Indicator: Yes
  • Display: 4000 Count Reverse Contrast LCD
  • Voltage: 600 V AC/DC
  • DC Micro-Amp: 200 µA
  • DC Voltage: 600 V
  • Current: 400 A AC/DC
  • Drop Protection: 6.6' (2 m)
  • Capacitance: 4000 µF
  • Batteries: 3 x AAA
  • Application: Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple
  • Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
  • Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
  • Material: ABS/Electronics
  • Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
  • Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
  • AC Voltage: 600 V
  • Temperature Range: -40° - 1832°F (-40° - 1000°C)
  • Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
  • Type: AC/DC Current TRMS Clamp
  • Ingress Protection: —
  • Ohms (Resistance): 40 MΩ
  • Auto-Power Off: Yes
  • Battery Type: Alkaline
  • Style: Standard Display
  • Overall Height: 3.8 cm
  • UPC: 092644692871

Additional Information

Warranty
Compliance

Warnings

  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
