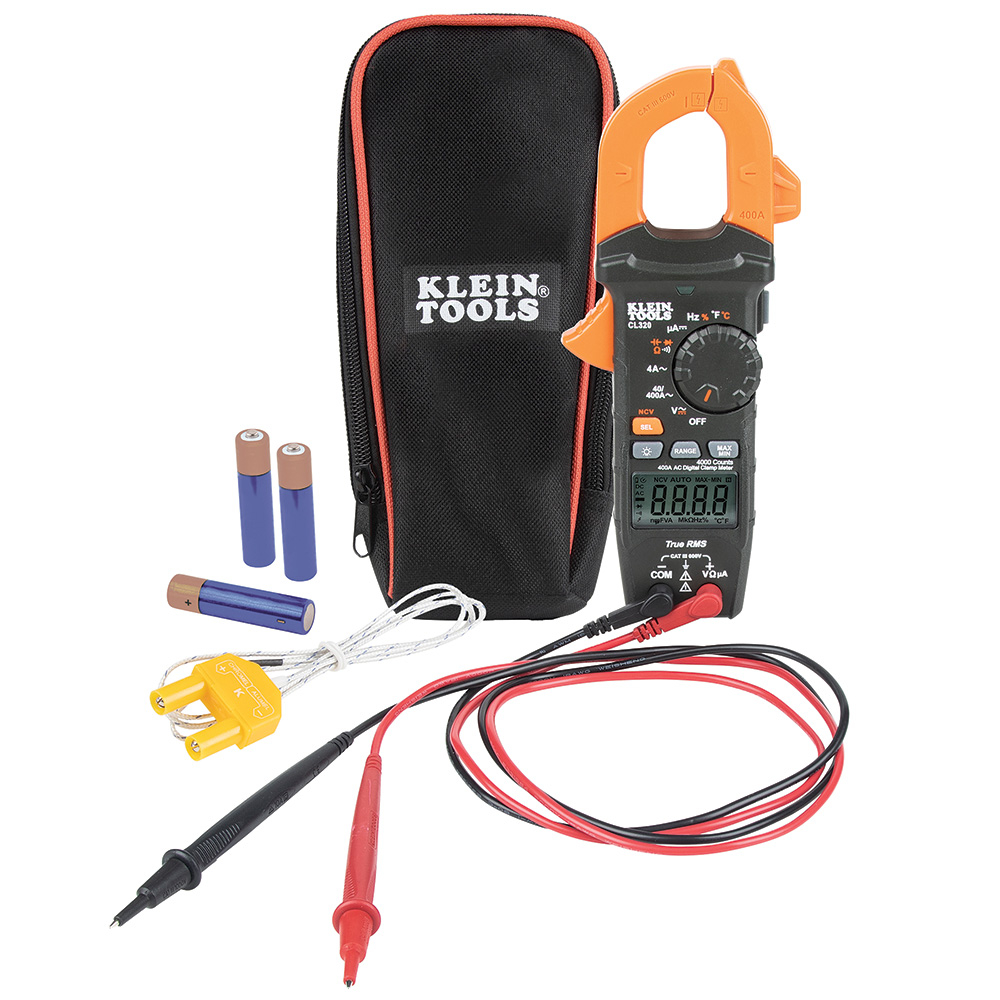

Klein HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp (CL320)
SKU: CL320
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Data Hold, and Max/Min value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
CL320
HVAC Digital Clamp Meter, AC Auto-Ranging 400 Amp
Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Specifications
- Display: 4000 Count Backlit LCD
- AC Voltage: 600V
- Frequency: 10 Hz -60 kHz
- Material: ABS/Electronics
- Type: HVAC TRMS Clamp
- DC Micro-Amp: 200 μA
- Current: 400 A AC
- Batteries: 3 x AAA
- Drop Protection: 6.6' (2 m)
- Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
- Application: Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Ohms (Resistance): 40MO
- Temperature Range: -40° - 1832°F (-40° - 1000°C)
- Included: Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
- Voltage: 600V AC/DC
- DC Voltage: 600V
- Auto-Power Off: Yes
- Ingress Protection: —
- DC Polarity Indicator: Yes
- Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature
- Capacitance: 4000 µF
- Size_Name: Clamp Meter
- Battery Type: Alkaline
- Auto Ranging: Yes
- UPC: 092644692864
Additional Information
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not attempt to measure resistance or continuity on live circuits.
- Before each use verify meter operation by measuring a known voltage or current.
- Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
