Klein 3/4-Inch Iron Conduit Bender Head (51609)

Price:

$ 59.99

Klein 3/4-Inch Iron Conduit Bender Head (51609)
  2. Shop
  3. Klein 3/4-Inch Iron Conduit Bender Head (51609)
Klein 3/4-Inch Carbide Hole Cutter, to 3/16-Inch Sheets (31850)
Klein 3/4-Inch Carbide Hole Cutter, to 3/16-Inch Sheets (31850)
$ 34.10
$ 34.10
Klein 3/8-Inch Ball-End Hex Key, Journeyman™ T-Handle, 6-Inch (JTH6E15BE)
Klein 3/8-Inch Ball-End Hex Key, Journeyman™ T-Handle, 6-Inch (JTH6E15BE)
$ 12.48
$ 12.48

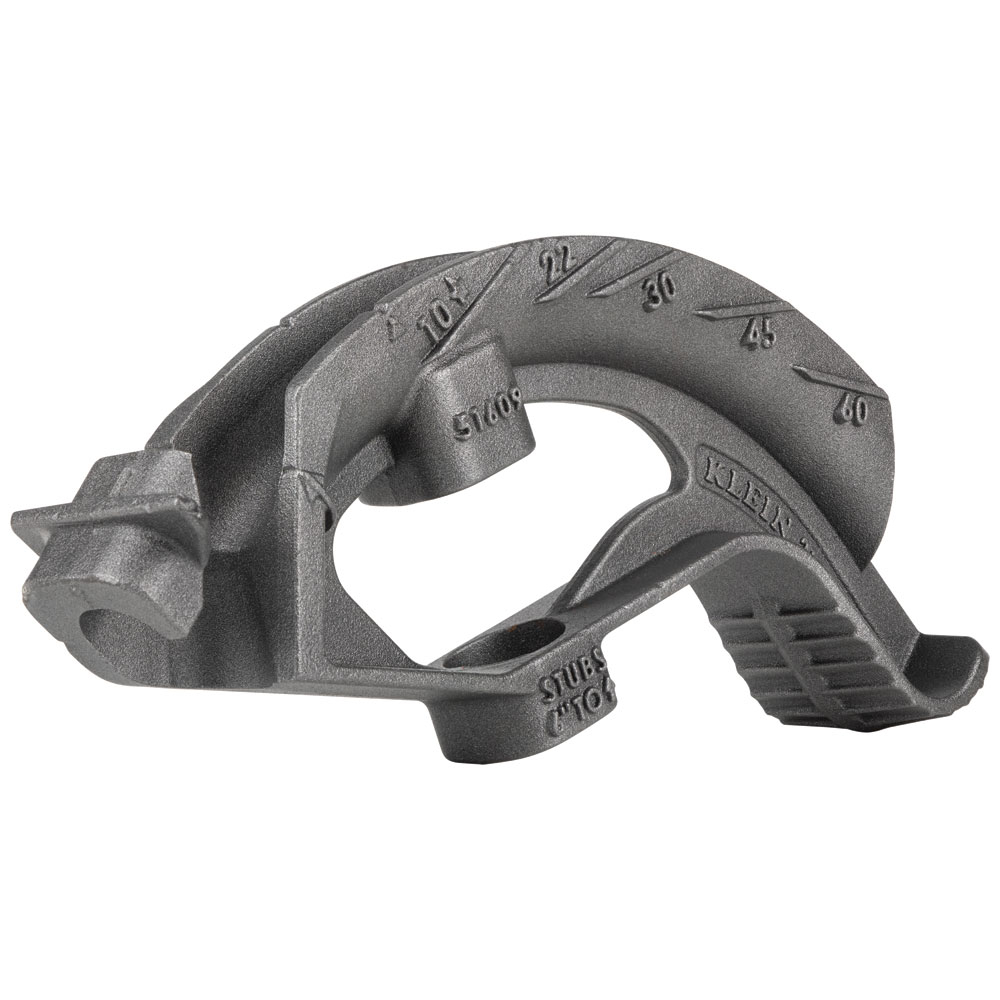

Klein 3/4-Inch Iron Conduit Bender Head (51609)

https://www.etisupply.com/web/image/product.template/1120387/image_1920?unique=c7f89b7

SKU: 51609

  • 3/4-Inch Iron Bender Head made of heavy duty cast ductile iron is designed for 3/4-Inch EMT or 1/2-Inch rigid IMC
  • Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
  • Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
  • Compatible with Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends (Patent pending Angle Setter™ Cat. No. 51612) and works with Klein Tools' bender handle Cat. No. 51427 (sold separately)
  • Made in USA
  • Wide foot pedal provides excellent stability, leverage, and comfort
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Advanced casting process for ultimate core strength
  • Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit

$ 59.99 59.99 USD $ 59.99 $ 90.22

Not Available For Sale

($ 59.99 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

51609

3/4-Inch Iron Conduit Bender Head

Klein Tools' Conduit Bender Head is designed to handle thin wall EMT up to 3/4-Inch and rigid IMC up to 1/2-Inch thick. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters™ (Cat. No. 51612) for quick, repeated bends and the Klein Handle (Cat. No. 51427), which are both sold separately.

Specifications

  • Application: Conduit Bending
  • Type: Iron Bender Head
  • Material: Iron
  • Marking: 10°, 22°, 30°, 45°, 60°
  • Thinwall/EMT: 3/4'' (1.9 cm)
  • Standard: —
  • Centerline Bend Radius: 5''- Stub-up Height 6'', Centerline Radius 5-1/2''
  • Special Features: Bold, Cast Markings, Compatible with Angle Setter™
  • Rigid/IMC: 1/2'' (1.3 cm)
  • Included: Bender Head Only
  • Conduit Size: 3/4'' EMT; 1/2'' Rigid IMC
  • For Use With: Angle Setter™ Cat. No. 51612
  • Overall Width: 9.8 in (24.9 cm)
  • Overall Length: 1.9 in (4.8 cm)
  • Weight: 3.4 lb
  • Overall Height: 6.2 in (15.7 cm)
  • UPC: 092644516092

Additional Information

Warranty
Compliance

Warnings

  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
