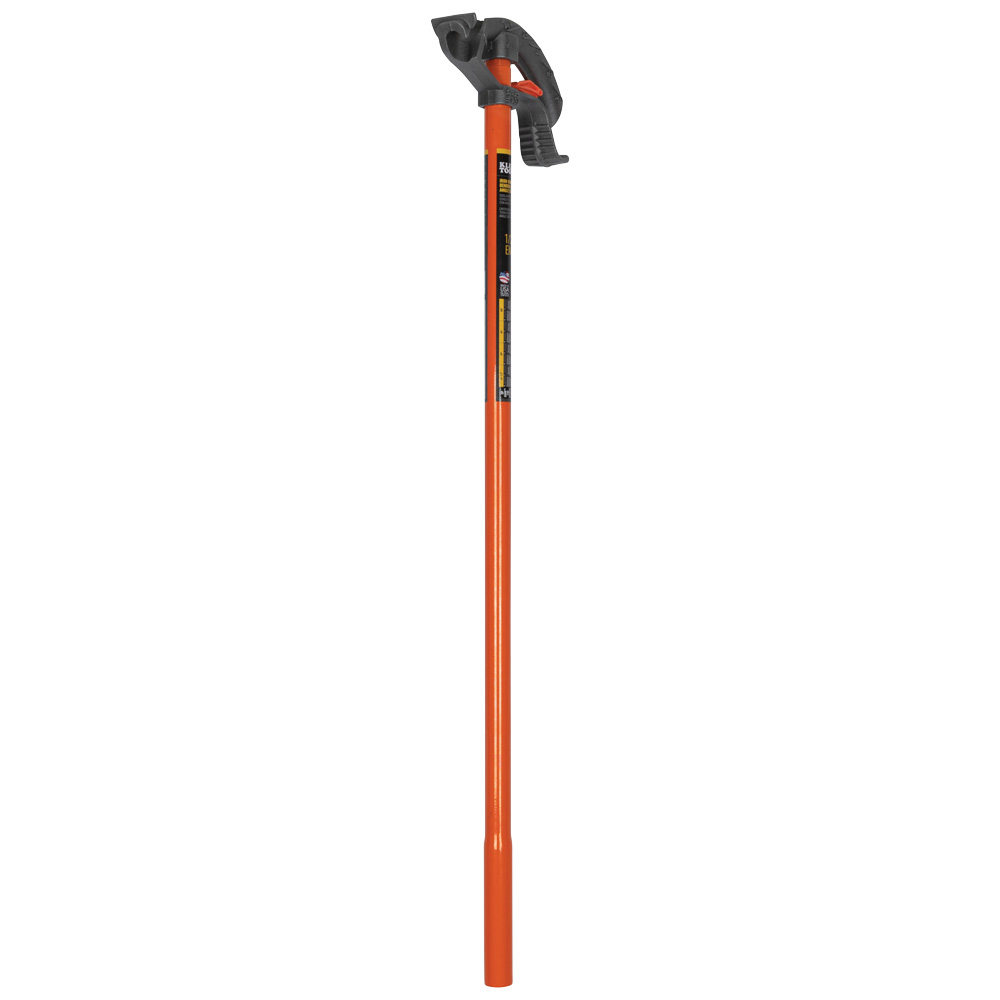

Klein Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™ (51603)

Price:

$ 59.99

Klein Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™ (51603)
  2. Shop
  3. Klein Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™ (51603)
Klein Iron Conduit Bender Full Assembly, 1-Inch EMT with Angle Setter™ (51605)
Klein Iron Conduit Bender Full Assembly, 1-Inch EMT with Angle Setter™ (51605)
$ 104.97
$ 104.97
Klein Iron Conduit Bender Full Assembly, 3/4-Inch EMT with Angle Setter™ (51604)
Klein Iron Conduit Bender Full Assembly, 3/4-Inch EMT with Angle Setter™ (51604)
$ 79.99
$ 79.99

Klein Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™ (51603)

https://www.etisupply.com/web/image/product.template/1120381/image_1920?unique=c7f89b7

SKU: 51603

  • 1/2-Inch assembled Iron Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
  • Heavy duty cast ductile iron has the durability needed on the job site
  • Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
  • Wide foot pedal provides excellent stability, leverage, and comfort
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
  • Features Klein's 1/2-Inch Angle Setter™ (Cat. No. 51611) that creates a hard stop for quick, accurate, and consistent bends

$ 59.99 59.99 USD $ 59.99 $ 86.40

Not Available For Sale

($ 59.99 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

51603

Iron Conduit Bender Full Assembly, 1/2-Inch EMT with Angle Setter™

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Specifications

  • Conduit Size: 1/2''
  • Marking: 10°, 22°, 30°, 45°, 60°
  • Thinwall/EMT: 1/2'' (1.3 cm)
  • Rigid/IMC: —
  • Special Features: Patent Pending Angle Setter™ Technology
  • Material: Iron
  • Application: Bending Conduit
  • Included: 51608 Bender Head; 51427 Handle; 51611 Angle Setter™
  • Standard: —
  • Conduit Type: EMT
  • Type: Iron Conduit Bender
  • Overall Width: 8.1 in (20.6 cm)
  • Overall Length: 1.7 in (4.3 cm)
  • Weight: 5.5 lb
  • Overall Height: 43.1 in (109.5 cm)
  • Handle Length (cm): 96.5
  • Centerline Bend Radius (Inch): 4.625
  • Handle Length (Inch): 38
  • UPC: 092644516030

Additional Information

Warranty
Compliance

Warnings

  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
