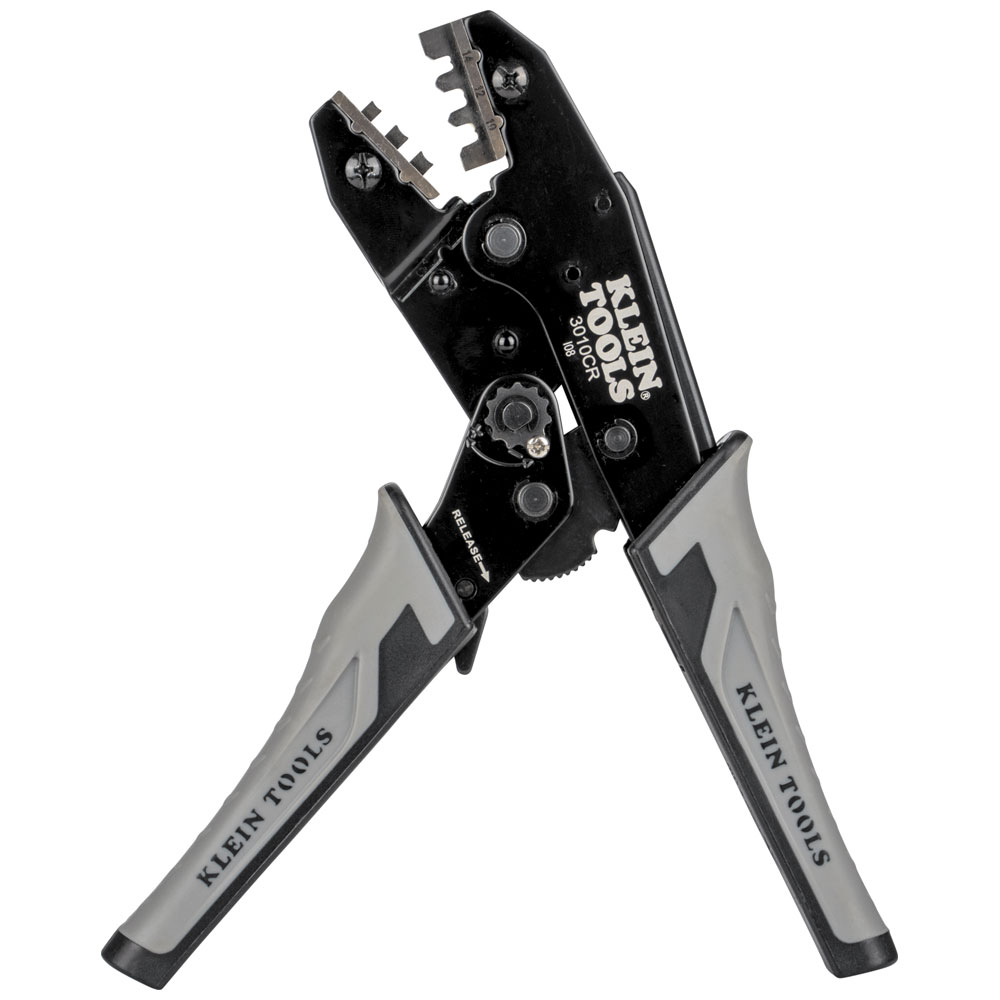

Klein Solar Ratcheting Crimper for MC4® Connectors (3010CR)
SKU: 3010CR
- Crimps MC4® style pins onto 10-14 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
- Unique cavity design provides a consistent crimp from either side of the tool
- Three crimping cavities in one tool: 10 AWG, 12 AWG, and 14 AWG
3010CR
Solar Ratcheting Crimper for MC4® Connectors
Klein Tools' Solar Ratcheting Crimper was designed to crimp MC4® style pins onto 10-14 AWG stranded copper wire. Engineered with an unique cavity to crimp consistently on either side of the tool. Molded handles to provide added comfort during extended use.
Specifications
- Material: Steel
- Included: Solar Ratcheting Crimper
- Special Features: Adjustable Side Cam
- Package Quantity: 1
- Application: Interface with PV Connector Terminals on 10, 12, and 14 AWG Stranded Wire
- Type: Solar Tools
- Cuts: No
- Strips: No
- Style: Ratcheting Crimper
- Overall Height: 0.87 in (2.2 cm)
- Weight: 1.19 lb
- Overall Length: 8.9 in (22.6 cm)
- Overall Width: 3.04 in (7.7 cm)
- UPC: 092644340383
Additional Information
Warnings
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
- Because moisture, films, or other surface contaminants are conductive, Klein tools must be kept clean, dry, and free of any surface contaminants.
| Brand | Klein Tools |
