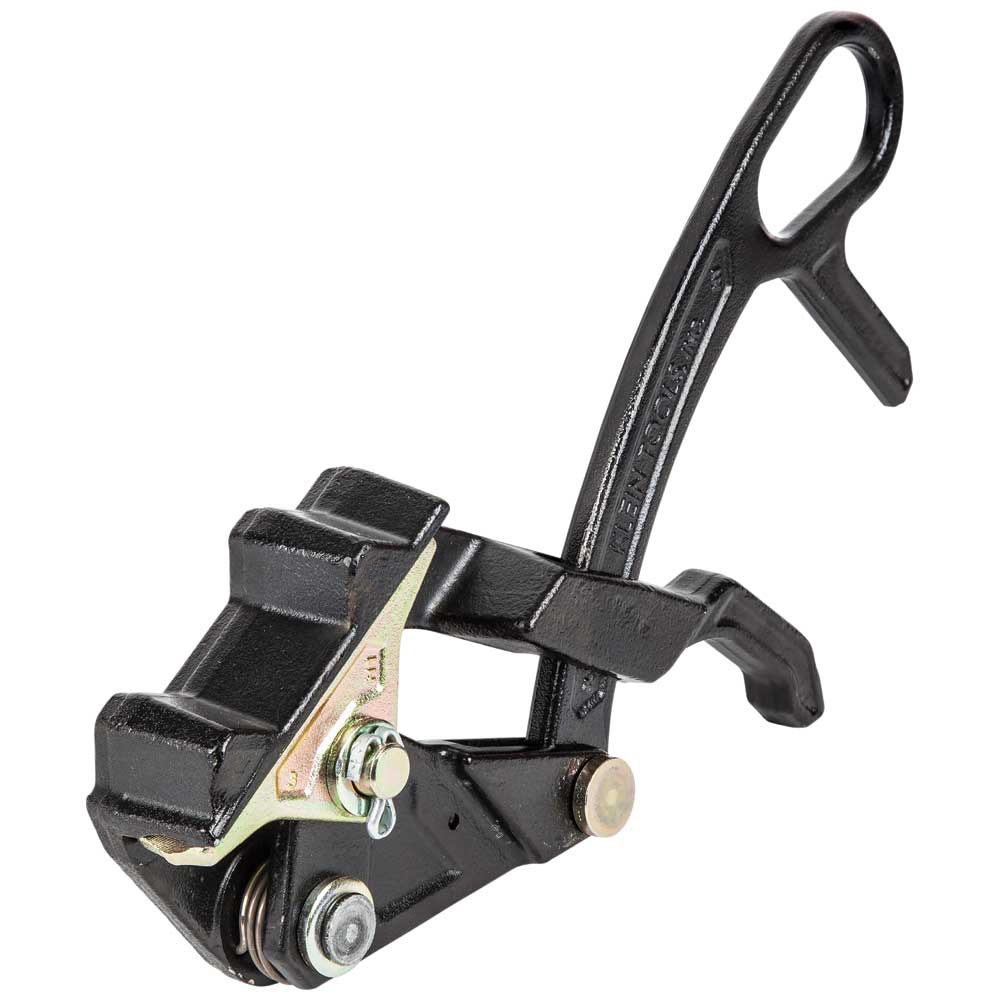

Klein Wide Range Distribution Grip (16477)

https://www.etisupply.com/web/image/product.template/1119652/image_1920?unique=13bc2ad

SKU: 16477

  • Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
  • 20-Percent lighter than the Cat. No. KT4500 grip
  • One-handed design makes for easier actuation
  • Spring closes grip on cable to hold the initial position
  • Made in the USA
  • Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Patent pending design

$ 316.26 316.26 USD $ 316.26 $ 421.68

Not Available For Sale

($ 316.26 / Units)
  • Brand

This combination does not exist.

Klein Tools
Contact Us
Klein Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

16477

Wide Range Distribution Grip

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Specifications

  • Special Features: One-Handed Grip
  • Locking Handle: No
  • Hot Latch: No
  • Material: Steel
  • Swing Latch: No
  • Cable Type: Copper, AAC, ACSR
  • Application: Wire Pulling
  • Standard: —
  • Cable Diameter: 0.162 to 0.883'' (4.11 to 22.42 mm)
  • Type: Parallel Jaw Grip
  • Spring: Yes
  • Jaw Type: Round
  • Code Word: Osprey, Hen, Hawk, Flicker, Pelican, Lark, Ibis, Brant, Chickadee, Oriole, Linnet, Merlin, Ostrich, Partridge, Waxwing, Penguin, Cochin, Brahma, Dorking, Dotterel, Pigeon, Guinea, Leghorn, Quail, Minorca, Raven, Petrel, Robin, Grouse, Sparate, Sparrow, Swanate, Swan, Turkey, Dahlia, Mistletoe, Zinnia, Hyacinth, Cosmos, Syringa, Goldentuft, Canna, Daffodil, Tulip, Peony, Daisy, Laurel, Sneezewart, Valerian, Oxlip, Phlox, Aster, Poppy, Pansy, Iris, Rose, Peachbell
  • Teeth Type: Fine
  • Overall Width: 6.5 in (16.5 cm)
  • Overall Height: 1.25 in (3.2 cm)
  • Overall Length: 10 in (25.4 cm)
  • Maximum Safe Load (lb): 5000
  • Jaw Length (Inch): 3.31
  • Maximum Safe Load (kg): 2268
  • Weight: 2.9 lb
  • Jaw Length (cm): 8.4
  • UPC: 092644470721

Additional Information

Warranty
Compliance

Warnings

  • Grips are to be used for temporary installation, not for permanent anchorage.
  • When used on/or near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
