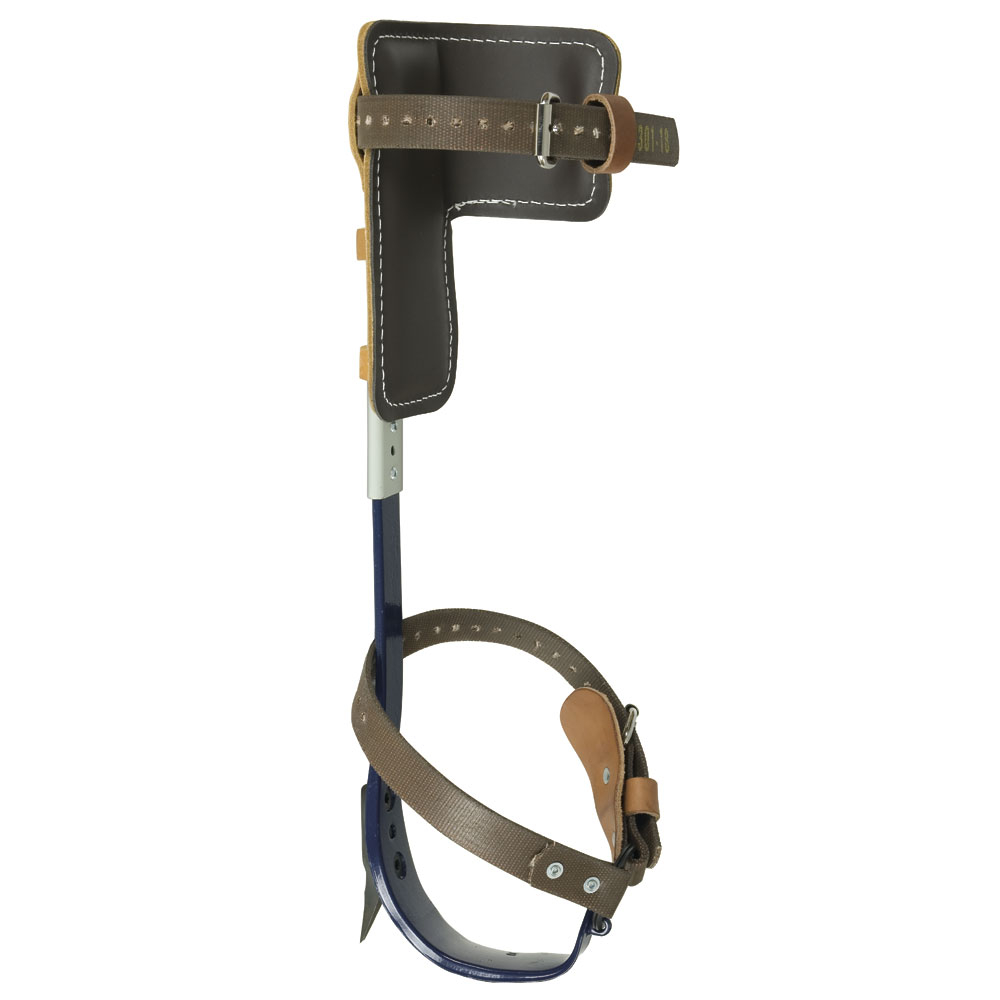

Pole Climber Set 1-1/2-Inch Gaffs (CN1972AR Series)

Details

Klein's Pole Climber set includes the pads, steel sleeves, leg irons, 1-1/2-Inch gaffs, split rings and nylon calf and ankle straps. The secure sleeve and leg iron connections are adjustable in 1/4-Inch (0.6 cm) increments. Contoured leg irons help position gaffs securely and comfortably. The replaceable gaffs firmly attach to the leg iron with a center pin and two TORX® screws. High-grade leather climber pads are cushioned for maximum comfort. Klein Tools has been providing occupational protective equipment to linemen since the first telegraph poles were strung. Klein components should not be interchanged with components made from other manufacturers because Klein cannot guarantee that those components are properly designed or are free of defects in materials or workmanship.

Key Features

• 8 x 8-Inch (20.3 x 20.3 cm) cushioned, high-grade leather climber pads for maximum comfort
• Neoprene-impregnated nylon climber straps for long-lasting life
• Secure sleeve and leg iron connection. Two slotted hex-head bolts with lock washers and barrel-type nuts join the steel sleeve and leg iron together
• Steel split ring secures ankle strap in place and allows for quick replacement
• 4-7/16-Inch (11.3 cm) wide stirrup provides greater foot support
• Contoured leg irons help position gaffs securely and comfortably
• Replaceable gaff firmly attaches to the leg iron with a center pin and two TORX® screws
• C.C.A. pole gaffs designed to penetrate the hardest salt-treated poles
• To determine size needed, measure from instep to 1-Inch (2.5 cm) below knee
• Sold in pairs only

Specifications

• Length: 15'' to 19'' (38.1 to 48.3 cm) or 17'' to 21'' (43.2 to 53.3 cm); see Available SKUs
• Gaff Size: 1-1/2'' (3.8 cm)
• Adjustment Increments: 1/4'' (0.6 cm)
• Climber Pad Size: 8'' x 8'' (20.3 x 20.3 cm)
• Stirrup Width: 4-7/16'' (11.3 cm)
• Weight: 6 lb (2.7 kg)
• Replacement Ankle Strap Cat. No.: 5301-20
• Replacement Calf Strap Cat. No.: 5301-18
• Replacement Gaff Cat. No.: 72
• Replacement Pad Cat. No.: 8210
• Sold As: Pair

Additional Information

Available SKUs

Warnings

• A fall could result in serious injury or death. Do not use unless properly trained. Read and follow all instructions and warnings.
• Improper sharpening of gaffs and the use of pole or tree climbers for purposes other than specified here can result in serious injury or death.
• Pole and tree climbers must not be used without first reading, understanding, and following these instructions. Failure to read, understand and follow all instructions may result in serious injury or death.
• Climbing equipment is for use by properly trained professionals only.
• Always visually check that all buckles are properly closed before use.
• Never punch holes in or alter a strap or climber.
• If any equipment has arrested a fall, immediately destroy and discard it so it can never be used again.
