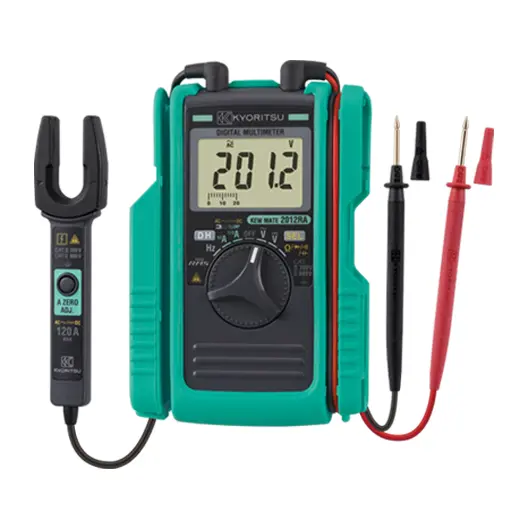

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal

Price:

$ 208.00

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
  2. Shop
  3. Clamp Sensors
  4. Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal
Kyoritsu 8312 Power Supply Adapter (100 ~ 240V)
Kyoritsu 8312 Power Supply Adapter (100 ~ 240V)
$ 176.00
$ 176.00
Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal
Kyoritsu KM2001A DMM with 10mm open jaw AC/DC Clamp Sensor *Renewal
$ 170.00
$ 170.00

Kyoritsu KM 2012RA DMM with 12mm open jaw AC/DC Clamp Sensor with True RMS *Renewal

https://www.etisupply.com/web/image/product.template/1058256/image_1920?unique=b43e63a

$ 208.00 208.0 USD $ 208.00

Not Available For Sale

($ 208.00 / Units)
  • Brand

This combination does not exist.

Digital Multimeter
Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR

KEW MATE 2012RA

Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A

  • Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 120A
  • Cable strength increased with robust cable protection
  • Test probe can be fixed to the holster
  • Can measure AC/DC current and voltage
  • Pocket size and heavy duty design
  • Test lead cap to protect from short circuit accident
  • The open jaws are thin, perfect to clamp wires even in tight spaces


3D View

Video

Product Overview

New cable rubber protection

Application examples

Specification

DC V600.0mV/6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.0%rdg±3dgt
AC V6.000/60.00/600.0V
(Input impedance: Approx. 10MΩ)
±1.5%rdg±5dgt (45 to 400Hz)
DC A60.00/120.0A
±2.0%rdg±8dgt (60A)
±2.0%rdg±5dgt (120A)
AC A60.00/120.0A
±2.0%rdg±5dgt (45 to 65Hz)
Ω600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ
±1.0%rdg±5dgt (600Ω/6/60/600kΩ)
±2.0%rdg±5dgt (6MΩ)
±3.0%rdg±5dgt (60MΩ)
Continuity buzzerBuzzer sounds below 35±25Ω
Diode test2.000V
±3.0%rdg±5dgt
Open circuit voltage: Approx. 2.7V
Capacitance400.0nF/4.000/40.00µF
±2.5%rdg±10dgt
Frequency(AC A) 99.99/400.0Hz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (400Hz)
(AC V) 99.99/999.9Hz/9.999/99.99/300.0kHz
±0.2%rdg±2dgt (100Hz)
±0.1%rdg±1dgt (1000Hz/10/100/300.0kHz)
(Input sensitivity Current: more than 6A Voltage: more than 6V [to 10kHz]/more than 20V [10 to 300kHz])
Conductor sizeØ12mm max.
Applicable standardsIEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS)
Power sourceR03 (AAA)(1.5V) × 2
* Continuous measuring time: DCV: approx. 150hours, ACA: Approx. 25hours (Auto power save: Approx. 15 minutes)
Dimension128 (L) × 92 (W) × 27 (D) mm
WeightApprox. 220g (including batteries)
Accessories

R03 (AAA) × 2

Instruction manual

Optional accessories9107 (Soft case)
