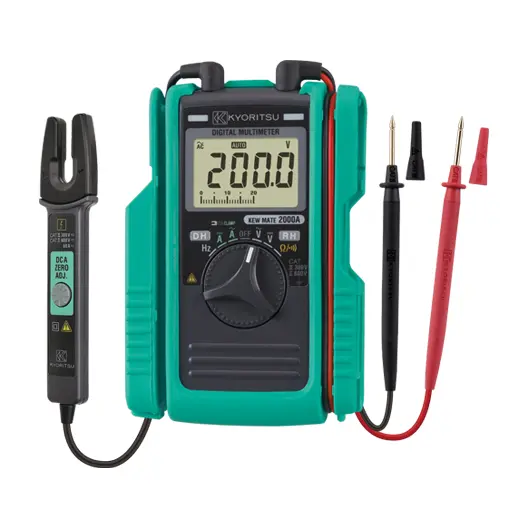

Kyoritsu KM2000A DMM with 6mm open jaw AC/DC Clamp Sensor *Renewal
DIGITAL MULTIMETER WITH AC/DC CLAMP SENSOR
KEW MATE 2000A
Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 60A
- Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 60A
- Cable strength increased with robust cable protection
- Test probe can be fixed to the holster
- Can measure AC/DC current and voltage
- Pocket size and heavy duty design
- Test lead cap to protect from short circuit accident
- The open jaws are thin, perfect to clamp wires even in tight spaces
Product Overview
New cable rubber protection
Application examples
Specification
| DC V | 340.0mV/3.400/34.00/340.0/600V (Input Impedance: Approx. 10MΩ) ±1.5%rdg±4dgt |
| AC V | 3.400/34.00/340.0/600V (Input Impedance: Approx. 10MΩ) ±1.5%rdg±5dgt [50 to 400Hz] |
| DC A | 60.0A ±2%rdg±5dgt |
| AC A | 60.0A ±2%rdg±5dgt (50/60Hz) |
| Ω | 340.0Ω/3.400/34.00/340.0kΩ/3.400/34.00MΩ ±1%rdg±3dgt (0 to 340kΩ) ±5%rdg±5dgt (3.4MΩ) ±15%rdg±5dgt (34MΩ) |
| Continuity buzzer | Buzzer sounds below 30±10Ω (Continuity buzzer works on 340Ω range only) |
| Frequency | (AC A) 3.400/10.00kHz ±0.1%rdg±1dgt (AC V) 3.400/34.00/300.0kHz ±0.1%rdg±1dgt (Input sensitivity Current: more than 15A, Voltage: more than 30V) |
| Conductor size | Ø6mm max. |
| Applicable standards | IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS) |
| Power source | R03 (AAA)(1.5V) × 2 * Continuous measuring time: Approx. 45 hours (Auto power save: Approx. 10 minutes) |
| Dimension | 128(L) × 87(W) × 24(D)mm |
| Weight | Approx. 210g (including batteries) |
| Accessories | R03 (AAA) × 2 Instruction Manual |
| Optional accessories | 9107 (Soft case) |
Accessories
Catalog & Document
- Product Catalog
- KEW MATE 2000A Product Catalog (English)（1.02 MB）
- KEW MATE 2000A Product Catalog (Arabic)（2.88 MB）
- KEW MATE 2000A Product Catalog (French)（2.71 MB）
- KEW MATE 2000A Product Catalog (Indonesian)（2.91 MB）
- KEW MATE 2000A Product Catalog (Spanish)（2.71 MB）
- KEW MATE 2000A Product Catalog (Thai)（2.94 MB）
- KEW MATE 2000A Product Catalog (Vietnamese)（2.93 MB）
- Instruction Manual
- KEW MATE 2000A Instruction Manual (English)（1.01 MB）
- KEW MATE 2000A Instruction Manual (Arabic)（696.47 KB）
- KEW MATE 2000A Instruction Manual (French)（565.91 KB）
- KEW MATE 2000A Instruction Manual (Indonesian)（593.30 KB）
- KEW MATE 2000A Instruction Manual (Spanish)（565.31 KB）
- KEW MATE 2000A Instruction Manual (Thai)（595.58 KB）
- KEW MATE 2000A Instruction Manual (Vietnamese)（685.06 KB）
| Brand | Kyoritsu |
