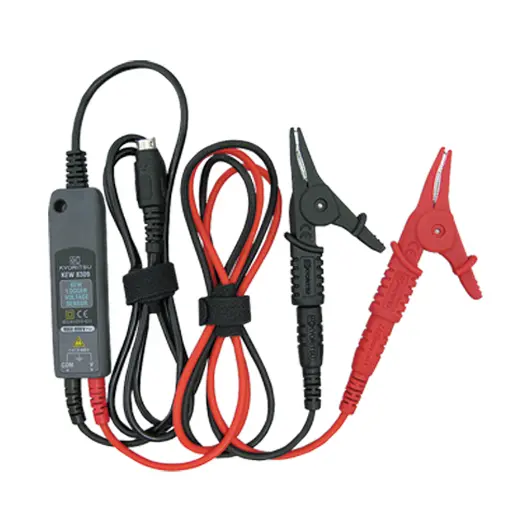

Kyoritsu 8309 Voltage Sensor for Model 5020 (6V - 600V)
VOLTAGE SENSOR
KEW 8309
Floating voltage can be measured
Floating voltage can be measured
*Floating voltage:
phase to phase voltage not grounded
3D View
Product Overview
Examples of connection
Single-phase 2-wire
Three-phase 4-wire
3 voltage sensors are used.
Three-phase 3-wire
Measuring the floating voltage using 3 voltage sensors.
Specification
| Max. input voltage | AC 600Vrms(sin) , 848.4Vpeak |
| Input system | Differential input (can measure floating voltage) |
| Output voltage | AC 0 to 60mV (output/input: 0.1mV/V) |
| Measuring ranges | 6 to 600V |
| Accuracy (Frequency range) | ±1.0%rdg±0.1mV (50/60Hz) |
| Input impedance | Approx. 3.4MΩ |
| Output impedance | Approx. 180Ω |
| Output connector | MINI DIN 6PIN |
| Applicable standards | IEC 61010-1 CAT Ⅲ 600V pollution degree 2 IEC 61010-031, IEC 61326 (EMC) |
| Location for use | Altitude up to 2000m , Indoors |
| Operating temperature and humidity range | -10 to 50ºC , relative humidity 85% or less (no condensation) |
| Dimension | 87(L)×26(W)×17(D)mm (excluding protrusions) |
| Weight | Approx. 135g |
| Accessories | Instruction manual |
| Optional Accessories | 7185 (Extension cable) |
