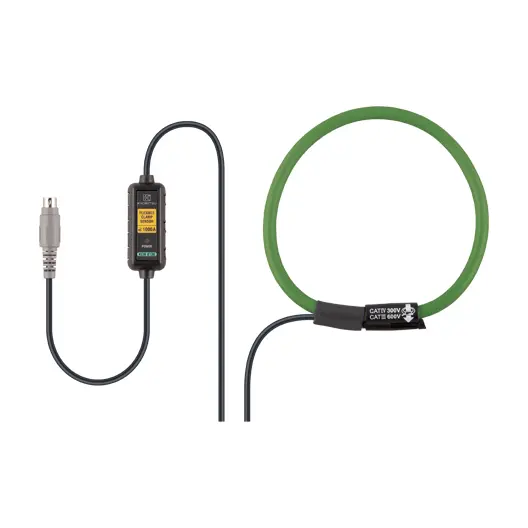

Kyoritsu 8130 Flexible Clamp Sensor 1000A (jaw: 110mm dia.)

Price:

$ 384.00

Kyoritsu 8130 Flexible Clamp Sensor 1000A (jaw: 110mm dia.)
  2. Shop
  3. Clamp Sensors
  4. Kyoritsu 8130 Flexible Clamp Sensor 1000A (jaw: 110mm dia.)
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu 8130 Flexible Clamp Sensor 1000A (jaw: 110mm dia.)

https://www.etisupply.com/web/image/product.template/1058358/image_1920?unique=dc15e26

$ 384.00 384.0 USD $ 384.00

Not Available For Sale

($ 384.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

FLEXIBLE CLAMP SENSOR

KEW 8130

Ø110mm

  • Can measure AC current up to 1000A
  • Flexible and light weight by the air core coil used at the sensor part
  • Designed to meet the international safety standard IEC 61010-1 CAT IV 300V, CAT III 600V

Product Overview

Applicable model5010(*), 5020(*), 5050(*), 6300, 6305, 6310, 6315

* Please check the "Applicable model list" before using the product.

Specification

Conductor sizemax.Ø110mm
Rated currentAC 1000A
Output voltageAC 500mV / 1000A (AC 0.5mV/A)
Accuracy±0.8%rdg±0.2mV (45Hz to 65Hz)
±1.5%rdg±0.4mV (40Hz to 1kHz)
Phase shiftwithin ±2.0° (45Hz to 65Hz)
Cable lengthApprox. 3m
Output connectorMINI DIN 6PIN
Output impedance100Ω or less
Applicable standardsIEC 61010-1 , IEC 61010-2-030
IEC 61010-2-032 CAT IV 300V / CAT III 600V Pollution degree 2
IEC 61326
Operating temperature and humidity range-10 to 50°C , relative humidity 85% or less (no condensation)
WeightApprox. 180g
Accessories9095 (Carrying case)
Instruction manual , Cable marker

Accessories

Catalog & Document

Brand Kyoritsu
