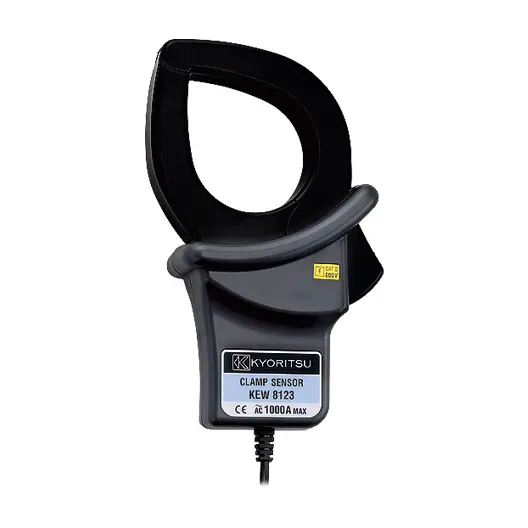

Kyoritsu 8123 Load current Clamp sensor 1000A AC (jaw: 55mm dia.)

Price:

$ 214.00

Kyoritsu 8123 Load current Clamp sensor 1000A AC (jaw: 55mm dia.)
  2. Shop
  3. Kyoritsu 8123 Load current Clamp sensor 1000A AC (jaw: 55mm dia.)
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu 8123 Load current Clamp sensor 1000A AC (jaw: 55mm dia.)

https://www.etisupply.com/web/image/product.template/1058352/image_1920?unique=dc15e26

$ 214.00 214.0 USD $ 214.00

Not Available For Sale

($ 214.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

LOAD CURRENT CLAMP SENSOR

KEW 8123

Ø55mm

Ø55mm


Product Overview

Applicable model5010, 5020, 5050(*)

* Please check the "Applicable model list" before using the product.

Specification

Conductor sizeØ55mm
Rated currentAC 1000A
Output voltageAC 500mV/1000A (AC 0.5mV/A)
Accuracy±2.0%rdg±0.3mV (50/60Hz)
±3.0%rdg±0.5mV (40Hz to 1kHz)
Cable lengthApprox. 2m
Output connectorMINI DIN 6PIN
Output impedanceApprox. 1.5Ω
Applicable standardsIEC 61010-1 , IEC 61010-2-032 CAT III 600V pollution degree 2 , IEC 61326
Operating temperature and humidity range0 to 40°C , relative humidity 85% or less (no condensation)
Dimension170(L) x 105(W) x 48(D) mm
WeightApprox.360g
Accessories9094 (Carrying case)
Instruction manual , Cable marker
Optional Accessories7146 (Banana Ø4 adjuster plug)
7185 (Extension Cable)

Optional Accessories

Catalog & Document

Brand Kyoritsu
