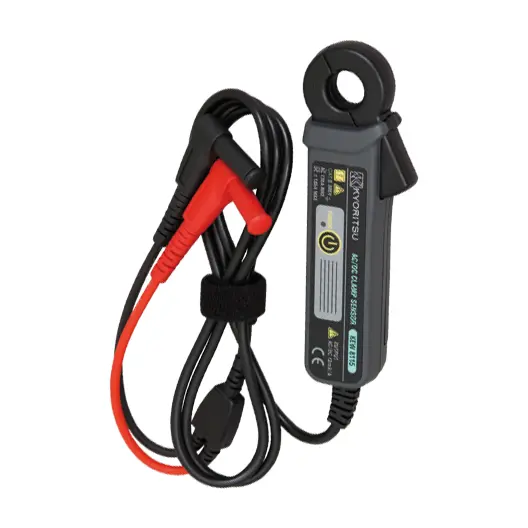

Kyoritsu 8115 AC/DC Clamp Sensor

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

CLAMP SENSORS / ADAPTOR

KEW 8115

Clamp sensor for AC/DC current measurement compatible with digital multimeters

• Clamp sensor for AC/DC current measurement compatible with digital multimeters

Measuring range	AC 0.1 to 130Arms (185Apeak)	DC 0 to ±180A
Output voltage	AC 10mV/A	DC 10mV/A
Accuracy	±1.2%rdg±0.4mV (50/60Hz) ±2.5%rdg±0.4mV (40 to 1kHz)	±1.2%rdg±0.4mV (*)
Low battery warning	2.2V±0.2V or less - Red LED flash (1.9V±0.2V - Automatically power off)
Conductor size	Max. Ø12mm
Withstand voltage	AC 3540V (RMS 50/60Hz) for 5 sec.
Operating temperature & humidity range	-10 to 55ºC, relative humidity 85% or less (no condensation)
Output impedance	Approx. 10Ω or less
Applicable standards	IEC 61010-1 CAT III 300V Pollution degree 2 , IEC 61010-2-032 , IEC 61326-1
Power source	DC3V (size AAA alkaline battery LR03×2pcs) * Continuous use: Approx. 40 hours (Auto power off: Approx. 20 minutes)
Cord length	Approx. 1,200mm
Output connector	Φ4mm banana plug
Dimension	127(L)×42(W)×22(D) mm
Weight	Approx. 140g
Accessories	9095 (Carrying case) LR03×2 , Instruction manual

*This accuracy is defined after the completion of zero adjustment under connection to a DMM.
