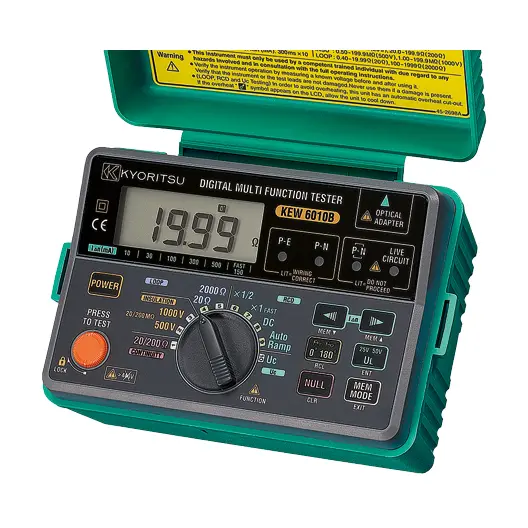

Kyoritsu 6010B Multi-Function Tester (6 in one) [Rated Volt: 230V+10~15% 50Hz]

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

MULTI FUNCTION INSTALLATION TESTER

KEW 6010B

Designed to IEC 61010-1, IEC 61557

Designed to IEC 61010-1, IEC 61557
Data Memory : 300 measured results
Download results to PC by using 8212 data communication adapter through optical RS-232C port

Continuity Testing
	Measuring Range	20/200Ω (Auto-Ranging)
Open Circuit Voltage	> 6V
Short Circuit Current	> 200mA
Accuracy	±(3%rdg + 3dgt)
Insulation Resistance Testing
	Measuring Range	20/200MΩ (Auto-Ranging)
Test Voltage	500/1000V
Open Circuit Voltage	+20 to 0%
Rated Current	> 1mA
Accuracy	± (3%rdg + 3dgt)
Loop Impedance Testing
	Impedance Range	20/2000Ω
Rated Voltage	230V + 10 to 15%(50Hz)
Normal Test Current	20Ω:25A/10ms 2000Ω:15mA/350ms max.
Accuracy	±(3%rdg + 8dgt)
RCD Testing
	Test Current (Test Current Duration)	x1/2, x1	10, 30, 100, 300, 500mA (2000ms)
Fast	150mA (50ms)
DC	10, 30, 100, 300mA (2000ms), 500mA (200ms)
Auto Ramp	Goes up by 10% from 20% to 110% of IΔn. 300ms×10
Rated Voltage	230V + 10 to 15% [50Hz]
Accuracy	Test Current	x1/2: -8 to 2% x1, FAST: +2%+8% DC: ±10% Auto Ramp: ±4%
Trip Time	±(1%rdg + 3dgt)
Uc Testing
	Measuring Range	100V
Rated Voltage	230V + 10 to 15% (50Hz)
Test Current	5mA at IΔn = 10mA 15mA at IΔn = 30/100mA 150mA at IΔn = 300/500mA
Accuracy	+5% +15%rdg±8dgt
Applicable standards	IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2, IEC 61010-2-034, IEC 61557-1, 2, 3, 4, 6, 10, IEC 60529 (IP40)
Power source	R6/LR6 × 8
Dimension	115(L) × 175(W) × 86(D)mm
Weight	Approx. 840g
Accessories	7122B (Test leads) KAMP10 (Test lead with IEC connector)*1 8923 (Fuse[0.5A/600V] × 1 (included), 1 (spare) 9092 (Cord case) 9121 (Shoulder strap) Shoulder pad Instruction manual, R6(AA) × 8
Optional Accessories	7133B (Distribution board test leads) 8212-USB (USB adapter)

Please download “KEW Report(software)” from here.

*1 KAMP10 (AU): Australian plug

KAMP10 (UK): British plug (13A)

KAMP10 (EU): European SHUKO plug

KAMP10 (SA): South African plug
