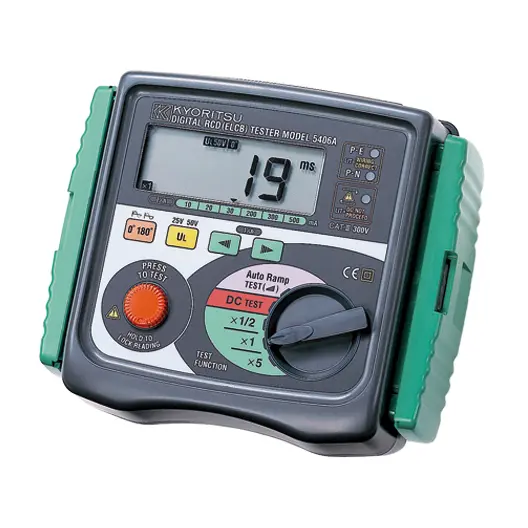

Kyoritsu 5406A RCD Tester [Operating Volt: 230V+10~15% (195V - 253V) 50Hz]

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

RCD TESTER

MODEL 5406A

Custom microprocessor controlled for highest accuracy and reliability

Custom microprocessor controlled for highest accuracy and reliability
3 LEDs for checking correct wiring status
0 and 180 degree phase angle switch permits quick tests and consistent readings
Digital read-out of tripping time
Test of a large kind of RCDs : Standard, Selective, AC and A(DC sensitive breakers)
Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings
Large custom digital display readout
Visual indication of reversed phase and neutral wiring at socket
Designed to IP54 Rating
Complies with IEC 61557

Rated Tripping Current	10/20/30/200/300/500mA
Fault Condition Settings	× 1/2, × 1, × 5, × DC, AUTO RAMP
Trip Current Duration	1000ms, 200ms (×5)
Lowest Resolution	1ms
Trip Time Accuracy	±0.6%rdg±4dgt
Operating Voltage	230V+10 to 15% (195 to 253V) 50Hz
Applicable standards	IEC 61557-1,-6 IEC 61010-1 CAT Ⅲ 300V Pollution Degree 2 IEC 61010-2-031 IEC 60529 (IP54)
Dimension	167(L) × 186(W) × 89(D)mm
Weight	Approx. 800g
Accessories	Molded plug test lead* 9121 (Shoulder Strap) 9147 (Cord case) Instruction Manual
Optional accessories	7121B (Distribution board test leads)

* 7123(AU): Australian plug

7124(UK): Britich plug(13A)

7125(EU): European SHUKO plug

7126(SA): South african plug
