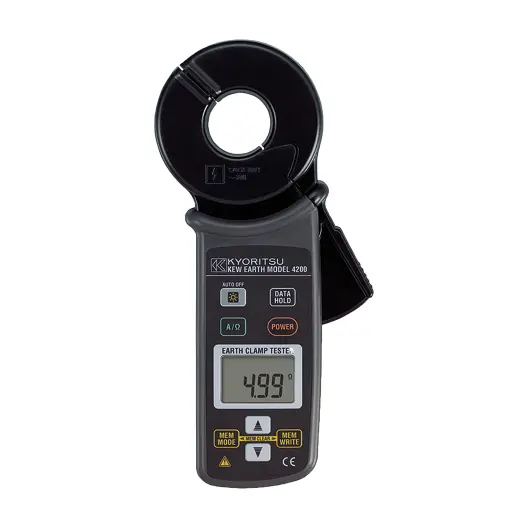

Kyoritsu 4200 Earth Clamp Tester (jaw: 32mm dia.)

This combination does not exist.

Add to Cart

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

EARTH CLAMP TESTER

MODEL 4200

The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes in multi-earthing systems

The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes in multi-earthing systems
True RMS leakage or phase current readings from 0.1mA to 30.0A provides vital additional information in earthing networks
Filter function offers increased immunity to electrical noise and a Noise mark appears in excessively high noisy environments
Memory function up to 100 data

Note: A single earthing can not be measured. (Only for Multiple Earthing System)

Earth resistance (Auto-ranging)	20.00/200.0/1500Ω ±1.5%±0.05Ω(0.00 to 20.99Ω)*1 ±2%±0.5Ω(16.0 to 99.9Ω) ±3%±2Ω(100.0 to 209.9Ω) ±5%±5Ω(160 to 399Ω) ±10%±10Ω(400 to 599Ω) Values are displayed, but accuracy isn't guaranted(600 to 1580Ω)
AC current (50/60Hz) (Auto-ranging)	100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 to 104.9mA) ±2%(80mA to 31.5A)
Operating indication	Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation
Over-range indication	"OL"is displayed when input exceeds the upper limit of a measuring range
Response time	Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current)
Sample rate	Approx. 1 times per second
Current consumption	Approx. 50mA (max.100mA)
Measurement time	Approx.12 hours (when R6 is used) Approx.24 hours (when LR6 is used)
Auto power off	Turns power off about 10 minutes after the last button operation.
Conductor size	Approx. Ø32mm
Applicable standards	IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC)
Power source	LR6/R6 (AA)(1.5V) x 4
Dimension	246(L)×120(W)×54(D)mm
Weight	Approx. 780g (including batteries)
Accessories	8304 (Resister for operation check) 9166 (Carrying case[Hard]) R6 x 4, Instruction manual

* Crest factor ≦ 2.5 (50/60Hz, peak value shall not exceed 60A)

*1 4 counts or less are corrected to 0.
