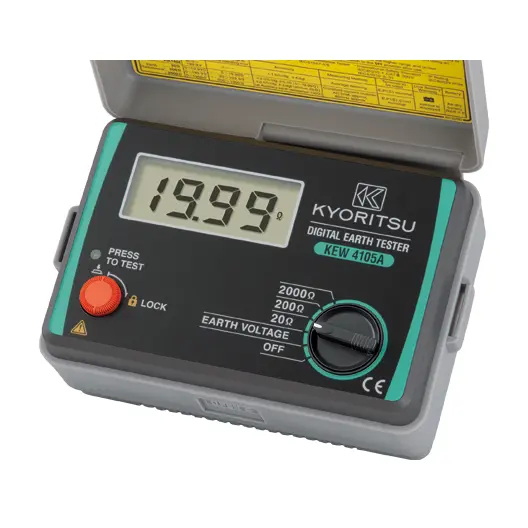

Kyoritsu 4105A Digital Earth Resistance Tester with Soft Case

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

EARTH TESTER

KEW 4105A

Soft Case Model

3-Pole and 2-Pole Earth Resistance
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
Dust and drip proof (designed to IEC 60529 IP54)
Large, easy-to-read LCD digital display.
Designed to meet IEC 61010-1 safety standard
Capable of measuring earth voltage
Small and lightweight. Shock resistant new case material
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test

Soft case

*Please check here for the hard case model.

Adapter to enable use of other test leads. (MODEL 8259)

Earth resistance measurement	20Ω	200Ω	2000Ω
	Measuring range	0.00 to 1999Ω
Display range	0.00 to 19.99Ω	0.0 to 199.9Ω	0 to 1999Ω
Accuracy	±2%rdg±0.1 Ω	±2%rdg±3dgt
Earth voltage measurement
	Measuring range	0 to 200 V AC (50,60Hz)
Display range	0.0 to 199.9 V
Accuracy	±1%rdg±4dgt
Overload protection	Earth resistance : 280V AC (10 seconds) Earth voltage : 300V AC (1 minute)
Applicable standards	IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
Power source	R6(AA)(1.5V) × 6
Dimension	105(L) × 158(W) × 70(D) mm (including case lid)
Weight	Approx. 550g (including batteries and case lid)
Accessories	7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes[2 spikes/1set]) 9121 (shoulder strap) 9084 (Carrying case) R6(AA) × 6, Instruction manual
Optional accessories	7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9165 (Carrying case [Hard])
