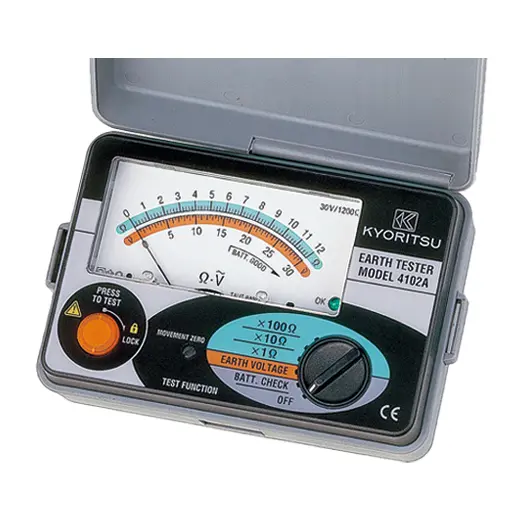

Kyoritsu 4102A Analogue Earth Resistance Tester with Soft Case

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

EARTH TESTER

MODEL 4102A

Soft Case Model

3-Pole and 2-Pole Earth Resistance
The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes
Dust and drip proof (designed to IEC 60529 IP54)
Earth resistance value can be read directly from the scale
Designed to meet IEC 61010-1 safety standard
Capable of measuring earth voltage
Small and lightweight. Shock resistant new case material
2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test
Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by “OK” lamp
Lead wire connection to C and E terminals is good when “OK” lamp is illuminated

Adapter to enable use of other test leads. (MODEL 8259)

Earth resistance measurement	× 1ΩRange	× 10Ω	× 100Ω
	Measuring range	0 to 12Ω	0 to 120Ω	0 to 1200Ω
Accuracy	±3% of full scale
Earth voltage measurement
	Measuring range	0 to 30 V AC (50/60Hz)
Accuracy	±3% of full scale
Overload protection	Earth resistance : 276V AC/DC (10 seconds) Earth voltage : 276V AC/DC (10 seconds)
Applicable standards	IEC 61010-1 CAT Ⅲ300 V Pollution degree 2 IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
Power source	R6(AA)(1.5V) × 6
Dimension	105(L) × 158(W) × 70(D) mm (including case lid)
Weight	Approx. 600g (including batteries and case lid)
Accessories	7095A (Earth resistance test leads (Red 20m, Yellow 10m, Green 5m/1set)) 7127B (Simplified measurement probe) 8032 (Auxiliary earth spikes[2 spikes/1set]) 9121 (shoulder strap) 9084 (Carrying case) R6(AA) × 6, Instruction manual
Optional accessories	7245A (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9164 (Carrying case [Hard])
