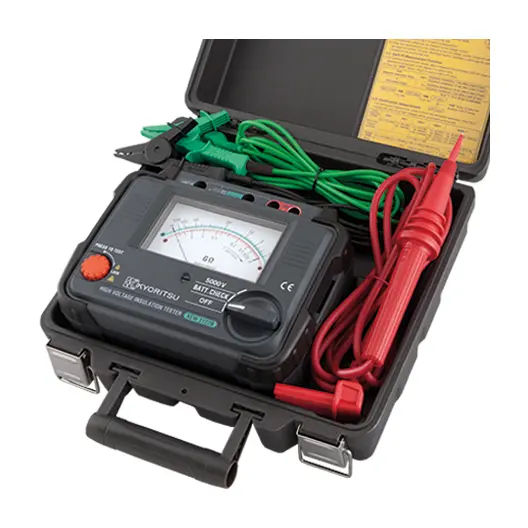

Kyoritsu 3122B 5kV Analogue High Voltage Insulation Tester

Price:

$ 866.00

Kyoritsu 3122B 5kV Analogue High Voltage Insulation Tester
  2. Shop
  3. Kyoritsu 3122B 5kV Analogue High Voltage Insulation Tester
Kyoritsu 3121B 2.5kV Analogue High Voltage Insulation Tester
Kyoritsu 3121B 2.5kV Analogue High Voltage Insulation Tester
$ 760.00
$ 760.00
Kyoritsu 3123A 10kV Analogue High Voltage Insulation Tester
Kyoritsu 3123A 10kV Analogue High Voltage Insulation Tester
$ 1,280.00
$ 1,280.00

Kyoritsu 3122B 5kV Analogue High Voltage Insulation Tester

https://www.etisupply.com/web/image/product.template/1058293/image_1920?unique=b43e63a

$ 866.00 866.0 USD $ 866.00

Not Available For Sale

($ 866.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

HIGH VOLTAGE INSULATION TESTER

KEW 3122B

Easy and simple operation

  • Easy and simple operation
  • Automatic ranges, indicated by different LEDs
  • Newly-designed alligator clip
  • It comes with a tough hard case
  • Safety standard IEC 61010-1 CAT Ⅳ 300V

Specification

Insulation Resistance
Test voltage5000V
Measuring ranges5/200GΩ (Auto-ranging)
Accuracy

0.2 to 100GΩ: ±5%rdg

0 to 0.2GΩ, 100GΩ to ∞: ±10%rdg or 0.5% of scale length

General
Applicable standardsIEC 61010-1, IEC 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-2-034, IEC 61010-031, IEC 61326-1, 2-2
Power sourceDC12V : LR14/R14 × 8pcs
Dimension177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Hard case)
WeightApprox. 1.7kg
Accessories7165A (Line probe)
7264 (Earth cord)
7265 (Guard cord)
8019 (Hook type prod)
9183 (Carrying case[Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
Optional accessories7168A (Line probe with aligator clip)
7253 (Longer line probe with alligator clip)
8324 (Adapter for recorder)

Accessories

Optional Accessories

Catalog & Document

Brand Kyoritsu
