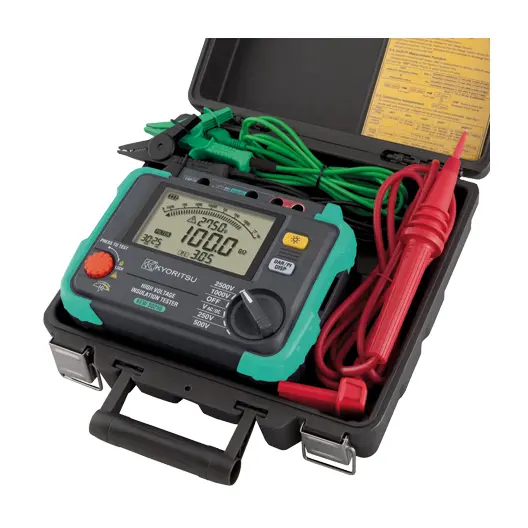

Kyoritsu 3025B 2.5kV Digital High Voltage Insulation Tester*Renewal
  2. Shop
  3. Kyoritsu 3025B 2.5kV Digital High Voltage Insulation Tester*Renewal
Kyoritsu 3007A Digital Insulation Resistance Tester
Kyoritsu 3007A Digital Insulation Resistance Tester
$ 484.00
$ 484.00
Kyoritsu 3121B 2.5kV Analogue High Voltage Insulation Tester
Kyoritsu 3121B 2.5kV Analogue High Voltage Insulation Tester
$ 760.00
$ 760.00

Kyoritsu 3025B 2.5kV Digital High Voltage Insulation Tester*Renewal

https://www.etisupply.com/web/image/product.template/1058291/image_1920?unique=b43e63a

$ 1,267.00 1267.0 USD $ 1,267.00

Not Available For Sale

($ 1,267.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

HIGH VOLTAGE INSULATION TESTER

KEW 3025B

Robust & Ergonomic Design!

De Facto Standard High Voltage Insulation Testers!!

  •  Short-Circuit Current up to 1.5mA
  • Diagnosis Function of PI and DAR
  • Newly-designed alligator clip
  • It comes with a tough hard case
  • Filter function reduces noise interference for obtaining stable measurement
  • Large display with Bar Graph indication and backlight
  • Live voltage warning
  • Safety standard IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V

Specification

Insulation resistance

Test voltage250V500V1000V2500V
Measuring range0.0 to 100.0MΩ0.0 to 99.9MΩ
80 to 1000MΩ  		0.0 to 99.9MΩ
80 to 999MΩ
0.80 to 2.00GΩ		 0.0 to 99.9MΩ
 80 to 999MΩ
 0.80 to 9.99GΩ
 8.0 to 100.0GΩ
Accuracy±5%rdg±3dgt±5%rdg±3dgt±5%rdg±3dgt±5%rdg±3dgt
Short circuit current1.5mA
Rated test current0.7 to 0.9mA
at 0.25MΩ load		0.8 to 1mA
at 0.5MΩ load		1 to 1.2mA
at 1MΩ load		1 to 1.2mA
at 2.5MΩ load
Open circuit current250V +10%,-10%500V +20%,-10%1000V +20%,-0%2500V +20%,-0%

Voltage measurement

Measuring range30 to 600V AC (50/60Hz)
±30 to ±600V DC
Accuracy±2%rdg±3dgt
General
Applicable standardsIEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
IEC 61010-031, IEC 61326-1, 2-2
Power sourceDC12V : LR14/R14 × 8pcs
Dimension177 (L) × 226 (W) × 100 (D) mm
300 (L) × 315 (W) × 125 (D) mm (Carrying case [Hard])
Weight
Approx. 1.7kg (including batteries)
Approx. 4kg (including accessories)
Accessories7165A (Line probe)
7264 (Earth cord)
7265 (Guard cord)
8019 (Hook type prod)
9203 (Carrying case [Hard])
LR14 (Alkaline battery size C) × 8
Instruction manual
Optional accessories7168A (Line probe with alligator clip)
7253 (Longer line probe with alligator clip)
8302 (Adaptor for recorder)
