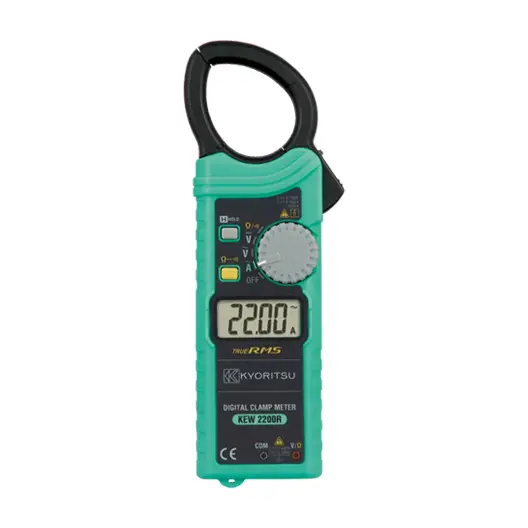

AC CLAMP METER

KEW 2200R

Ultra Slim and lightweight Handy design

  • Ultra Slim and lightweight Handy design
  • φ33mm tear drop shaped jaws
  • 1000A AC Clamp Meter
  • DMM function ACV, DCV, Ω, Continuity buzzer
  • Fuseless electronic protection on Ω/Continuity Buzzer up to 600V
  • Safety standard
    　IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V
    　IEC 61010-2-032
  • Minimum resolution 0.01A

Product Overview

Current DMM function

Specification

AC A40.00/400.0/1000A (Auto-ranging)
±1.5%rdg±5dgt (45 to 65Hz)
±2.0%rdg±5dgt (40 to 1kHz)
AC V4.000/40.00/400.0/600V (Auto-ranging)
±1.8%rdg±7dgt (45 to 65Hz)
±2.3%rdg±8dgt (65 to 500Hz)
DC V400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
±1.0%rdg±3dgt (400mV range is excluded.)
Ω400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
±2.0%rdg±4dgt (0 to 400kΩ)
±4.0%rdg±4dgt (4MΩ)
±8.0%rdg±4dgt (40MΩ)
Continuity buzzerBuzzer sounds below 50±30Ω
Conductor sizeφ33mm max.
Applicable standardsIEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2 (AC A),
                       CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)
IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC), EN 50581 (RoHS)
Power sourceR03/LR03 (AAA) (1.5V) × 2
*continuous measuring time:
Approx. 120 hours (Auto power off: Approx. 10 minutes)
Dimension190(L) × 68(W) × 20(D)mm
WeightApprox. 120g (including batteries)
Accessories7107A (Test leads),
9160 (Carrying case),
R03 (AAA) × 2, Instruction Manual

Accessories

Catalog & Document

Brand Kyoritsu
