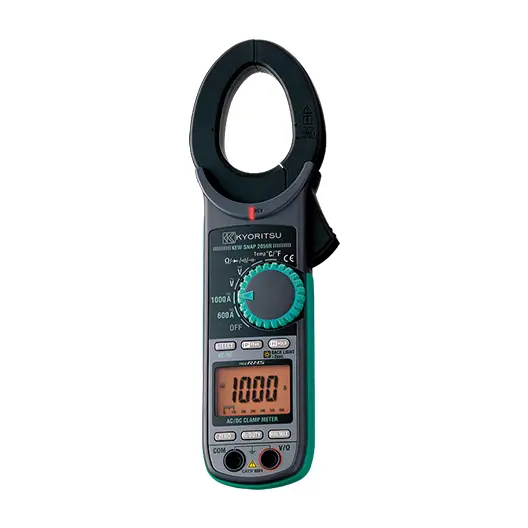

Kyoritsu 2056R Digital AC/DC Clamp Meter with True RMS (jaw: 40mm dia.) CAT IV
AC/DC CLAMP METER
KEW 2056R
Very useful for power distribution companies, power utilities and maintenance fields
- Very useful for power distribution companies, power utilities and maintenance fields
- Red LED, as “Non Contact Voltage” function, gives warning to the user on the presence of AC voltage
- Double molding gives comfortable feeling in palm
- 6039 counts with Bar Graph display
- Minimum resolution 0.1A
Specification
| AC A | 0 to 600.0/1000A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 500Hz) |
| DC A | 0 to 600.0/1000A ±1.5%rdg±5dgt |
| AC V | 6/60/600V(Auto-ranging) ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 to 400Hz) |
| DC V | 600mV/6/60/600V(Auto-ranging) ±1.0%rdg±3dgt |
| Ω | 600Ω/6/60/600kΩ/6/60MΩ (Auto-ranging) ±1%rdg±5dgt (600 to 6M) ±5%rdg±8dgt (60M) |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| Capacitance test | 400nF/4/40μF(Auto-ranging) |
| Temperature | -50 to +300ºC (With the use of Temperature probe 8216) |
| Frequency | 10/100Hz/1/10kHz(Auto-ranging) |
| DUTY | 0.1 to 99.9% |
| Conductor size | Ø40mm |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031 IEC 61010-2-032, IEC 61326 |
| Power source | R03 (1.5V) (AAA) × 2 |
| Dimension | 254(L) × 82(W) × 36(D)mm |
| Weight | Approx. 310g |
| Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional Accessories | 8216 (Temperature probe) |
Accessories
Optional Accessories
Catalog & Document
- Product Catalog
- Instruction Manual
- KEW 2056R Instruction Manual (English)（774.37 KB）
- KEW 2056R Instruction Manual (Arabic)（1.56 MB）
- KEW 2056R Instruction Manual (French)（1.18 MB）
- KEW 2056R Instruction Manual (Indonesian)（979.14 KB）
- KEW 2056R Instruction Manual (Spanish)（1.25 MB）
- KEW 2056R Instruction Manual (Thai)（1.06 MB）
- KEW 2056R Instruction Manual (Vietnamese)（1.97 MB）
| Brand | Kyoritsu |
