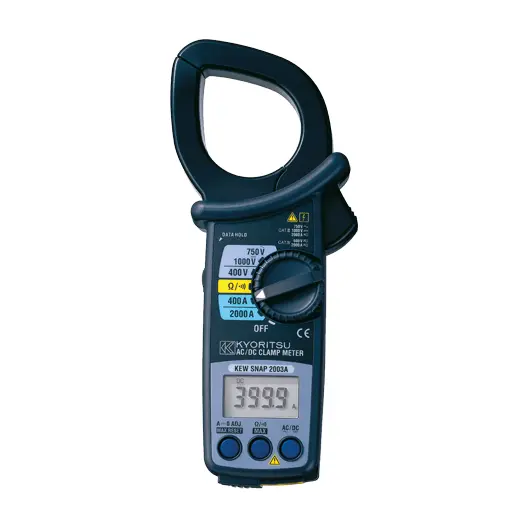

Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)

Price:

$ 502.00

Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)
  2. Shop
  3. Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
Central Tools 3C301 – STORM™ Digital Caliper, Range: 0-6”/0-150mm
$ 65.99
$ 65.99
Jonard TK-120 Fiber Prep Kit Basic
Jonard TK-120 Fiber Prep Kit Basic
$ 383.95
$ 383.95

Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)

https://www.etisupply.com/web/image/product.template/1058261/image_1920?unique=dc15e26

$ 502.00 502.0 USD $ 502.00

Not Available For Sale

($ 502.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

AC/DC CLAMP METER

KEW 2003A

Measurement of both AC and DC current with transformer jaws of large diameter

  • Measurement of both AC and DC current with transformer jaws of large diameter
  • Can measure AC and DC currents up to 2000A
  • Output terminal for recorder connection
  • AC/DC voltage, resistance measurement and continuity functions also available
  • Minimum resolution 0.1A

Specification

AC A400/2000A (0 to 1000A)
±1.5%rdg±2dgt [50/60Hz]
±3%rdg±4dgt [40 to 500Hz]
±5%rdg±4dgt [500Hz to 1kHz]

2000A (1001 to 1999A)
±3%rdg±2dgt [50/60Hz]
DC A400/2000A
±1.5%rdg±2dgt
AC V400/750V
±1.5%rdg±2dgt [50/60Hz]
±1.5%rdg±4dgt [40Hz to 1kHz]
DC V400/1000V
±1%rdg±2dgt
Ω400/4000Ω
±1.5%rdg±2dgt
Continuity buzzerBuzzer sounds below 50±35Ω
Conductor sizeØ55mm max.
Frequency response40Hz to 1kHz
OutputRecorder : DC400mV against AC/DC400A
                      DC200mV against AC/DC2000A
Safety StandardIEC 61010-1 CAT IV 600V / CAT III 1000V
IEC 61010-031 , IEC 61010-2-032
Power sourceR6 (AA) (1.5V) × 2
Dimension250(L) × 105(W) × 49(D)mm
WeightApprox. 530g
Accessories7107A (Test leads)
9094 (Carrying Case)
R6 (AA) × 2 , Instruction Manual
Optional Accessories7256 (Output cord)

Catalog & Document

Brand Kyoritsu
