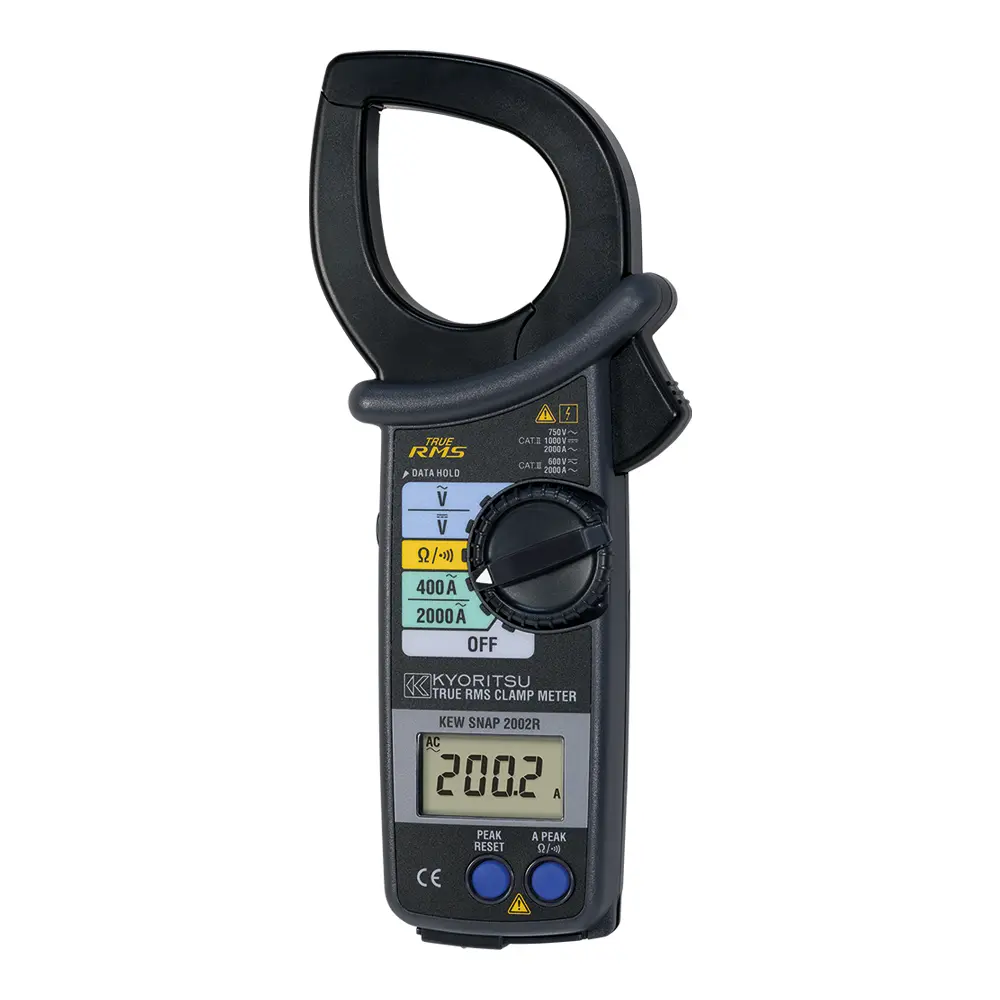

Kyoritsu 2002R Digital AC Clamp Meter with True RMS (jaw: 55mm dia.)

Price:

$ 283.00

Kyoritsu 2002R Digital AC Clamp Meter with True RMS (jaw: 55mm dia.)
  2. Shop
  3. Clamp Meters
  4. Kyoritsu 2002R Digital AC Clamp Meter with True RMS (jaw: 55mm dia.)
Kyoritsu 2002PA Digital AC Clamp Meter with Peak Hold (jaw: 55mm dia.)
Kyoritsu 2002PA Digital AC Clamp Meter with Peak Hold (jaw: 55mm dia.)
$ 258.00
$ 258.00
Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)
Kyoritsu 2003A Digital AC/DC Clamp Meter (jaw: 55mm dia.)
$ 502.00
$ 502.00

Kyoritsu 2002R Digital AC Clamp Meter with True RMS (jaw: 55mm dia.)

https://www.etisupply.com/web/image/product.template/1058260/image_1920?unique=b43e63a

$ 283.00 283.0 USD $ 283.00

Not Available For Sale

($ 283.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

AC CLAMP METER

MODEL 2002R

Can measure large AC current up to 2000A

  • Can measure large AC current up to 2000A
  • Peak hold function
  • φ55mm large tear drop shaped jaws
  • Minimum resolution 0.1A

Specification

AC A400A (0 to 400A)
±1.5%rdg±3dgt [45 to 65Hz]
±2.5%rdg±3dgt [40Hz to 1kHz]

2000A (0 to 1500A)
±2%rdg±5dgt [45 to 65Hz]
±3%rdg±5dgt [40Hz to 1kHz]

2000A (1500 to 2000A)
±4%rdg [50/60Hz]
AC V40/400/750V
±1%rdg±2dgt [45 to 65Hz]
±1.5%rdg±3dgt [40Hz to 1kHz]
DC V40/400/1000V
±1%rdg±2dgt
Ω400Ω/4/40/400kΩ
±1.5%rdg±2dgt
Continuity buzzerBuzzer sounds below 50±35Ω
Conductor sizeφ55mm max.
Frequency response40Hz to 1kHz
OutputRecorder :
DC400mV against AC400A
DC200mV against AC2000A
Safety StandardIEC 61010-1 CAT III 600V / CAT II 1000V
IEC 61010-2-031 IEC 61010-2-032
Power sourceR6 (AA) (1.5V) × 2
Dimension247(L) × 105(W) × 49(D)mm
WeightApprox. 470g
Accessories7107A (Test leads)
9094 (Carrying Case)
R6 (AA) × 2 Instruction Manual
Optional Accessories7256 (Output cord)

Catalog & Document

Brand Kyoritsu
