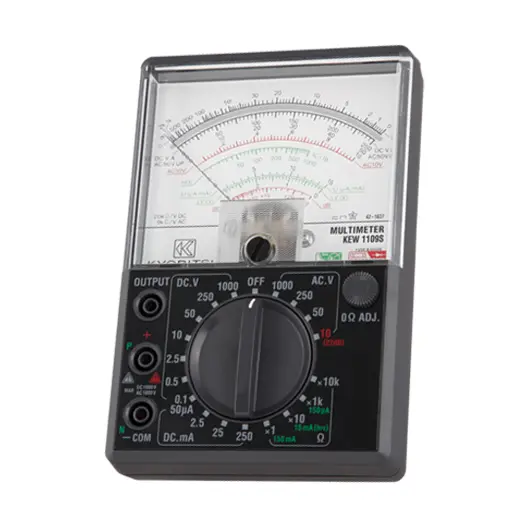

Kyoritsu 1109S Analogue Multimeter

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

ANALOG MULTIMETER

KEW 1109S

Mirrored scale for easy and accurate reading

DC V	0.1/0.5/2.5/10/50/250/1000V ±3% of FS (20kΩ/V)
AC V	10/50/250/1000V (9kΩ/V) ±3% of FS
DC A	50µA/2.5/25/250mA ±3% of FS
Ω	2/20kΩ/2/20MΩ ±3% of scale length
Decibel	-10 to +62dB
hFE	0 to 1000 (Ω × 10) ±3% of scale length
Power source	R6 (AA) (1.5V) × 2 6F22 (9V) × 1
Dimension	150(L) × 100(W) × 47(D)mm
Weight	Approx. 330g
Accessories	7066A (Test leads) 8901 (Fuse[0.5A/250V]) × 1 (included), 1 (spare) R6 (AA) × 2 6F22 × 1 Instruction Manual
Optional accessories	9168 (Carrying Case)

Do not make voltage measurements on industry power lines of 250V or higher.

Brand

Kyoritsu
