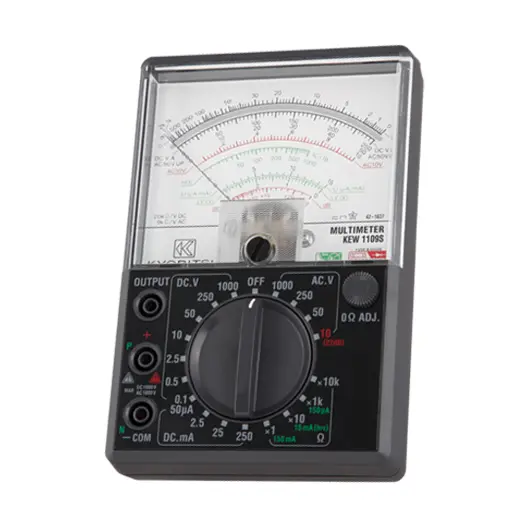

Kyoritsu 1109S Analogue Multimeter
ANALOG MULTIMETER
KEW 1109S
Mirrored scale for easy and accurate reading
- Mirrored scale for easy and accurate reading
- Output terminal to cut off DC component when measuring AC voltage
- Safety designed input terminals and test leads
Specification
| DC V | 0.1/0.5/2.5/10/50/250/1000V ±3% of FS (20kΩ/V) |
| AC V | 10/50/250/1000V (9kΩ/V) ±3% of FS |
| DC A | 50µA/2.5/25/250mA ±3% of FS |
| Ω | 2/20kΩ/2/20MΩ ±3% of scale length |
| Decibel | -10 to +62dB |
| hFE | 0 to 1000 (Ω × 10) ±3% of scale length |
| Power source | R6 (AA) (1.5V) × 2 6F22 (9V) × 1 |
| Dimension | 150(L) × 100(W) × 47(D)mm |
| Weight | Approx. 330g |
| Accessories | 7066A (Test leads) 8901 (Fuse[0.5A/250V]) × 1 (included), 1 (spare) R6 (AA) × 2 6F22 × 1 Instruction Manual |
| Optional accessories | 9168 (Carrying Case) |
Do not make voltage measurements on industry power lines of 250V or higher.
Catalog & Document
- Instruction Manual
| Brand | Kyoritsu |
