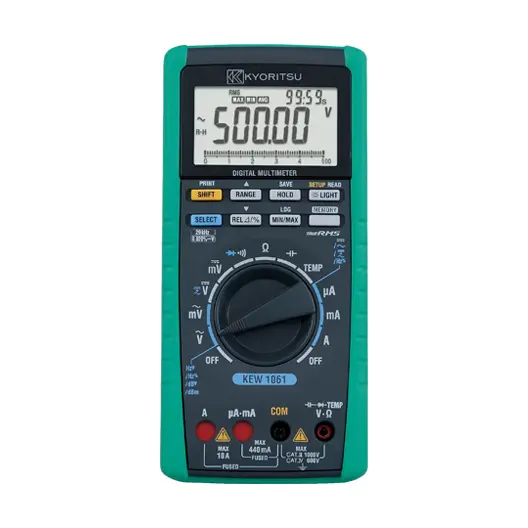

Kyoritsu 1061 Digital Multimeter

Price:

$ 627.00

Kyoritsu 1061 Digital Multimeter
  2. Shop
  3. Kyoritsu 1061 Digital Multimeter
Kyoritsu 1052 Digital Multimeter [Improved LCD type]
Kyoritsu 1052 Digital Multimeter [Improved LCD type]
$ 377.00
$ 377.00
Kyoritsu 1062 Digital Multimeter
Kyoritsu 1062 Digital Multimeter
$ 740.00
$ 740.00

Kyoritsu 1061 Digital Multimeter

https://www.etisupply.com/web/image/product.template/1058248/image_1920?unique=b43e63a

$ 627.00 627.0 USD $ 627.00

Not Available For Sale

($ 627.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Kyoritsu


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DIGITAL MULTIMETER

KEW 1061

High Accuracy, High Performance and Reliable Measurements

High Accuracy, High Performance and Reliable Measurements

  • 0.02% basic DC accuracy
  • Large display with 50,000 counts
  • Dual display for double indication for AC and DC, V and Hz, etc.
  • True RMS Measurements AC and AC+DC
  • Fast Peak Hold response time of 250µs

Safety design for industrial use

  • Complies with IEC 61010-1 CAT IV 600V, CAT III 1000V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -20 to 55ºC

Reliable support for data management

  • Large data internal memory
    KEW 1061: 1,000 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface
    (Option for USB Communication set)
    * MAX 32,767 data can be transferred.

Specification

Detection modeTrue RMS
DC V50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V])
±0.02%rdg±2dgt (Basic accuracy)
AC V500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V])
±0.7%rdg±30dgt (Basic accuracy)
DCV+ACV5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V])
±1%rdg±10dgt (Basic accuracy)
DC A500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±0.2%rdg±5dgt (Basic accuracy)
AC A500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±1%rdg±20dgt (Basic accuracy)
DCA+ACA500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
±1.5%rdg±10dgt (Basic accuracy)
Ω500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ
±0.1%rdg±2dgt (Basic accuracy)
Continuity buzzer500.0Ω
(The buzzer turns on at resistances lower than 100±50Ω)
Diode test2.4000V
±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy)
Frequency2.000 to 9.999/9.00 to 99.99/90.0 to 999.9Hz/0.900 to 9.999/9.00 to 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
DUTY10 to 90% ±1%rdg
Temperature-200 to 1372ºC
±1%rdg±1.5ºC
-328 to 2501.6ºF
±1%rdg±2.0ºF (with the use of K-type Temperature probe)
Measurement functionsDC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature
Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test
Other functionsData Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG)
Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Applicable standardsIEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2
IEC 61010-031, IEC 61326-1 (EMC)
Power sourceR6/LR6 (1.5V)×4
(Auto power off: approx. 20 minutes)
Dimension192(L)×90(W)×49(D) mm
WeightApprox. 570g (including batteries and blank cover)
Accessories

7220A (Test leads)

8926 (Fuse [440mA/1000V])×1 (included)

8927 (Fuse [10A/1000V])×1 (included)

Batteries

Instruction manual

Blank cover

Optional accessories

7234 (Alligator clip)

8241 (USB Communication set)

8115 (AC/DC Clamp Sensor)

8121 (Load current Clamp Sensor)

8122 (Load current Clamp Sensor)

8123 (Load current Clamp Sensor)

8146 (Leakage & Load current Clamp Sensor)

8147 (Leakage & Load current Clamp Sensor)

8148 (Leakage & Load current Clamp Sensor)

7146 (Banana Ø4 adjuster plug)

8405 (Temperature probe)

8406 (Temperature probe)

8407 (Temperature probe)

8408 (Temperature probe)

9154 (Carrying case)
