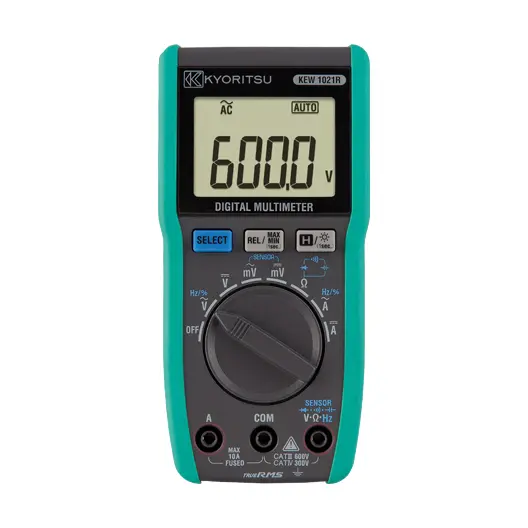

Kyoritsu 1021R Digital Multimeter with True RMS

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DIGITAL MULTIMETER

KEW 1021R

Safety Designed Multimeter

DC V	6.000/60.00/600.0V (Auto-ranging) ±0.5%rdg ±3dgt
DC mV	600.0mV ±1.5%rdg ±3dgt
DC Clamp Sensor	60.00/200.0A (Auto-ranging) ±1.5%rdg ±3dgt + Sensor accuracy
AC V	6.000/60.00/600.0V (Auto-ranging) ±1.0%rdg ±3dgt [40 to 500Hz]
AC mV	600.0mV ±2.0%rdg ±3dgt [40 to 500Hz]
AC Clamp Sensor	60.00/200.0A (Auto-ranging) ±2.0%rdg ±3dgt + Sensor accuracy [40 to 500Hz]
DC A	6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt
AC A	6.000/10.00A (Auto-ranging) ±1.5%rdg ±3dgt[45 to 500Hz]
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging) ±0.5%rdg ±4dgt (600Ω) ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ)
Continuity buzzer	600Ω (Buzzer sounds below 90Ω)
Diode test	Open circuit voltage: < 3.0V
Capacitance	60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF)
Frequency	ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt
DUTY	10.0 to 90.0% ±1.0%rdg ±3dgt [50/60Hz]
Applicable standards	IEC 61010-1 CAT IV 300V / CAT III 600V IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS)
Power source	R03 (1.5V) × 2
Dimension	155(L) × 75(W) × 40(D)mm
Weight	Approx. 250g (including batteries)
Accessories	Wing-type holder Flat-type holder 7066A (Test leads) 8919 (Ceramic fuse [10A/600V]) × 1 (included) 9097 (Carrying case) R03 × 2 Instruction manual
Optional accessories	7234 (Alligator clip) 8161 (AC clamp adaptor) 8115 (AC/DC clamp sensor) 9189 (Magnet hanger strap)
