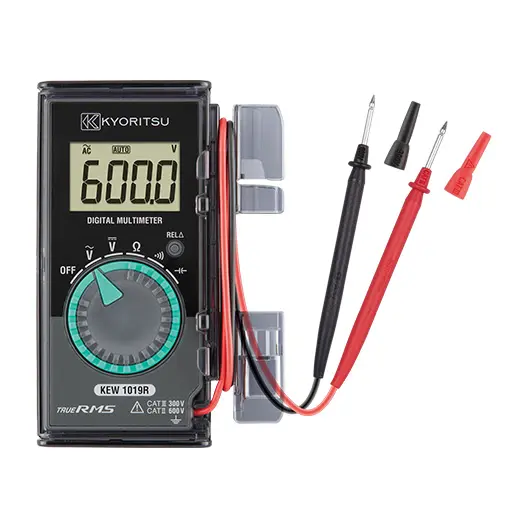

Kyoritsu 1019R Card type DMM with Hard Case with True RMS

This combination does not exist.

Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

DIGITAL MULTIMETER

KEW 1019R

True RMS Measurements

DC V	600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±0.8%rdg ±5dgt (600.0mV/6.000/60.00V) ±1.0%rdg ±5dgt (600.0V)
AC V	6.000/60.00/600.0V (Input impedance: approx. 10MΩ) ±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz) ±1.7%rdg±5dgt (6.000/60.00V) (45 to 500Hz) ±1.6%rdg±5dgt (600.0V) (50/60Hz) ±2.0%rdg±5dgt (600.0V) (45 to 500Hz)
Ω	600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ ±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ) ±2.5%rdg±5dgt (40.00MΩ)
Continuity buzzer	600.0Ω (Buzzer threshold value 60Ω or less)
Capacitance	6.000/60.00/600.0nF/6.000/60.00/600.0µF ±3.5%rdg±50dgt (6.000nF) ±3.5%rdg±10dgt (60.00nF) ±3.5%rdg±5dgt (600.0nF/6.000/60.00µF) ±4.5%rdg±5dgt (600.0µF)
Applicable standards	IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source	CR2032 (3V) × 1 Approx. 120 hours, Auto power save: Approx: 15 minutes
Dimension	126(L) × 85(W) × 18(D)mm
Weight	Approx. 135g (including hard case, battery)
Accessories	9188 (Hard case) CR2032 × 1 Instruction manual

* AC V: CF≦3(50/60Hz) For non-sinusoidal waveforms, add ±0.5%rdg±5dgt, 900Vpeak

Brand

Kyoritsu
