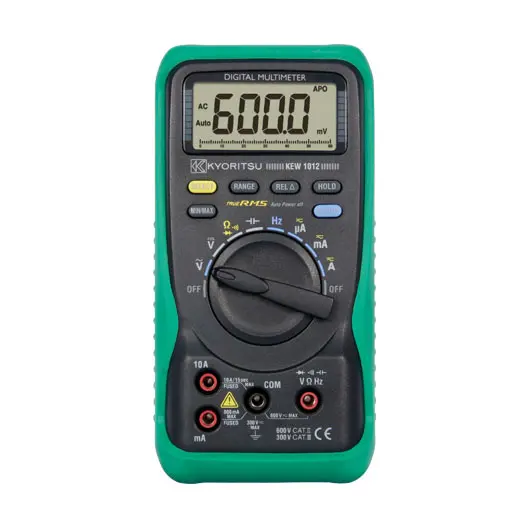

Kyoritsu 1012 Digital Multimeter with True RMS
DIGITAL MULTIMETER
KEW 1012
6040 counts with Bar Graph display
- 6040 counts with Bar Graph display
- MIN/MAX function enables to record min & max value
- REL(relative value) function
- True RMS can measure and indicate distorted waveforms
- DUTY measurement function
Specification
| DC V | 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V) |
| AC V | 6.000/60.00/600.0/600V (Input Impedance: 10MΩ) ±1.5%±5dgt (6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V) |
| DC A | 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A) |
| AC A | 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A) |
| Ω | 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ) |
| Continuity buzzer | 0 to 600Ω (Buzzer sounds below 100Ω) |
| Diode test | 2.8V open circuit voltage: Approx. 0.4mA Test Current |
| Capacitance | 40/400nF/4/40/400/4000µF |
| Frequency | 10/100/1000Hz/10/100/1000kHz/10MHz |
| DUTY | 0.1 to 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (to 10kHz) |
| Applicable standards | IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2 IEC 61010-031 IEC 61326 |
| Display | 6040 Counts |
| Power source | R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes) |
| Dimension | 161(L) × 82(W) × 50(D)mm |
| Weight | Approx. 280g |
| Accessories | 7066A (Test leads) 8918 (Ceramic fuse[0.8A/600V]) × 1 (included) 8919 (Ceramic fuse[10A/600V]) × 1 (included) R6 × 2 Instruction Manual |
| Optional accessories | 7234 (Crocodile clip test lead) 9095 (Carrying case) |
Catalog & Document
| Brand | Kyoritsu |
