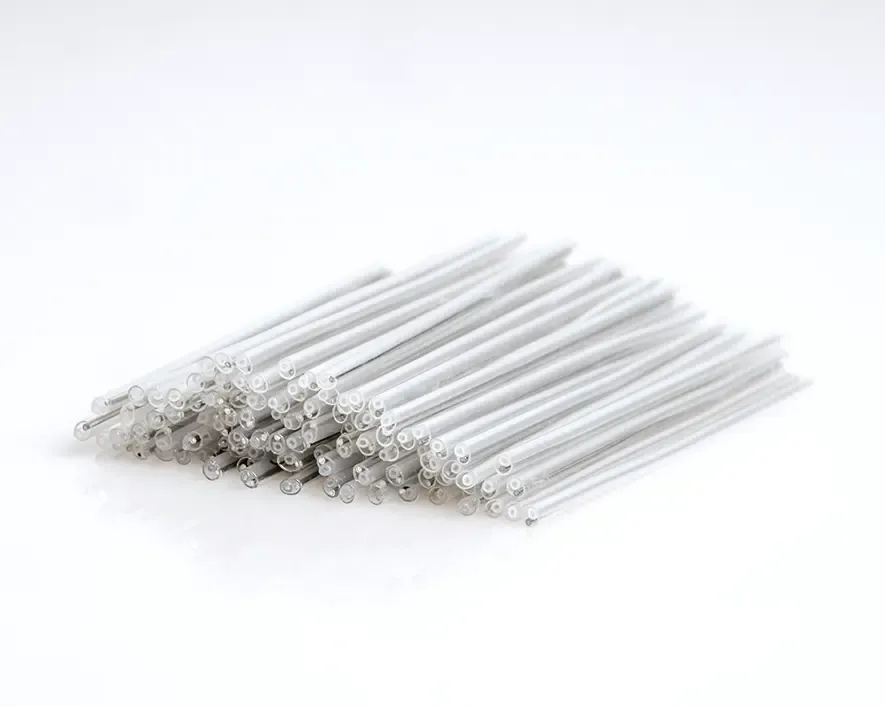

Jonard Fiber Optic Heat Shrink Splice Sleeve, Pack of 100
SKU: FPS-4024/100 | FPS-4512/100 | FPS-6015/100 | FPS-6024/100 | FPS-6026/100 | FPS-6028/100
- Triple-layer design with stainless steel rod provides superior strength and resistance to bending stress
- Heat-activated inner adhesive ensures complete moisture protection and long-term stability
- Shrinks quickly and evenly using any standard fusion splicer heater
FPS-4024/100 | FPS-4512/100 | FPS-6015/100 | FPS-6024/100 | FPS-6026/100 | FPS-6028/100
Fiber Optic Heat Shrink Splice Sleeve, Pack of 100
Details
Jonard Tools' SPARC™ Fiber Protective Sleeves are designed to provide maximum protection and long-term reliability for fusion-spliced fiber optic connections. These high-performance sleeves ensure precise alignment, superior mechanical strength, and complete environmental sealing for each splice. Constructed with a durable outer heat-shrink tube, an inner adhesive layer, and a stainless steel strength member, these sleeves maintain splice integrity while minimizing optical loss. Length and diameter after shrink vary by model; see Available SKUs.
Key Features
- Triple-layer design with stainless steel rod provides superior strength and resistance to bending stress
- Heat-activated inner adhesive ensures complete moisture protection and long-term stability
- Shrinks quickly and evenly using any standard fusion splicer heater
Specifications
- Fiber Size: 900 μm
- Pack Size: 100
- Length: 40 mm, 45 mm or 60 mm; see Available SKUs
- Diameter After Shrink: 1.2 mm to 2.8 mm; see Available SKUs
Additional Information
Available SKUs
| Length | Diameter After Shrink | Pack | Internal Reference | Jonard Model | Weight | UPC |
|---|---|---|---|---|---|---|
| 1.58" (40 mm) | 0.09" (2.4 mm) | Pack of 100 | JON_FPS-4024/100 | FPS-4024/100 | 0.08 lb (36.32 g) | 810132439698 |
| 1.77" (45 mm) | 0.045" (1.2 mm) | Pack of 100 | JON_FPS-4512/100 | FPS-4512/100 | 0.03 lb (13.62 g) | 810132439803 |
| 2.4" (60 mm) | 0.06" (1.5 mm) | Pack of 100 | JON_FPS-6015/100 | FPS-6015/100 | 0.04 lb (18.16 g) | 810132439704 |
| 2.4" (60 mm) | 0.094" (2.4 mm) | Pack of 100 | JON_FPS-6024/100 | FPS-6024/100 | 0.12 lb (54.48 g) | 810132439797 |
| 2.4" (60 mm) | 0.10" (2.6 mm) | Pack of 100 | JON_FPS-6026/100 | FPS-6026/100 | Not confirmed | 810132439810 |
| 2.4" (60 mm) | 0.11" (2.8 mm) | Pack of 100 | JON_FPS-6028/100 | FPS-6028/100 | 0.15 lb (68.1 g) | 810132439735 |
| Brands | |
|---|---|
| Brand | Jonard Tools |
| Size | |
| Size | 40 mm x 2.4 mm or 45 mm x 1.2 mm or 60 mm x 1.5 mm or 60 mm x 2.4 mm or 60 mm x 2.6 mm or 60 mm x 2.8 mm |
