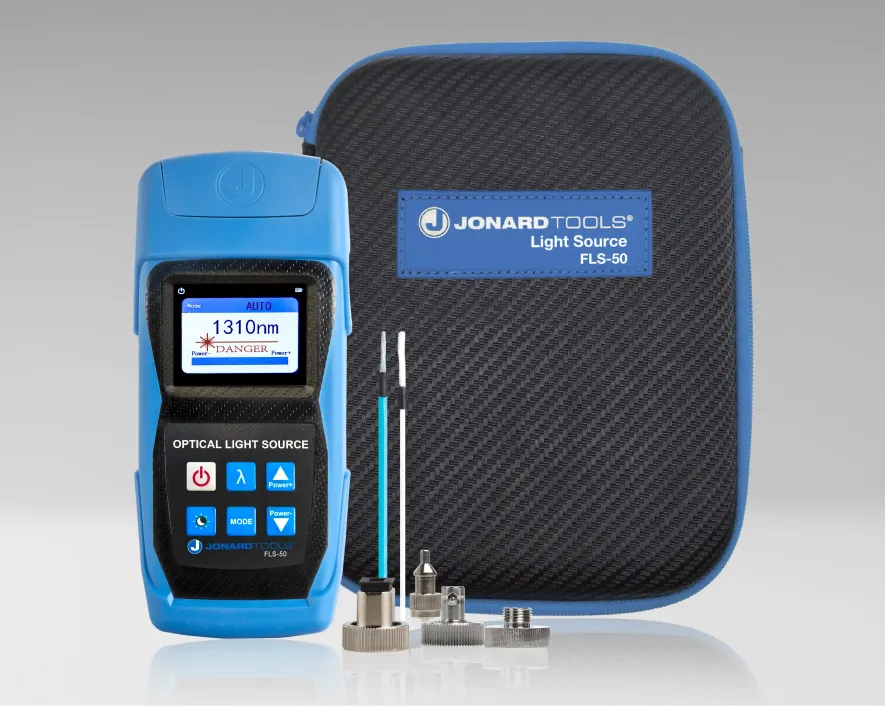

Jonard Tools Mini Optical Light Source with FC/LC/SC Adapters for PC/UPC Connectors (FLS-50S)

https://www.etisupply.com/web/image/product.template/1200235/image_1920?unique=b3efdf3

SKU: FLS-50S

  • Highly stable output power and wavelengths
  • Four modulation outputs at 1310 nm and 1550 nm wavelengths
  • Intelligent backlight control reduces power consumption
  • Auto-off function can be turned on or off
  • Automatic wavelength detection function

$ 261.95 261.95 USD $ 261.95

Not Available For Sale

($ 0.00 / Units)
  • Brand

This combination does not exist.

Jonard Tools
Contact Us
Jonard Tools


Terms and Conditions
Product images shown are for illustration purposes only and may not be an exact representation of the product.

FLS-50S

Optical Light Source with SC/ST/FC/FC-LC Adapters for PC/UPC Connectors

Includes: Fiber Optic Light Source Instruction Manual (3) AA Batteries (required for operation) (2) Cleaning Swabs Protective Carrying Case FC/UPC Adapter SC/UPC Adapter ST/UPC Adapter FC-LC/UPC Adapter (Singlemode Only) Highly stable output power and wavelengths Four modulation outputs at 1310 nm and 1550 nm wavelengths Intelligent backlight control reduces power consumption Auto-off function can be turned on or off Automatic wavelength detection function

Specifications

  • Wavelength (nm): 1310/1550 ±20
  • Spectral Width (nm): ≤5
  • Typical Output (dBm): -7
  • Stability (dB, 15 min): ≤0.05
  • Typical Output Power Adjustable Range (dB): -5 ~ -12
  • Modulation Frequency (Hz): CW, 270, 330, 1K, 2K
  • Interface Type: FC/SC/ST/FC-LC (UPC)
  • Display Size: 2.4-inch LCD
  • Power Supply: 1.5V* 3 AA alkaline batteries
  • Auto-off (min): 10
  • Continuous Working Hours (hr): ≥25
  • Operating Temperature (°C): -10 ~ +60
  • Storage Temperature (°C): -25 ~ +70
  • Dimensions: 9 in x 7 in x 3 in (22.86 cm x 17.78 cm x 7.62 cm)
  • Weight: 0.64 lb (0.291 kg)
  • UPC #: 811490018655
  • Fiber Type: Single-mode

Additional Information


Brand Jonard Tools
