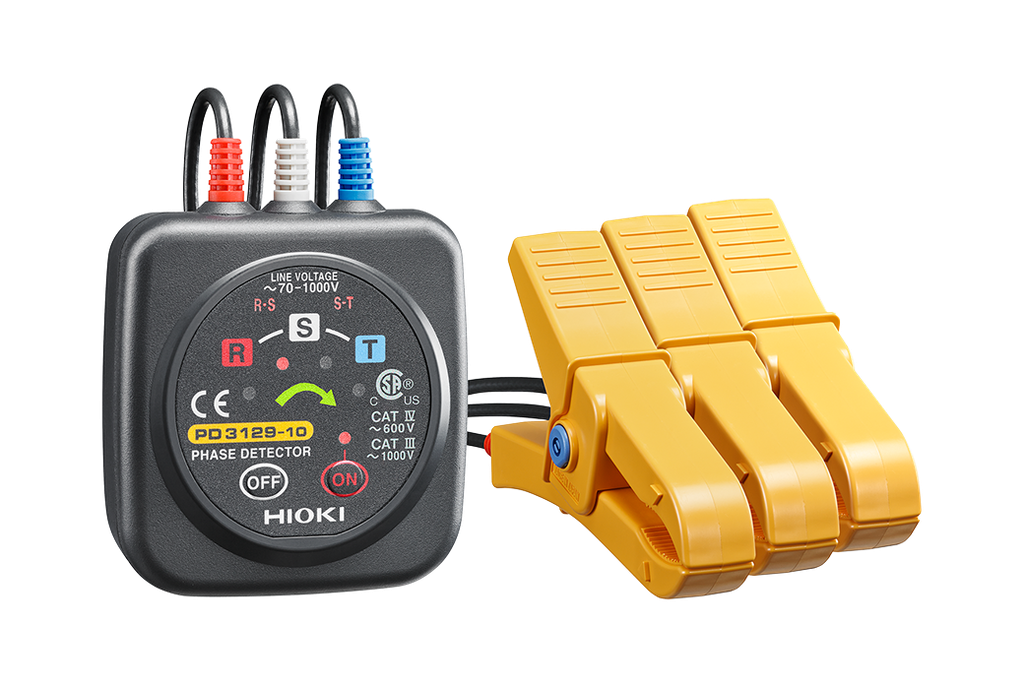

Hioki PD3129-10 Non Contact Phase Rotation Meter (Large Jaws)

Phase Rotation Meter with Easy-to-Read Arrow and Non-Metallic Contact Clips for 70 V to 1000 V Lines

Specifications

• Functions: Phase detection (positive and negative)
• Voltage detection method: Static induction
• Voltage range: 70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)
• Frequency range: 45 Hz to 66 Hz
• Object to be connected: 7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring
• Display: Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
• Battery check function: Power ON lamp: lights up (Power ON), blinks (Battery LOW)
• Auto power off: Auto shut off if no activity is detected after power is turned ON for 15 minutes
• Power supply: AA alkaline battery(LR6) x 2, Continuous use: 200 hr
• Dimensions and mass: 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 240 g (8.5 oz), Cord length : 0.7 m (2.30 ft)
• Included accessories: Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, AA alkaline battery(LR6) x 2
• Weight: 0.53 lb (0.24 kg)
