Burndy YGHC29C26 Compression Grounding C-TAP Connector 3/0 Comp Ground Tap Copper

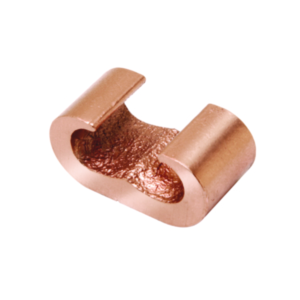

YGHC29C26 Compression Grounding C-TAP Connector

Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 6 AWG(Sol) - 2/0 AWG(Str) (Tap).

Features: Irreversible Compression Ground Tap Figure C Connectors, Accommodates All Cable Combinations From #6 AWG Solid Through 500 KCMIL, C- Shaped Opening Permits Placing Two Continuous Parallel Cables Into Conductor Groove, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Certain Sizes Are Also UL467 Listed And CSA Certified For Wire To Ground Rod, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), Die Index: 997 Element A, Conductor Size (tap - Mm): 10 - 70 SQ-MM, Ground Rod Size: 1/2 - 5/8 IN, Conductor Size (run - Mm): 95 - 120 SQ-MM, Conductor Type: Run: Commercial Stranded Copper, Metric Copper, Tap: Commercial Stranded Copper, Metric Copper, Shape: C, Conductor Size (tap Range): 6 - 2/0 AWG, Conductor Size (run - Range): 3/0 AWG - 250 KCMIL

Product details

General

ApplicationFor Direct Burial CablesCatalog NumberYGHC29C26Connector TypeTapDie Index997EU RoHS IndicatorYesMaterialCopperPhysical Attribute - Number of Crimps Required1PlatedNPlating TypeUnplatedSub BrandHYGROUND, HYTAPTrade NameHYTAP™TypeTapsUPC781810221044UPC 12 Digit7818102210444

Dimensions

Dimension - B Length fraction0.75 inDimension - B Length inch0.75 inDimension - Height fraction1-32/33 inDimension - Height inch1.97 inDimension - L Length Overall mm19 mmDimension - Length Overall inch0.75 in

Conductor Related

Conductor - Copper Solid Tap6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWGConductor - Copper Solid Tap Range6 AWG-3/0 AWGConductor - Copper Str Run3/0 AWG;4/0 AWG;250 kcmilConductor - Copper Str Run Range3/0 AWG-250 kcmilConductor - Copper Str Tap7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWGConductor - Copper Str Tap Range7 AWG-2/0 AWGConductor - Rod Run1/2 in;5/8 inConductor - Rod Run Range1/2 in-5/8 in

Certifications And Compliance

Certification - CSA ApprovedYesCertification - cULusNoCertification - ETLNoCertification - UL Listed Direct BurialYesCertification - UL RecognizedNoIndustry Standard(s)Direct BurialStandards - Industry Standards MetUL467;IEEE 837;UL468A-468BStandards - RoHS Compliance StatusCMUL ListedYes

Logistics

Carton Quantity50Minimum Pack Quantity1Pallet Quantity9250

Specifications

YGHC29C26 Specification Sheet
