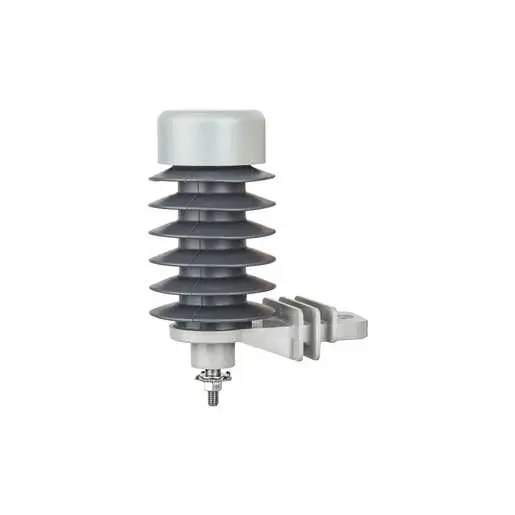

PVR Optima (29 kV MCOV, 7314 Hardware)

Brand: OHIO BRASS

Catalog ID: 2216297314

IEEE Riser Pole Class Polymer Housed Surge Arrester

High quality distribution surge arresters backed by more than 35 years of excellent field exposure

• Over 35 years of excellent field performance with over 40 million distribution arresters installed
• Long lasting ESPTM housing material with superior mechanical strength and electrical characteristics
• Reliable capacitive disconnector operates at fault currents as low as 1 Amp
• Dynamic triple sealing system protects internal components from moisture ingress to extend service lifetime
• High quality MOV discs made in Wadsworth, Ohio since 1978
• Arresters assembled in Aiken, South Carolina
• 100% routine tested

Product details

General

• Application: Distribution
• Bracket Type: None
• Cantilever Bending Strength - Max.: 135 Nm
• Catalog Number: 2216297314
• Color: Gray Housing
• EU RoHS Indicator: Contact Manufacturer
• Material: ESP™ Polymer Housing
• Mounting Position: Upright
• Type: Distribution
• UPC: 096359418917

Dimensions

• Dimensions: 22.000 in x 14.000 in x 7.000 in
• Height: 7 in
• Length: 22 in
• Minimum Mounting Spacing on Center (Sea Level) - Phase to: 14.0 in (355.6 mm)
• Minimum Mounting Spacing on Center (Sea Level)- Phase to Phase: 16.0 in (406.4 mm)
• Stud Type: 3/8-16
• Weight: 4.6 lb
• Width: 14 in

Electrical Ratings

• Creep and Leakage Distance: 52 in (1321 mm)
• Current - Low Current Long Duration (LCLD) Test: 250 A
• Duty Cycle: 36 kV
• Frequency Rating: 48-62 Hz
• Maximum .5 Microsecond Discharge Volts @ Classifying Current: 107.2 kV
• Maximum Discharge Voltage
• • 82.2 kV @ 1.5 kA
  • 85.6 kV @ 3 kA
  • 89.2 kV @ 5 kA
  • 96.1 kV @ 10 kA
  • 106.2 kV @ 20 kA
  • 123 kV @ 40 kA
• Maximum Switching Surge Protective Level @ 500A: 70.7 kV
• MCOV: 29 kV
• Minimum Strike: 18 in
• Pressure Relief Capability-Symmetrical rms (kA): 20
• Time - Low Current Long Duration (LCLD) Test: 2000 µs
• Withstand Voltage - 60 Hz Wet: 76.4
• Withstand Voltage - Lightning Impulse: 180.3

Logistics

• Pallet Quantity: 35
