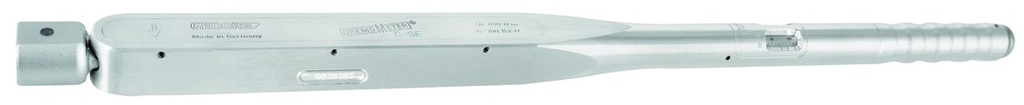

Torque wrench DREMOMETER C-SE 14x18 80-400 Nm / 60-300 ft-lb

8482-01

Code no.: 7714220 EAN: 4002805848210

Product description

  • Use: Controlled screw tightening in the range of 80-400 Nm / 60-300 lbf·ft
  • Type: Adjustable, releasing torque wrench with rectangular cavity for industry and the trades

Features

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3% tolerance of scale set torque. The specification of the standard (+/- 4%) is exceeded.
  • Lightweight yet robust (housing manufactured from one piece of aluminium alloy) and workshop-friendly
  • For controlled bi-directional tightening
  • Tool holder offers a comprehensive range of accessories
  • Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
  • Actuate only at the middle of the handle — do not use an extension tube

Dimensions and weights

  • Total length: 641–653 mm
  • Width: 35 mm
  • Weight: 1.70 kg

Scope of delivery

  • Contents (Qty of pieces): 1

Technical characteristics

  • Drive type/drive: Rectangular cavity (C-SE)
  • Drive connector rectangular: 14 x 18 mm
  • Tightening direction: Left and right
  • Trigger mechanism: Short path triggering
  • Torque (max.): 300 lbf·ft / 400 Nm
  • Torque (min.): 60 lbf·ft / 80 Nm
  • Torque wrench function: Triggering
  • Lever length drive side: 53 mm
  • Lever length handle side: 588 mm
  • Calibration length: 582 mm
  • Distance housing - drive: 16.5 mm
  • Depth gauge: 25.0 mm
  • Material: Aluminium alloy
  • Precision: +/- 3%
  • Test certificate: DIN EN ISO 6789-2:2017
  • Graduation: 5 lbf·ft
  • Scale division: 5 Nm

Note: Technical changes and errors reserved.
